RY 404015 VNM (108727001) - Ryobi 40V Blower Vacuum, Rev 01 (2022-06) FIGURE A Parts Diagram

40V Blower Vacuum, Rev 01

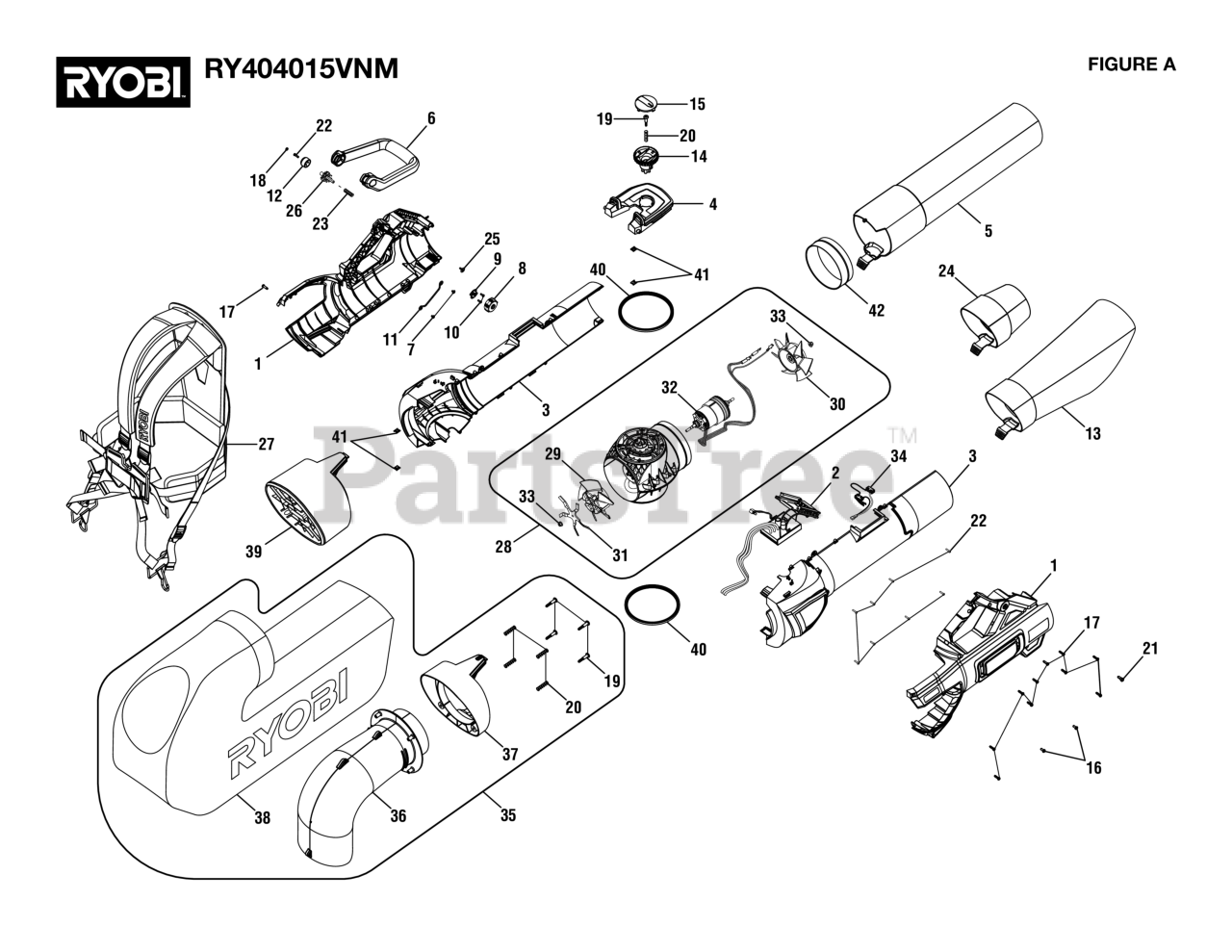

FIGURE A Parts Diagram

  • Title

1

Homelite 205155002

Handle Housing Assembly (Inc. Labels)

$63.99

$

Usually ships in 3-7 days

0

2

Homelite 281335025

Motor Contoller & Battery Foot Assembly

$261.99

$

Usually ships in 0 days

0

3

Homelite 205416002

Ball Cover Assembly

$32.99

$

Usually ships in 3-7 days

0

4

Homelite 205155003

Strap Housing Assembly (Inc. Labels)

$10.99

$

Usually ships in 3-7 days

0

5

Homelite 205108003

Tube Assembly

$23.99

$

Usually ships in 3-7 days

0

6

Homelite 546403001

Support Handle

$24.99

$

Usually ships in 3-7 days

0

7

Homelite 660290004

Screw (M3 x 5 mm)

$

$

Currently unavailable

8

Homelite 546405001

Speed Dial

$

$

Currently unavailable

9

Homelite 546406001

Switch Plate

$

$

Currently unavailable

10

Homelite 660230018

Screw (M3 x 8 mm, Torx T10)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 683432001

Grounding Strap

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 546404001

Hinge Knob

$

$

Currently unavailable

13

Homelite 546400001

Vacuum Nozzle

$14.99

$

Usually ships in 3-7 days

0

14

Homelite 546407001

Rotating Knob

$

$

Currently unavailable

15

Homelite 546453001

Rotating Knob Cap

$

$

Currently unavailable

16

Homelite 660925002

Screw (M4 x 9 mm)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

18

Homelite 528521001

Tamper Indicator Plug

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 660723001

Screw (M5 x 27 mm)

$

$

Not available

20

Homelite 679055009

Spring,Handle Cover, Dia. 7, SWC

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 662113001

Screw (M5 x 15 mm, T25 Torx Hd.)

$

$

Currently unavailable

22

Homelite 660203087

Screw (M3 x 12 mm)

$

$

Not available

23

Homelite 679055008

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 547047001

Blower Nozzle

$5.49

$

Usually ships in 3-7 days

0

25

Homelite 662240001

ST SCREW,STEEL CH M3.0X1.058 PWH PHILIP

$

$

Not available

26

Homelite 546452001

Hinge Knob Cap

$

$

Currently unavailable

27

Homelite 316123003

Shoulder Harness

$89.99

$

Usually ships in 3-7 days

0

28

Homelite 319130001

Ball Assembly

Note: (Inc. Key Nos. 29-33)

$

$

Currently unavailable

29

Homelite 546415001

Fan (Stage 1)

$20.99

$

Usually ships in 3-7 days

0

30

Homelite 545618001

Fan (Stage 2)

$20.99

$

Usually ships in 3-7 days

0

31

Homelite 682674001

Mulching Blade

$21.99

$

Usually ships in 3-7 days

0

32

Homelite 742833002

Motor

$

$

Currently unavailable

33

Homelite 678774007

Flange Lock Nut (M5 x 0.8 in.)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 292462001

Safety Switch And Wires Assembly

$15.99

$

Usually ships in 3-7 days

0

35

Homelite 319406001

Vac Attachment Assembly

Note: (Inc. Key Nos. 19-20 and 36-38)

$

$

Currently unavailable

36

Homelite 319383001

Leaf Exit Tube

$30.99

$

Usually ships in 3-7 days

0

37

Homelite 546411001

Vacuum Bag Holder

$21.99

$

Usually ships in 3-7 days

0

38

Homelite 904187001

Vac Bag

$73.99

$

Usually ships in 3-7 days

0

39

Homelite 319407001

Blower Attachment Assembly

$

$

Currently unavailable

40

Homelite 546573001

O-Ring

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 631542003

Housing Connection Clip

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 546572001

Ring

$4.49

$

Usually ships in 3-7 days

0

Homelite 998000968

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
