RY 40204 (107283001) - Ryobi 40V String Trimmer, Rev 03 (2019-05) General Assembly Parts Diagram

40V String Trimmer, Rev 03

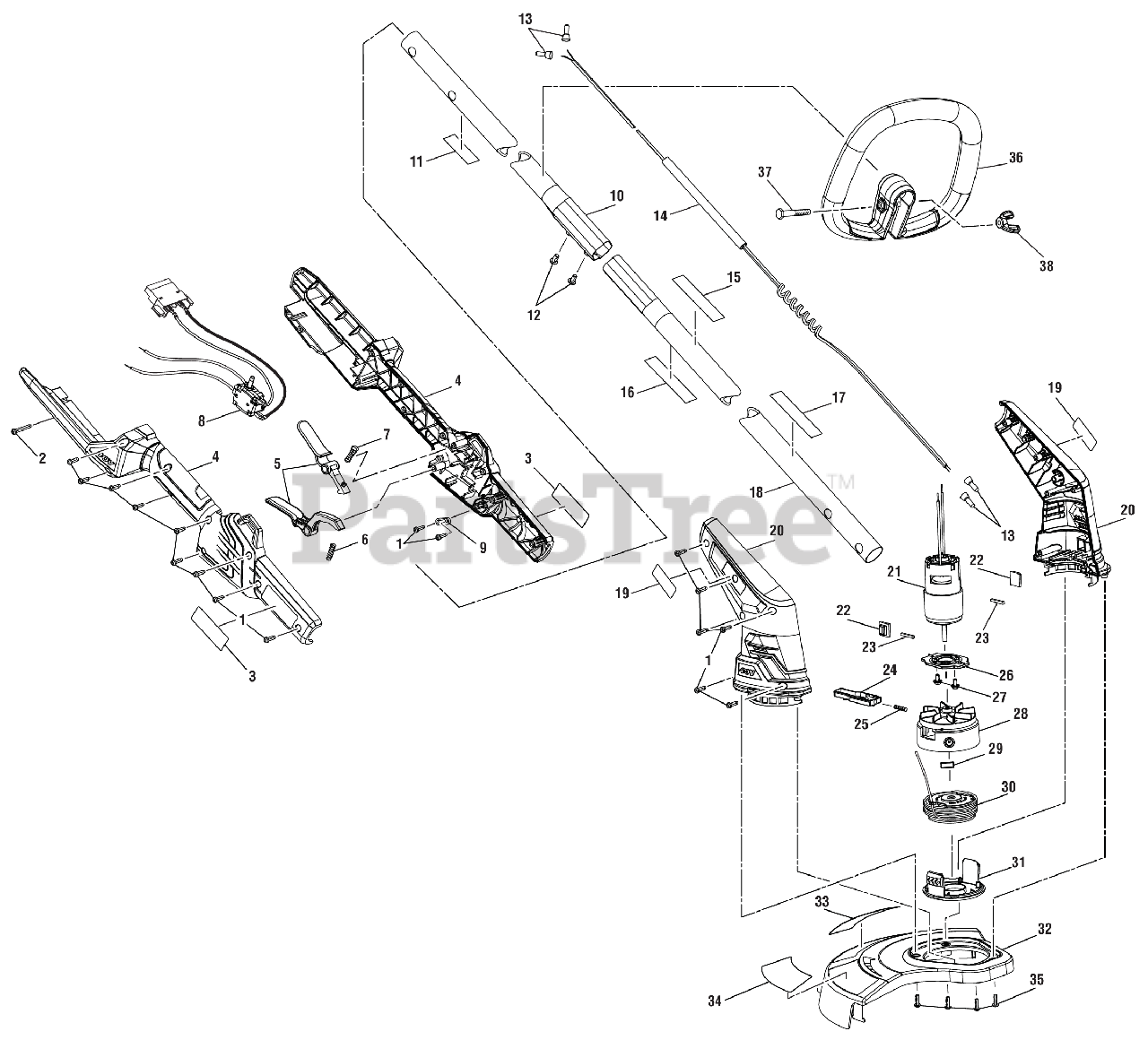

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

2

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

3

Homelite 940304497

Logo Label

$1.64

$

Usually ships in 3-7 days

0

4

Homelite 204003001

Handle Housing Assembly, ABS

Note: (Incl. Key No. 3)

$25.99

$

Usually ships in 3-7 days

0

5

Homelite 204007001

Trigger Assembly, POM

$5.49

$

In Stock, only 1 left!

0

6

Homelite 679973001

Compression Spring (Trigger)

$1.99

$

In Stock, Qty 5

0

7

Homelite 679973002

Compression Spring (Trigger)

$1.99

$

In Stock, only 3 left!

0

8

Homelite 204008001

Wiring Harness

$40.99

$

In Stock, only 1 left!

0

9

Homelite 523001001

Strain Relief Plate

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 204005001

Upper Tube w/ Labels, Low Carbon Steel

Note: (Inc. Key No. 11)

$6.49

$

Usually ships in 3-7 days

0

11

Homelite 941588125

Label, Data

$

$

Not available

12

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

13

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 291631001

Spring Wire, 18 AWG 300V

$10.99

$

Usually ships in 3-7 days

0

15

Homelite 941657185

Warning Icon Label
(Superseded to 940657185)

$

$

Not available

16

Homelite 940006271

Warning Label (Upper End)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 940705329

Label, Logo, Shaft

$

$

Not available

18

Homelite 204006001

Lower Tube w/ Labels, Low Carbon Steel

Note: (Inc. Key Nos. 15-17)

$17.99

$

Usually ships in 3-7 days

0

19

Homelite 940705330

Label, Logo, Motor Housing

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 204002001

Motor Housing Assembly, ABS

Note: (Inc. Key No. 19)

$13.99

$

Usually ships in 3-7 days

0

21

Homelite 742225001

Motor, 40V 11500 RPM

$74.99

$

Usually ships in 3-7 days

0

22

Homelite 564045001

Rubber Plate, EPDM

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 562079002

Rubber Plate (Motor Plate)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 310920001

Slider Assembly

$6.49

$

In Stock, only 2 left!

0

25

Homelite 679034001

Compression Spring (Internal Tooth)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 531159001

Mounting Plate, PA66

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 661861001

Screw w/Washer (M4 x 8 mm)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 524851002

Spool Base w/Fan

$5.99

$

In Stock, only 2 left!

0

29

Homelite 639154001

BALANCE PLATE

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 310917003

Spool w/ Line Assembly
(Superseded to 310917007)

$6.99

$

In Stock, only 3 left!

0

31

Homelite 522994001

Spool Cap (AC14HCA)

$1.99

$

In Stock, Qty 14

0

32

Homelite 204001001

Guard Assembly, PP

Note: (Inc. Key Nos. 33-35)

$14.99

$

Usually ships in 3-7 days

0

33

Homelite 941606001

Adjustable Cutting Width Label

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 940851152

Auto-Feed Label

$

$

Currently unavailable

35

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

36

Homelite 526764001

Front Handle

$10.99

$

In Stock, only 1 left!

0

37

Homelite 660643008

Screw (1/4-20 x 40 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

Homelite 991000846

Operator's Manual, RY40204

Note: Not Shown

$

$

Not available
