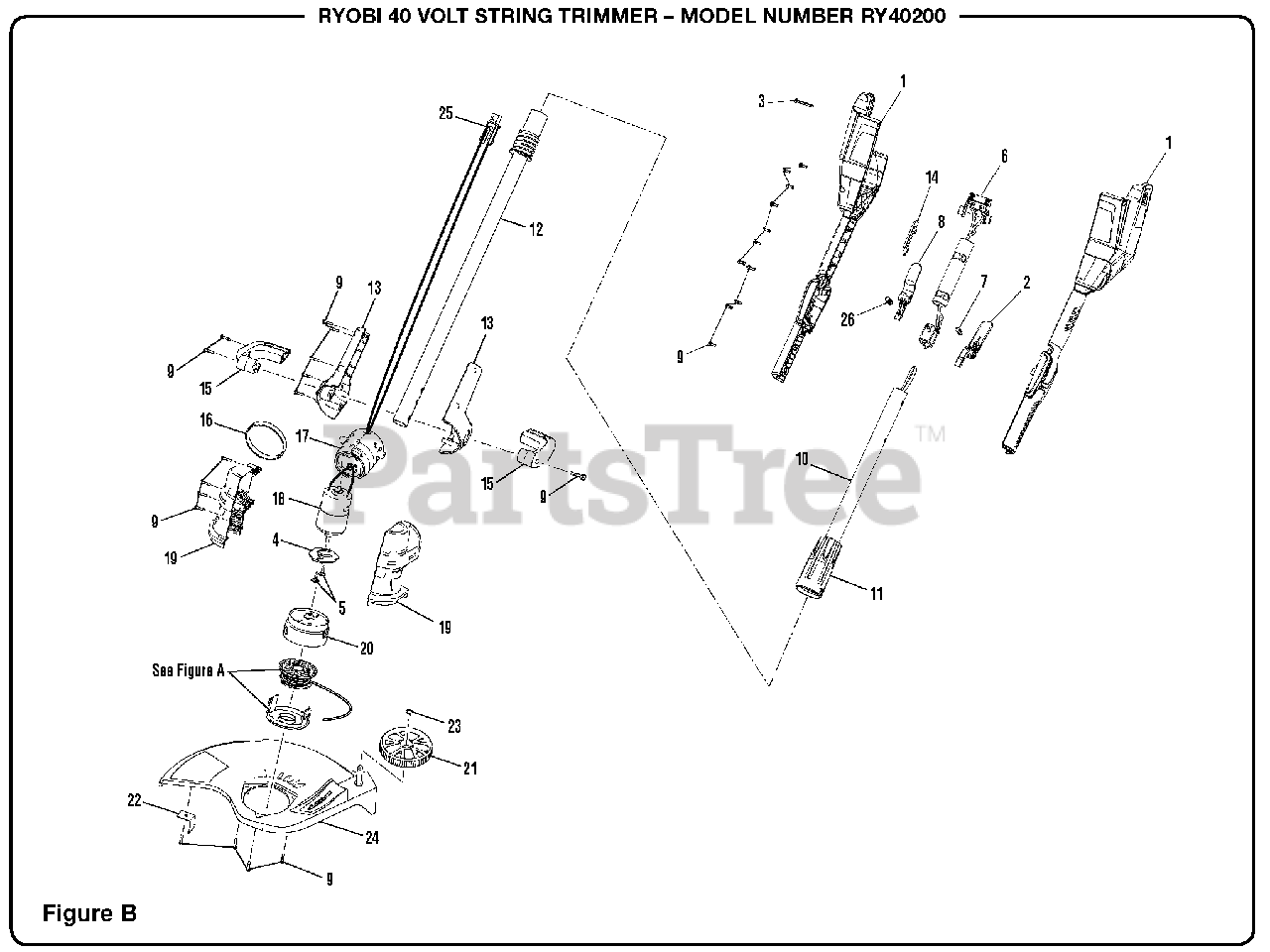

RY 40200 - Ryobi 40V String Trimmer Figure B Parts Diagram

40V String Trimmer

Figure B Parts Diagram

  • Title

1

Homelite 099967002003

40V Power Head Assembly

$

$

Not available

2

Homelite 099967002009

Adjustable Front Handle

$

$

Not available

3

Homelite 099967002002

Screw (M4 x 30 mm)

$

$

Not available

4

Homelite 34106517G

Motor Mounting Plate

$

$

Not available

5

Homelite 32200517G

Screw w/Washer

$

$

Not available

6

Homelite 099967002007

Data Label (Upper Boom)

$

$

Not available

7

Homelite 099967002008

Compression Spring

$

$

Not available

8

Homelite 099967002006

Lock-Out Button

$

$

Not available

9

Homelite 32201517G

Grass Deflector Assembly

$

$

Not available

10

Homelite 31105715G

Warning Icon Label (Power Head)

$

$

Not available

11

Homelite 34113508-1G

Slider Assembly

$

$

Not available

12

Homelite 31106517G

Lower Boom Assembly (Inc. Key No. 25)

$

$

Not available

13

Homelite 31303517G

Warning Icon Label (Boom)

$

$

Not available

14

Homelite 099967002004

Shoulder Strap Hook

$

$

Not available

15

Homelite 31106715G

Boom Warning Label

$

$

Not available

16

Homelite 34105517G

Coupler Ring
(Superseded to 522923001)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 31100339G

Pivot Assembly

$

$

Not available

18

Homelite 31103715G

Rotation Arrow Label
(Superseded to 741921002)

$92.99

$

Usually ships in 3-7 days

0

19

Homelite 31305517G

Compression Spring

$

$

Not available

20

Homelite 31101345G

Charger

$

$

Not available

21

Homelite 34109517G

Battery

$1.99

$

In Stock, only 1 left!

0

22

Homelite 33304517G

Operator's Manual

$

$

Not available

23

Homelite 32901131G

Retaining Ring

$

$

Not available

24

Homelite 34108517G

Guard

$

$

Not available

25

Homelite 31109517G

Male Plug

$

$

Not available

26

Homelite 099967002005

Spring

$

$

Not available
