RY 40109 (107299013) - Ryobi 20" 40V Walk-Behind Mower (2019-08) FIGURE B Parts Diagram

20" 40V Walk-Behind Mower

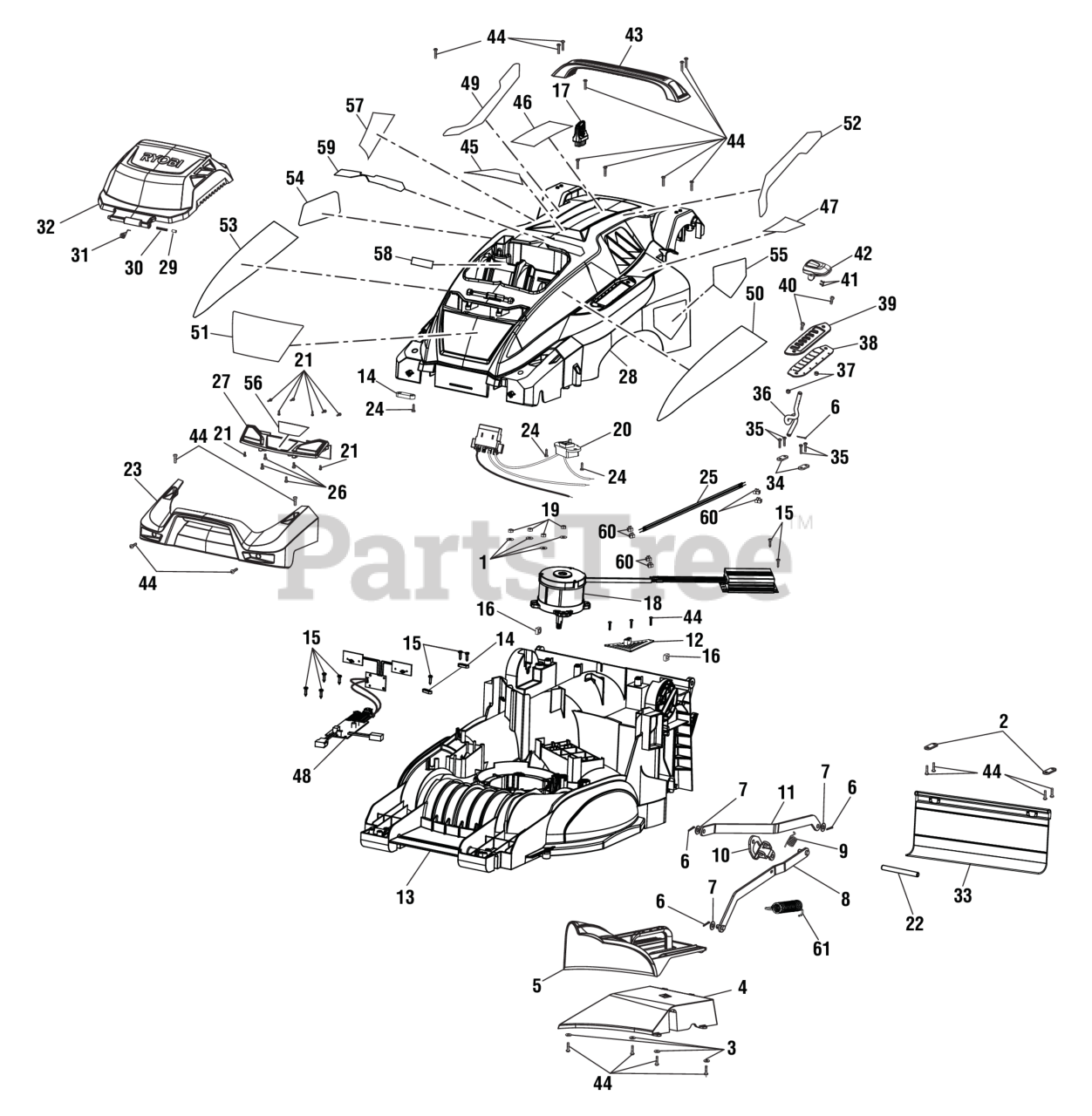

FIGURE B Parts Diagram

  • Title

1

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 639116003

Axle Pressure Plate

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 636062001

Washer (ID4.5 x OD10 x 1t)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 527548003

Baffle

$9.49

$

Usually ships in 3-7 days

0

5

Homelite 527556002

Mulching Plug
(Superseded to 527556001)

$

$

Not available

6

Homelite 678279004

Cotter PinÏ? (2.5)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 635378005

Front Lift Rod

$5.99

$

Usually ships in 3-7 days

0

9

Homelite 679992001

Torsion Spring (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 639203003

Height Adjustment Bracket

$7.99

$

In Stock, only 1 left!

0

11

Homelite 635379005

Rear Lift Rod

$27.99

$

Usually ships in 3-7 days

0

12

Homelite 532556001

Transmission Cover

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 532184004

Deck

$117.99

$

Usually ships in 3-7 days

0

14

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$1.99

$

Usually ships in 3-7 days

0

16

Homelite T662406001

Square Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 311280001

Start Key

$7.49

$

Usually ships in 3-7 days

0

18

Homelite 312922010

Motor and Controller Assembly

$

$

Not available

19

Homelite 680196006

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 120722005

Contact Plate Holder Assembly

$20.99

$

Usually ships in 3-7 days

0

21

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 639122001

Axle (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 529372001

Front Bumper

$10.99

$

Usually ships in 3-7 days

0

24

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

25

Homelite 291754001

Inner Wire Connector

$6.99

$

Usually ships in 3-7 days

0

26

Homelite 661189002

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

27

Homelite 205057001

Light Assembly w/Label

$9.49

$

Usually ships in 3-7 days

0

28

Homelite 120972001

Deck Cover Assembly (Inc. Key Nos. 45-47, 49-55 & 57-59)

$63.99

$

Usually ships in 3-7 days

0

29

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

30

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

31

Homelite 679074002

Battery Cover Spring

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 529259001

Battery Cover

$

$

Not available

33

Homelite 527549004

NLA(NO LONGER AVAILABLE)
(Superseded to 534779001)

$20.99

$

Usually ships in 3-7 days

0

34

Homelite 639125002

Pressure Plate (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

36

Homelite 637031003

Lever Arm

$4.99

$

Usually ships in 3-7 days

0

37

Homelite 678509001

Lock Nut (M5 x 0.8 mm)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 563454001

Shifter Boot

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 635382001

Height Adjustment Plate

$5.49

$

Usually ships in 3-7 days

0

40

Homelite 660713001

SCREW (M5 x 16 mm SOC. WASHER HD. CAP)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 664021001

Screw (M3 x 9 mm, Flat Hd.)

$

$

Not available

42

Homelite 529656003

Height Adjustment Handle

$2.99

$

Usually ships in 3-7 days

0

43

Homelite 529258001

Carrying Handle

$3.99

$

Usually ships in 3-7 days

0

44

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 6

0

45

Homelite 941107020

Danger/Warning Icon Label (English)
(Superseded to 940657193)

$

$

Not available

46

Homelite 941107021

Bilingual Danger (French/Spanish) & Trilingual Warning (English/French/Spanish) Label
(Superseded to 940657193)

$

$

Not available

47

Homelite 941843004

Height Adjustment Label

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 280582001

Circuit Board w/LED Assembly

$

$

Not available

49

Homelite 941705009

Stripe Label (Right)

$3.99

$

Usually ships in 3-7 days

0

50

Homelite 941705007

Brushless Label (Left)

$3.99

$

Usually ships in 3-7 days

0

51

Homelite 941705004

40V Self Propelled Logo Label

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 941705008

Stripe Label (Left)

$3.99

$

Usually ships in 3-7 days

0

53

Homelite 941705006

Brushless Label (Right)

$3.99

$

Usually ships in 3-7 days

0

54

Homelite 941021020

Data Label

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

56

Homelite 940851129

LED Headlight Label

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 941842015

40V Lithium Label

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 941843005

On Board Battery Storage Label

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 941107015

Start Key Label

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 900876003

Terminal Block w/Screw

$1.99

$

Usually ships in 3-7 days

0

61

Homelite 694052001

Rentention Spring

$3.49

$

Usually ships in 3-7 days

0
