RY 40109 (107299013) - Ryobi 20" 40V Walk-Behind Mower (2019-08) FIGURE A Parts Diagram

20" 40V Walk-Behind Mower

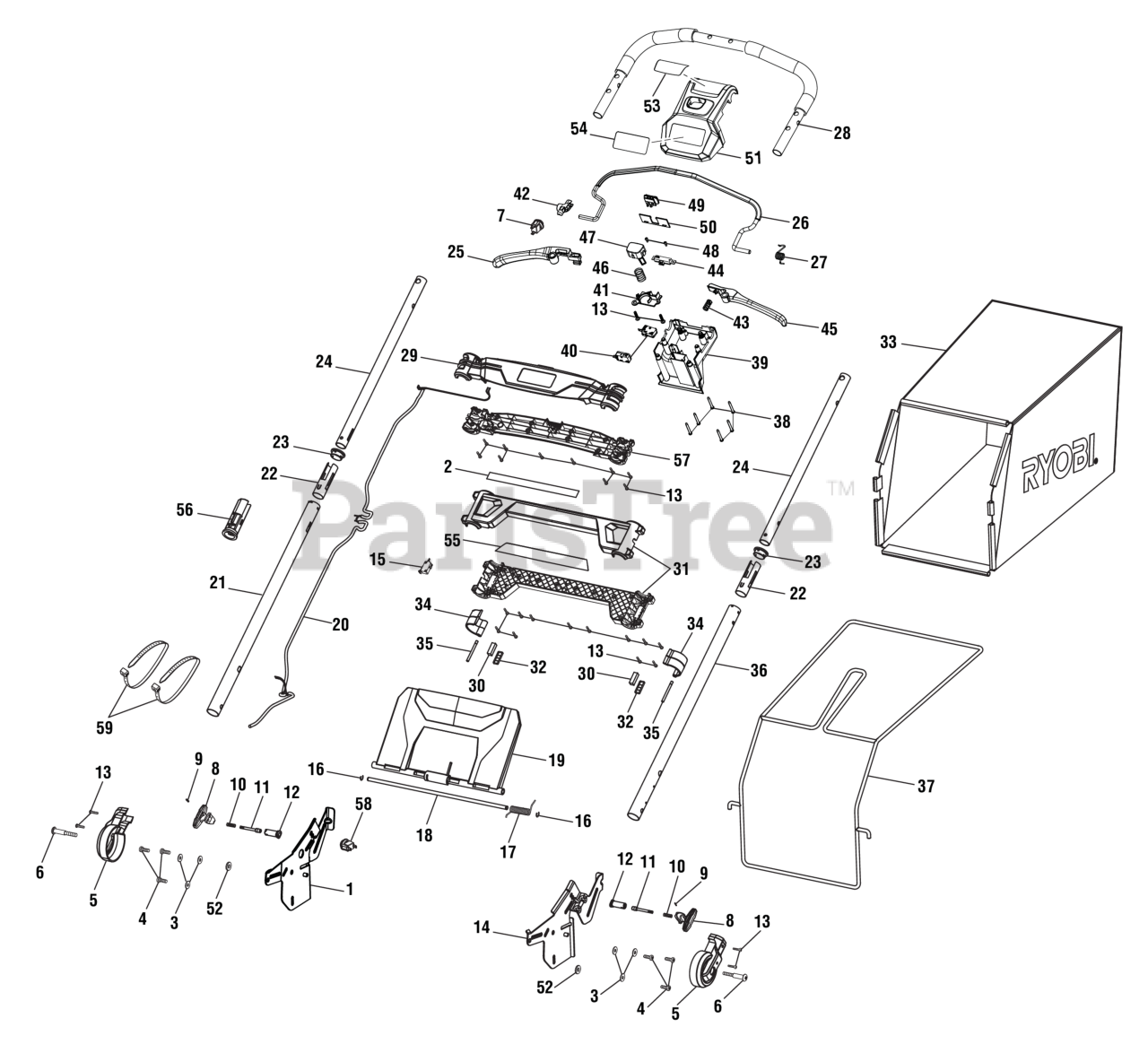

FIGURE A Parts Diagram

  • Title

1

Homelite 637605003

Height Adjustment Bracket (Right)

$

$

Not available

2

Homelite 940851198

Extended Handle Label

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

4

Homelite 664004003

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 529260001

Hinge Cover

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 662324001

Shoulder Screw (M8 x 60 mm, T40 Torx Hd.)

$2.99

$

In Stock, Qty 5

0

7

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

8

Homelite 528361003

Adjustment Knob (Spring Pin)

$1.99

$

In Stock, only 4 left!

0

9

Homelite 673441001

Spring Pin

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 694490001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 673438001

Detent Pin

$2.49

$

In Stock, Qty 6

0

12

Homelite 642586001

Spring Pin Housing

$3.49

$

In Stock, Qty 7

0

13

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

14

Homelite 636779003

Height Adjustment Bracket (Left)
(Superseded to 636779002)

$

$

Not available

15

Homelite 760551002

Switch

$4.49

$

In Stock, only 2 left!

0

16

Homelite 670704001

RETAINING RING (EXTERNAL)

$1.99

$

In Stock, only 2 left!

0

17

Homelite 679076002

Torsion Spring (Rear Door)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 635469002

Rear Door Axle

$4.49

$

Usually ships in 3-7 days

0

19

Homelite 527478002

Rear Discharge Door

$7.99

$

Usually ships in 3-7 days

0

20

Homelite 291719002

Wiring Harness

$24.99

$

Usually ships in 3-7 days

0

21

Homelite 695001001

Lower Handle Tube (Right)

$10.99

$

Usually ships in 3-7 days

0

22

Homelite 529328002

Handle Tube Bushing (Large)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 529327001

Handle Tube Bushing (Small)

$1.99

$

In Stock, Qty 5

0

24

Homelite 695002005

Upper Handle Tube

$8.99

$

Usually ships in 3-7 days

0

25

Homelite 532200004

Trigger (Right)
(Superseded to 205282001)

$8.49

$

Usually ships in 3-7 days

0

26

Homelite 695004002

Bail Handle (Power Lever)

$14.99

$

Usually ships in 3-7 days

0

27

Homelite 695036001

Torsion Spring

$

$

Not available

28

Homelite 312423001

Upper Handle Assembly

$27.99

$

Usually ships in 3-7 days

0

29

Homelite 529267001

Front Upper Handle Support
(Superseded to 205045001)

$18.99

$

Usually ships in 3-7 days

0

30

Homelite 563862001

Rubber Plate (Handle Lock Clip)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 205049001

Lower Panel Assembly

$11.99

$

Usually ships in 3-7 days

0

32

Homelite 529298001

Block (Handle Lock Clip)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 970698004

Bag
(Superseded to 970698001)

$70.99

$

Usually ships in 3-7 days

0

34

Homelite 529293002

Handle Lock Clip

$1.99

$

In Stock, only 3 left!

0

35

Homelite 621895001

Pin (Handle Lock Clip)

$1.99

$

In Stock, only 2 left!

0

36

Homelite 695065001

Lower Handle Tube (Left)

$11.99

$

Usually ships in 3-7 days

0

37

Homelite 635385006

Bag Frame

$

$

Not available

38

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

39

Homelite 532198002

Upper Handle Support (Rear)

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 760689007

On/Off Switch
(Superseded to 760689010)

$4.49

$

Usually ships in 3-7 days

0

41

Homelite 528465004

Spring Holder

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 529011002

Actuator Switch

$1.99

$

In Stock, only 3 left!

0

43

Homelite 694218001

Compression Spring

$1.99

$

In Stock, Qty 5

0

44

Homelite 270109001

Variable Switch

$8.49

$

Usually ships in 3-7 days

0

45

Homelite 532199004

Trigger (Left)
(Superseded to 205282001)

$8.49

$

Usually ships in 3-7 days

0

46

Homelite 694475001

Safety Button Spring

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 528278004

Safety Button

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

49

Homelite 532667001

Thumb Pad

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 532680001

Dust Shield

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 205048001

Upper Handle Support Assembly

$

$

Not available

52

Homelite 636233001

Washer (ID8.5 x OD20.5 x 2 mm x 2t)

$1.99

$

In Stock, only 4 left!

0

53

Homelite 941705001

Starting Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 941705002

Logo Labe

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 941705005

40V Logo Label

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 533467001

Switch Plug Housing

$1.99

$

In Stock, Qty 5

0

57

Homelite 529269001

Rear Upper Handle Support
(Superseded to 205045001)

$18.99

$

Usually ships in 3-7 days

0

58

Homelite 760584001

TOGGLE SWITCH
(Superseded to 760584003)

$

$

Not available

59

Homelite 790055001

NYLON CABLE TIE

$

$

Not available

Homelite 995000197

Operator's Manual

Note: Not Shown

$

$

Not available
