RY 40109 (107299001) - Ryobi 20" 40V Walk-Behind Mower, Rev 02 (2017-07) Figure C Parts Diagram

20" 40V Walk-Behind Mower, Rev 02

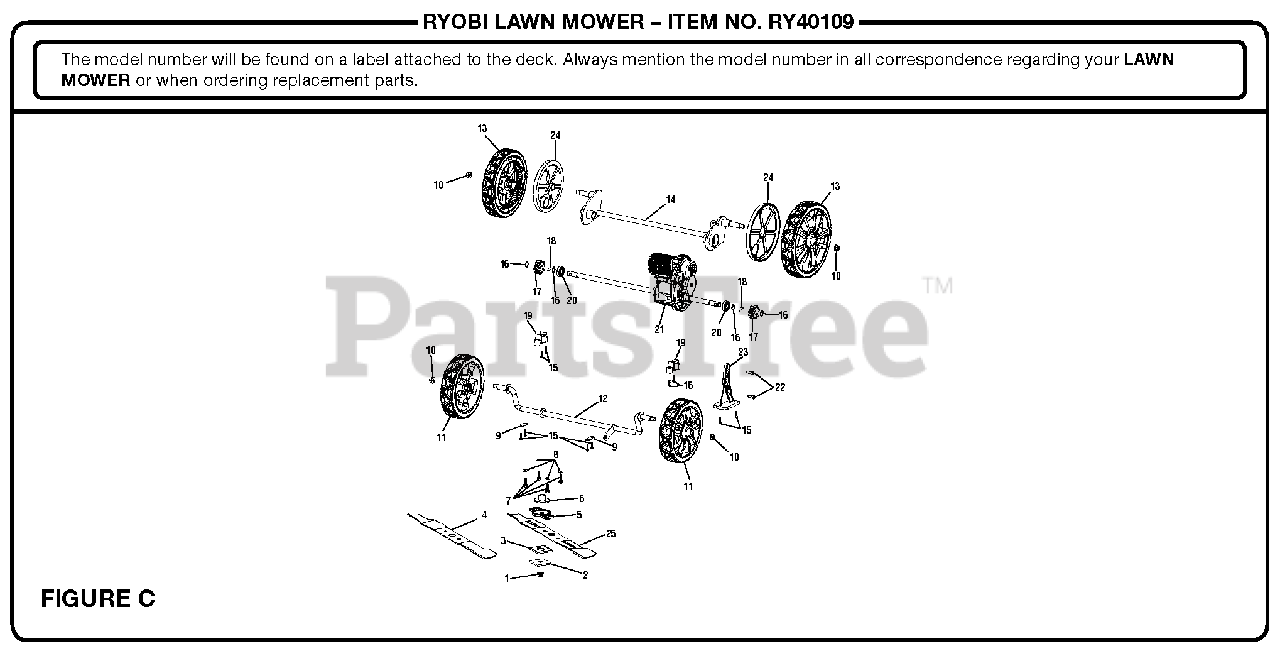

Figure C Parts Diagram

  • Title

1

Homelite 679075001

Hex Nut (M10, Flange)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 639118001

Blade Retainer

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 526920001

Spacer

$1.99

$

In Stock, only 1 left!

0

4

Homelite 635373001

Mulching Blade
(Superseded to 682162001)

$19.99

$

In Stock, only 1 left!

0

5

Homelite 526921001

Blade Holder

$1.99

$

In Stock, Qty 6

0

6

Homelite 613427001

Motor Shaft Bushing

$7.99

$

In Stock, only 1 left!

0

7

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 639116003

Axle Pressure Plate

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 662082001

Lock Nut (3/8-16, Flange)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 330073002

Front Wheel Assembly
(Superseded to 330073008)

$

$

Not available

12

Homelite 635376003

Front Wheel Axle

$14.99

$

Usually ships in 3-7 days

0

13

Homelite 312387001

Rear Wheel Assembly
(Superseded to 312387003)

$

$

Not available

14

Homelite 637788001

Rear Wheel Axle w/Rotation Plate

$39.99

$

Usually ships in 3-7 days

0

15

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 8

0

16

Homelite 690698001

Retaining Ring

$1.99

$

In Stock, Qty 6

0

17

Homelite 613239001

Drive Gear

$3.49

$

In Stock, Qty 5

0

18

Homelite 622068001

Gear Shaft

$1.99

$

Usually ships in 3-7 days

0

19

642436001

Mounting Plate

$

$

Not available

20

682081001

Ball Bearing (OD28.6 x ID12.7 x 8)

$

$

Not available

21

Homelite 210376001

Transmission Assembly

$215.99

$

Usually ships in 3-7 days

0

22

Homelite 662065001

Screw

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 532557001

Transmission Holder

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 532115001

Wheel Cover

$4.49

$

Usually ships in 3-7 days

0

25

Homelite 994869001

Bagging Blade

$

$

Not available
