RY 40108 (107813013) - Ryobi 40V Walk-Behind Mower, Rev 01 (2019-09) FIGURE A Parts Diagram

40V Walk-Behind Mower, Rev 01

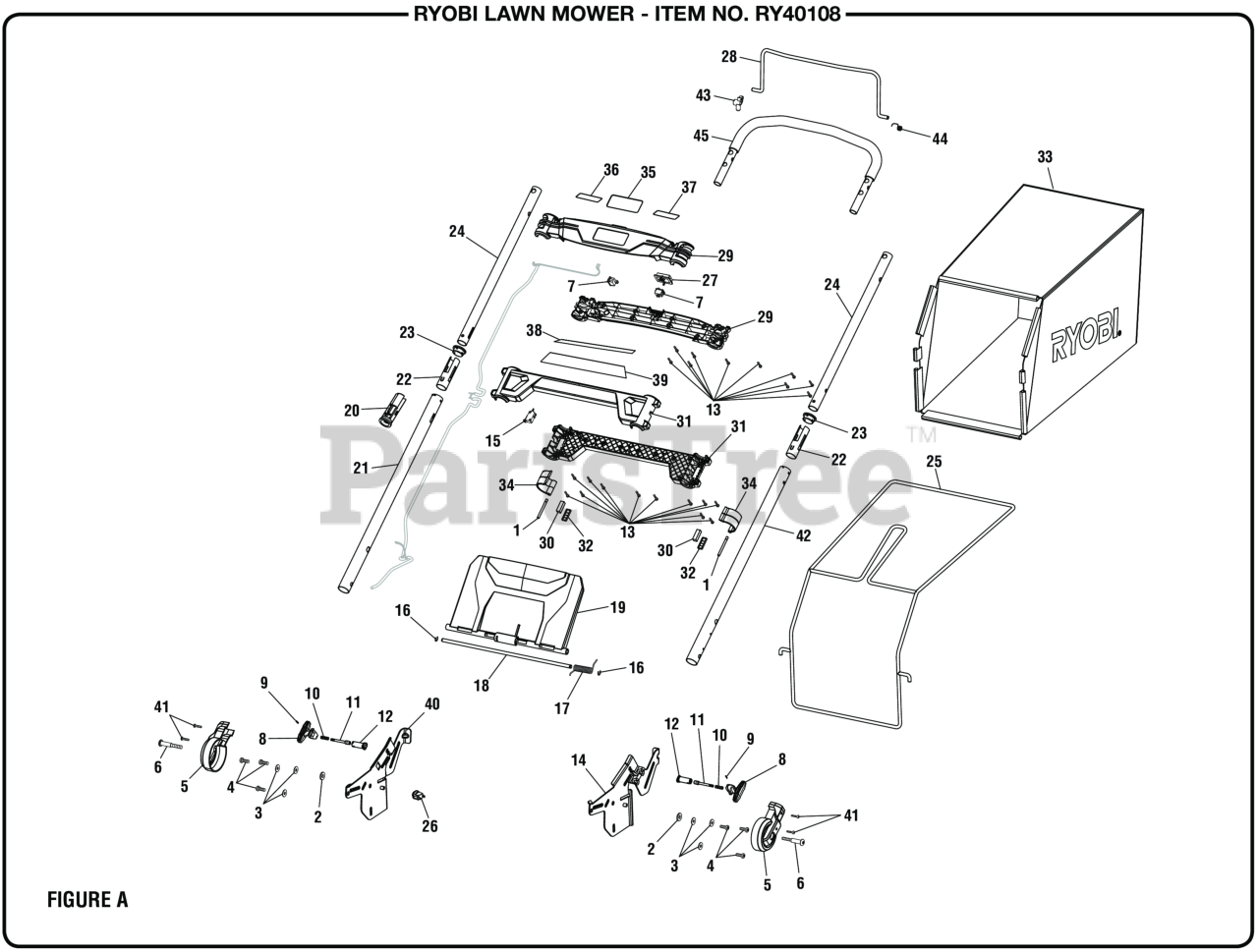

FIGURE A Parts Diagram

  • Title

1

Homelite 621895001

Pin (Handle Lock Clip)

$1.99

$

In Stock, only 2 left!

0

2

Homelite 636233001

Washer (ID8.5 x OD20.5 x 2 mm x 2t)

$1.99

$

In Stock, only 4 left!

0

3

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

4

Homelite 664004003

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 529260001

Hinge Cover

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 662324001

Shoulder Screw (M8 x 60 mm, T40 Torx Hd.)

$2.99

$

In Stock, Qty 5

0

7

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

8

Homelite 528361002

Adjustment Knob (Spring Pin)

$1.99

$

In Stock, Qty 6

0

9

Homelite 673441001

Spring Pin

$1.99

$

In Stock, only 1 left!

0

10

Homelite 694490001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 673438001

Detent Pin

$2.49

$

In Stock, only 4 left!

0

12

Homelite 642586001

Spring Pin Housing

$3.49

$

In Stock, Qty 5

0

13

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

14

Homelite 636779003

Height Adjustment Bracket (Left)
(Superseded to 636779002)

$

$

Not available

15

Homelite 760551002

Switch

$4.49

$

In Stock, only 2 left!

0

16

Homelite 670704001

RETAINING RING (EXTERNAL)

$1.99

$

In Stock, only 2 left!

0

17

Homelite 679076002

Torsion Spring (Rear Door)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 635469002

Rear Door Axle

$4.49

$

Usually ships in 3-7 days

0

19

Homelite 527478002

Rear Discharge Door

$7.99

$

Usually ships in 3-7 days

0

20

Homelite 533467001

Switch Plug Housing

$1.99

$

In Stock, Qty 5

0

21

Homelite 695001001

Lower Handle Tube (Right)

$10.99

$

Usually ships in 3-7 days

0

22

Homelite 529328002

Handle Tube Bushing (Large)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 529327001

Handle Tube Bushing (Small)

$1.99

$

In Stock, Qty 5

0

24

Homelite 695002005

Upper Handle Tube

$8.99

$

Usually ships in 3-7 days

0

25

Homelite 635385006

Bag Frame

$

$

Not available

26

Homelite 760584001

TOGGLE SWITCH
(Superseded to 760584003)

$

$

Not available

27

Homelite 529261002

Safety Switch Cover
(Superseded to 203910001)

$

$

Not available

28

Homelite 695004003

Bail Handle

$6.99

$

Usually ships in 3-7 days

0

29

Homelite 205045001

Upper Panel Assembly

$18.99

$

Usually ships in 3-7 days

0

30

Homelite 563862001

Rubber Plate (Handle Lock Clip)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 205047001

Lower Panel Assembly

$

$

Not available

32

Homelite 529298001

Block (Handle Lock Clip)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 970698004

Bag
(Superseded to 970698001)

$70.99

$

Usually ships in 3-7 days

0

34

Homelite 529293001

Telescoping Latch

$1.99

$

In Stock, only 1 left!

0

35

Homelite 940705322

Logo Label

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 940851127

Start Label (Right)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 940851133

Start Label (Left)

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 940851128

Lithium Label

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 940851198

Extended Handle Label

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 637605003

Height Adjustment Bracket (Right)

$

$

Not available

41

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, only 4 left!

0

42

Homelite 695065001

Lower Handle Tube (Left)

$11.99

$

Usually ships in 3-7 days

0

43

Homelite 529011003

Actuator Switch

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 695036001

Torsion Spring

$

$

Not available

45

Homelite 311313002

Upper Handle & Foam Grip Assembly

$10.99

$

Usually ships in 3-7 days

0

Homelite 991000664

Operator's Manual

Note: Not Shown

$

$

Not available
