RY 40108 (107813005) - Ryobi 40V Walk-Behind Mower, Rev 02 (2018-05) Figure C Parts Diagram

40V Walk-Behind Mower, Rev 02

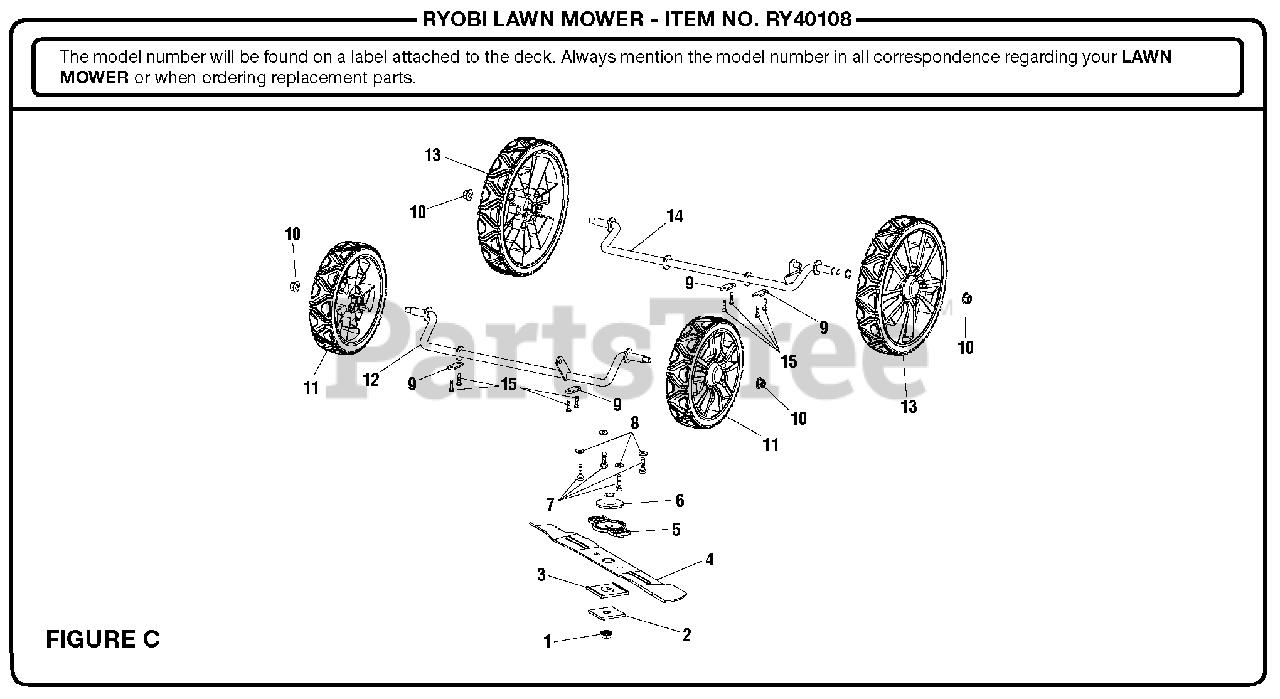

Figure C Parts Diagram

  • Title

1

Homelite 679075001

Hex Nut (M10, Flange)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 639118001

Blade Retainer

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 526920001

Spacer

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 682162001

Blade

$19.99

$

In Stock, only 1 left!

0

5

Homelite 526921001

Blade Holder

$1.99

$

In Stock, Qty 6

0

6

Homelite 613427001

Motor Shaft Bushing

$7.99

$

In Stock, only 1 left!

0

7

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 639116003

Axle Pressure Plate

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 662082001

Lock Nut (3/8-16, Flange)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 330073005

Front Wheel Assembly

$19.99

$

Usually ships in 3-7 days

0

12

Homelite 635376006

Front Wheel Axle

$14.99

$

Usually ships in 3-7 days

0

13

Homelite 330072005

Rear Wheel Assembly

$

$

Not available

14

Homelite 635375005

Rear Wheel Axle

$

$

Not available

15

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0
