RY 40108 (107813001) - Ryobi 40V Walk-Behind Mower, Rev 10 (2018-05) Figure B Parts Diagram

40V Walk-Behind Mower, Rev 10

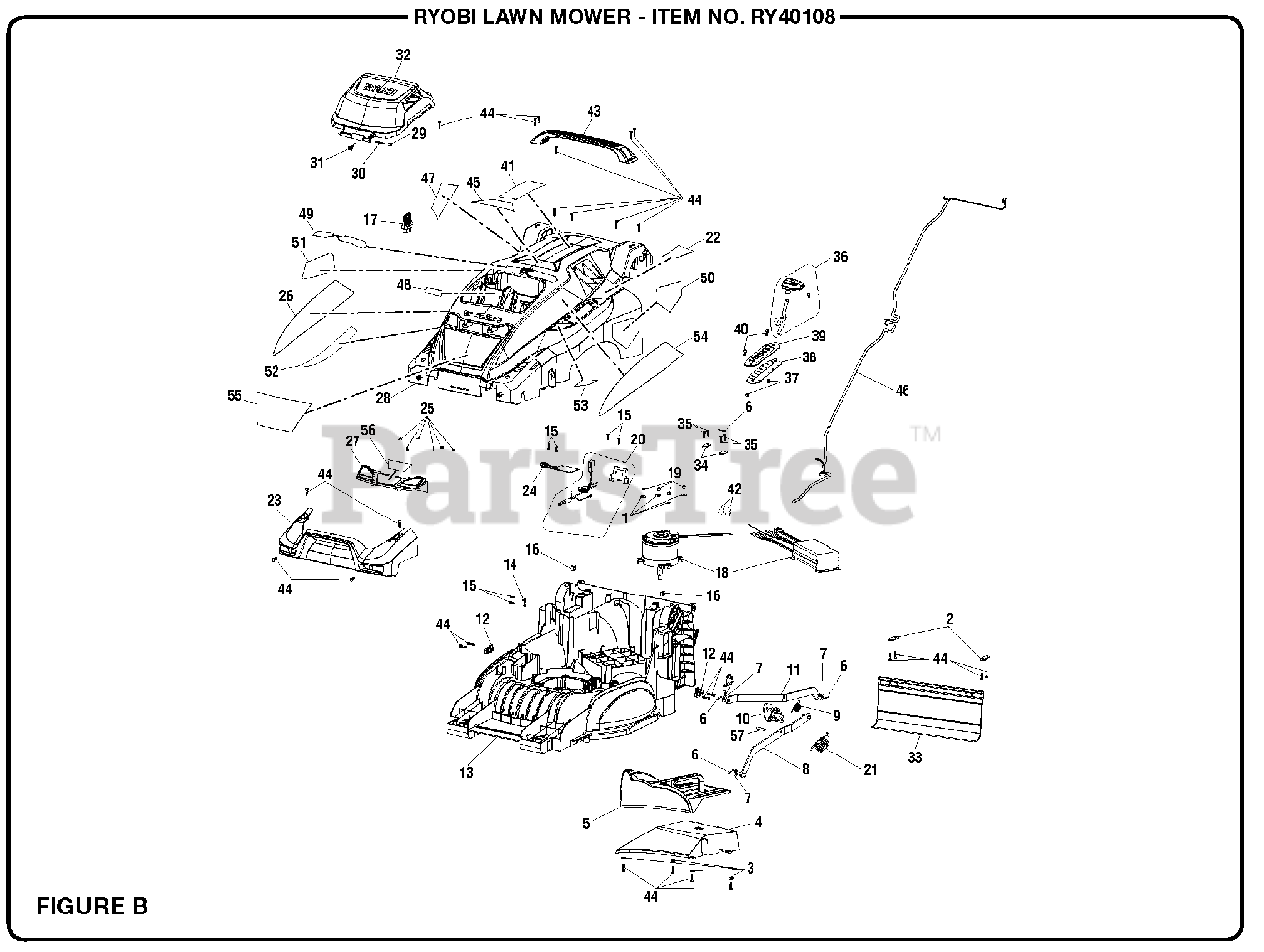

Figure B Parts Diagram

  • Title

1

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 639116003

Axle Pressure Plate

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 636062001

Washer (ID4.5 x OD10 x 1t)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 527548002

Baffle

$9.49

$

Usually ships in 3-7 days

0

5

Homelite 527556001

Mulching Plug

$

$

Not available

6

Homelite 678279004

Cotter Pin

$1.99

$

In Stock, only 1 left!

0

7

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 635378005

Front Lift Rod

$5.99

$

Usually ships in 3-7 days

0

9

Homelite 679992001

Torsion Spring (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 639203001

Height Adjustment Bracket

$6.99

$

In Stock, only 1 left!

0

11

Homelite 635379005

Rear Lift Rod

$27.99

$

Usually ships in 3-7 days

0

12

Homelite 639116002

Axle Mount
(Superseded to 642291001)

$

$

Not available

13

Homelite 531172001

Deck

$93.99

$

Usually ships in 3-7 days

0

14

Homelite 513211001

Cord Clip

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$1.99

$

Usually ships in 3-7 days

0

16

Homelite T662406001

Square Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 311280001

Start Key

$7.49

$

In Stock, only 1 left!

0

18

Homelite 312922001

Motor and Controller Assembly (EU17300 & Before, B.D.C. Week 30, 2017)
(Superseded to 312922010)

$

$

Not available

18

Homelite 312922003

Motor and Controller Assembly (EU17301, A.D.C. Week 30, 2017)
(Superseded to 312922011)

$587.99

$

Usually ships in 3-7 days

0

19

Homelite 680196006

Hex Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 205080001

Key Holder Assembly

Note: (Inc. Key No. 21)

$9.49

$

Usually ships in 3-7 days

0

21

Homelite 694052001

Rentention Spring

$3.49

$

Usually ships in 3-7 days

0

22

Homelite 941843004

Height Adjustment Label

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 529372001

Front Bumper

$10.99

$

Usually ships in 3-7 days

0

24

Homelite 291805001

Circuit Board (Before EU17171, B.D.C. Week 17, 2017 Light Assembly)

$16.99

$

Usually ships in 3-7 days

0

24

Homelite 280424002

Circuit Board (EU17171, & After A.D.C. Week 17, 2017 Light Assembly)

$32.99

$

Usually ships in 3-7 days

0

25

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

26

Homelite 940851132

Brushless Label (Right)

$5.49

$

Usually ships in 3-7 days

0

27

Homelite 205057001

Light Assembly

Note: (Inc. Key No. 56)

$9.49

$

Usually ships in 3-7 days

0

28

Homelite 205046001

Deck Cover

Note: (Inc. Key Nos. 22, 26, 41, 45 & 47-55)

$56.99

$

Usually ships in 3-7 days

0

29

Homelite 621628001

Axle

$1.99

$

In Stock, only 4 left!

0

30

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

31

Homelite 679074002

Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 529259001

Battery Cover

$

$

Not available

33

Homelite 534779001

Rear Protective Guard

$20.99

$

Usually ships in 3-7 days

0

34

Homelite 639125002

Pressure Plate (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

36

Homelite 205011003

Height Adjust Handle Kit

$3.99

$

In Stock, only 1 left!

0

37

Homelite 678509001

Hex Lock Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 563454001

Dust Gasket

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 635382001

Height Adjustment Plate

$5.49

$

Usually ships in 3-7 days

0

40

Homelite 660713001

Screw (M5 x 16 mm, Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 941107021

Bilingual Danger (French/Spanish) & Trilingual Warning (English/French/Spanish) Label
(Superseded to 940657193)

$

$

Not available

42

Homelite 870601002

Close-End Connector

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 529258001

Carrying Handle

$3.99

$

Usually ships in 3-7 days

0

44

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

45

Homelite 941107020

Danger/Warning Icon Label (English)
(Superseded to 940657193)

$

$

Not available

46

Homelite 291556001

Wiring Harness (EU17151 & Before, B.D.C. Week 15, 2017)

$14.99

$

Usually ships in 3-7 days

0

46

Homelite 291556002

Wiring Harness (EU17301 & After, A.D.C. Week 30, 2017)

$16.99

$

Usually ships in 3-7 days

0

46

Homelite 291556003

Wiring Harness (EU17152-EU17300, A.D.C. Week 15, 2017 to B.D.C. Week 30, 2017)

$10.99

$

Usually ships in 3-7 days

0

47

Homelite 941842015

40V Lithium Label

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 941843005

On Board Battery Storage Label

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 941107015

Warning Label

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 941641001

No Hands Label

$

$

Not available

51

Homelite 941588122

Data Label

$

$

Currently unavailable

52

Homelite 941842004

RYOBI Label (Right)

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 941842007

Logo Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 940705323

Brushless Label (Left)

$4.49

$

Usually ships in 3-7 days

0

55

Homelite 940705324

40V Brushless Logo Label

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 940851129

LED Headlight Label

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 639122001

Adjust Height Axle

$1.99

$

Usually ships in 3-7 days

0
