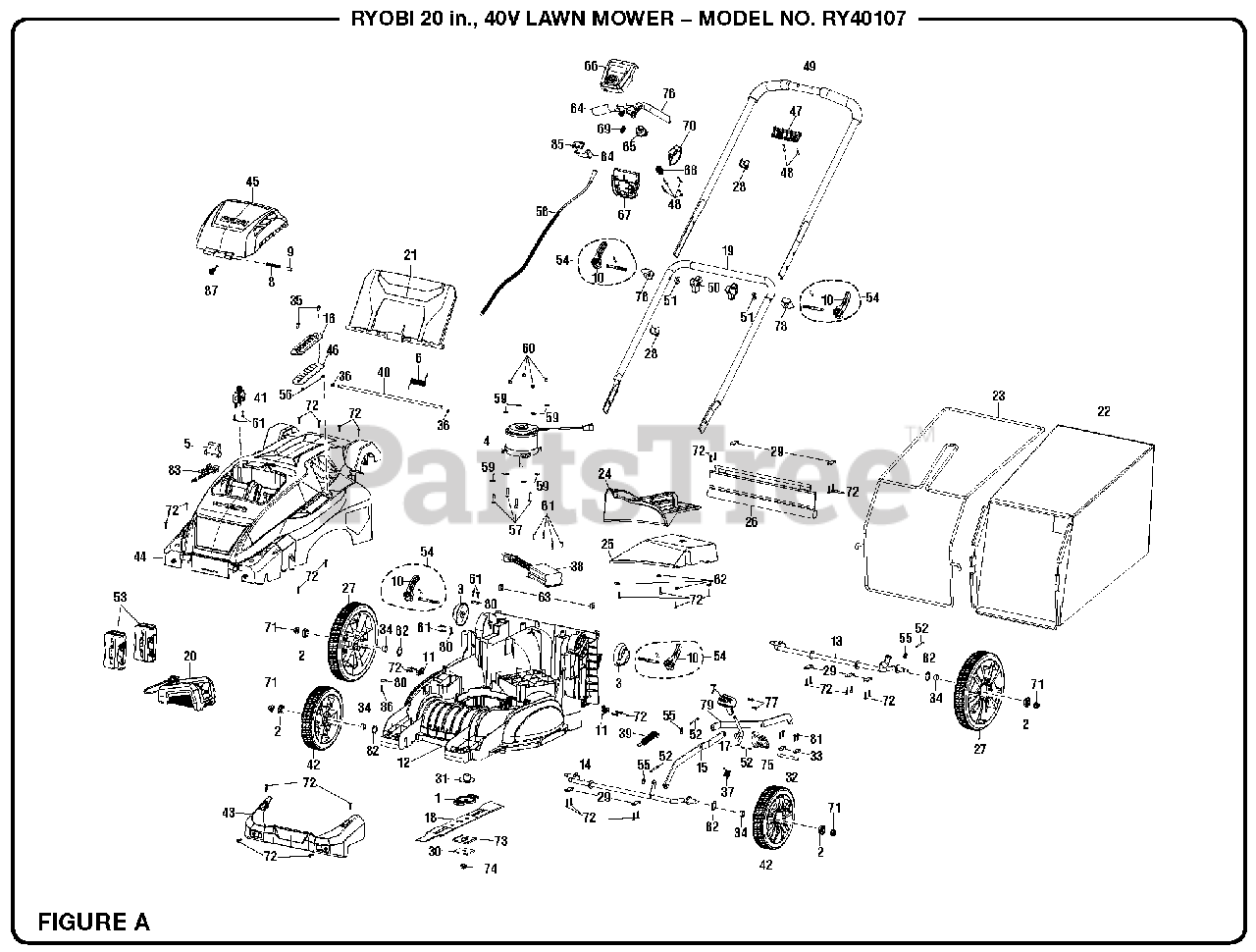

RY 40107 - Ryobi 20" 40V Walk-Behind Mower General Assembly Parts Diagram

20" 40V Walk-Behind Mower

General Assembly Parts Diagram

  • Title
1

Homelite 526921001

Blade Holder

$1.99

$

In Stock, Qty 6

0

2

Homelite 691340002

Flanged Outer Ring Bearing

$6.99

$

Usually ships in 3-7 days

0

3

Homelite 526922001

Quick Lock Press Block

$1.99

$

Usually ships in 3-7 days

0

$348.99

$

Usually ships in 3-7 days

0

5

Homelite 311209001

Base (Battery Connect)

$

$

Not available

6

Homelite 679076001

Torsion Spring (Rear Door)

$2.49

$

In Stock, only 1 left!

0

7

Homelite 526924003

Adjust Height Handle

$1.49

$

Usually ships in 3-7 days

0

$1.99

$

In Stock, only 4 left!

0

$1.99

$

In Stock, only 4 left!

0

10

Homelite 526904001

Adjust Height Handle

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 642291001

Axle Mount
(Superseded to 639116002)

$

$

Not available

12

Homelite 527477001

Deck (20 in)

$103.99

$

Usually ships in 3-7 days

0

13

Homelite 635375001

Rear Wheel Axle
(Superseded to 696318001)

$30.99

$

In Stock, only 1 left!

0

14

Homelite 635376001

Front Wheel Axle

$14.99

$

Usually ships in 3-7 days

0

15

Homelite 635378001

Forward Linkage
(Superseded to 635378005)

$5.99

$

Usually ships in 3-7 days

0

16

Homelite 635382001

Lift Arm Bracket

$5.49

$

Usually ships in 3-7 days

0

17

$

$

Not available

18

Homelite 635373001

Blade
(Superseded to 682162001)

$19.99

$

In Stock, only 1 left!

0

19

Homelite 635384002

Lower Handle

$20.99

$

Usually ships in 3-7 days

0

20

Homelite 140181001

Charger
(Superseded to 140199017)

$155.99

$

Usually ships in 3-7 days

0

21

Homelite 527478001

Rear Door

$4.49

$

Usually ships in 3-7 days

0

$55.99

$

Usually ships in 3-7 days

0

23

Homelite 635385001

Bag Frame

$

$

Not available

24

Homelite 527556001

Mulching Plug

$

$

Not available

25

$

$

Not available

26

Homelite 527549001

Rear Protective Guard
(Superseded to 534779001)

$20.99

$

Usually ships in 3-7 days

0

27

Homelite 306859001

Rear Wheel (10 in)

$

$

Not available

28

Homelite 526908001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 639116001

Axle Press Plate

$

$

Not available

30

Homelite 639118001

Metal Blade Retainer

$3.49

$

Usually ships in 3-7 days

0

31

Homelite 639120001

Motor Shaft Bushing

$5.99

$

In Stock, only 1 left!

0

32

Homelite 639122001

Adjust Height Axle

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 639125001

Adjust Height Press Plate

$

$

Not available

34

Homelite 642185001

Bearing Sleeve

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 660713001

Screw (M5 x 16 mm, Phillips Pan Hd)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 678880001

Retaining Ring (E)

$1.99

$

In Stock, only 2 left!

0

37

Homelite 679992001

Torsion Spring (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 311216003

Electical Control Panel Assembly

$

$

Not available

39

Homelite 694052001

Retention Spring

$3.49

$

Usually ships in 3-7 days

0

40

Homelite 635469001

Rear Door Axle

$3.49

$

Usually ships in 3-7 days

0

41

$

$

Not available

42

Homelite 311255002

Front Wheel (8 in)

$

$

Not available

43

$

$

Not available

44

Homelite 527476001

Deck Cover

$71.99

$

Usually ships in 3-7 days

0

45

Homelite 527551001

Battery Cover
(Superseded to 529259001)

$

$

Not available

46

Homelite 563454001

Shifter Boot

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 527967001

Lower Front Control

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 660208104

Screw (M4 x 30 mm, T15 Torx Pan Hd)

$1.99

$

In Stock, only 2 left!

0

49

Homelite 307021001

Handle Assembly Upper

$21.99

$

Usually ships in 3-7 days

0

$2.99

$

In Stock, only 3 left!

0

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 678279004

Cotter Pin

$1.99

$

In Stock, only 1 left!

0

53

Homelite 130186012

Battery
(Superseded to 206336003)

$

$

Not available

54

Homelite 311206002

Handle Lock Assembly

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 639013001

Washer (ID84 x OD18 x 1t)

$1.99

$

In Stock, only 1 left!

0

56

Homelite 678509001

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 291516002

Starter Cable

$19.99

$

Usually ships in 3-7 days

0

59

Homelite 638557001

Washer (ID15 x OD62 x 08t)

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 680196006

Hex Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

61

Homelite 660608002

Screw (M4 x 16mm, T20 Torx Hd)

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 636062001

Washer (ID45 x OD10 x 1t)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 661990001

Square Nut (M8)

$

$

Not available

64

Homelite 527969002

Trigger (Right)

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 527968002

Safety Button

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 527966002

Front Housing

$2.99

$

Usually ships in 3-7 days

0

67

Homelite 527542002

Rear Housing

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 694136002

Handle Adjustment Spring

$1.99

$

Usually ships in 3-7 days

0

69

Homelite 694218001

Trigger Spring

$1.99

$

In Stock, Qty 5

0

70

Homelite 527816001

Switch Holder

$2.49

$

Usually ships in 3-7 days

0

71

$1.99

$

Usually ships in 3-7 days

0

72

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd)

$1.99

$

In Stock, Qty 6

0

73

$1.99

$

Usually ships in 3-7 days

0

74

Homelite 679075001

Blade Nut (M10 x 125 mm)

$1.99

$

In Stock, only 3 left!

0

75

Homelite 639203001

Adjustment Height Bracket

$6.99

$

Usually ships in 3-7 days

0

76

Homelite 527970002

Trigger (Left)

$2.49

$

Usually ships in 3-7 days

0

77

Homelite 664021001

Screw (M3 x 10 mm)

$

$

Not available

78

Homelite 526905001

Pressure Block

$1.49

$

Usually ships in 3-7 days

0

79

Homelite 635379002

Rearward Linkage
(Superseded to 635379005)

$27.99

$

Usually ships in 3-7 days

0

80

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

81

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd)

$1.99

$

In Stock, Qty 6

0

82

Homelite 636095001

Wave Washer

$1.99

$

Usually ships in 3-7 days

0

83

Homelite 280324002

Circuit Board Assembly

$16.99

$

Usually ships in 3-7 days

0

84

$4.49

$

Usually ships in 3-7 days

0

85

$3.49

$

Usually ships in 3-7 days

0

86

Homelite 660608001

Screw (M4)

$1.99

$

In Stock, only 3 left!

0

87

Homelite 679074002

Battery Cover Spring

$1.99

$

Usually ships in 3-7 days

0

Homelite 990000886

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
