RY 40104 (107928039) - Ryobi 40V Walk-Behind Mower, Rev 02 (2018-04) General Assembly (Part 1) Parts Diagram

40V Walk-Behind Mower, Rev 02

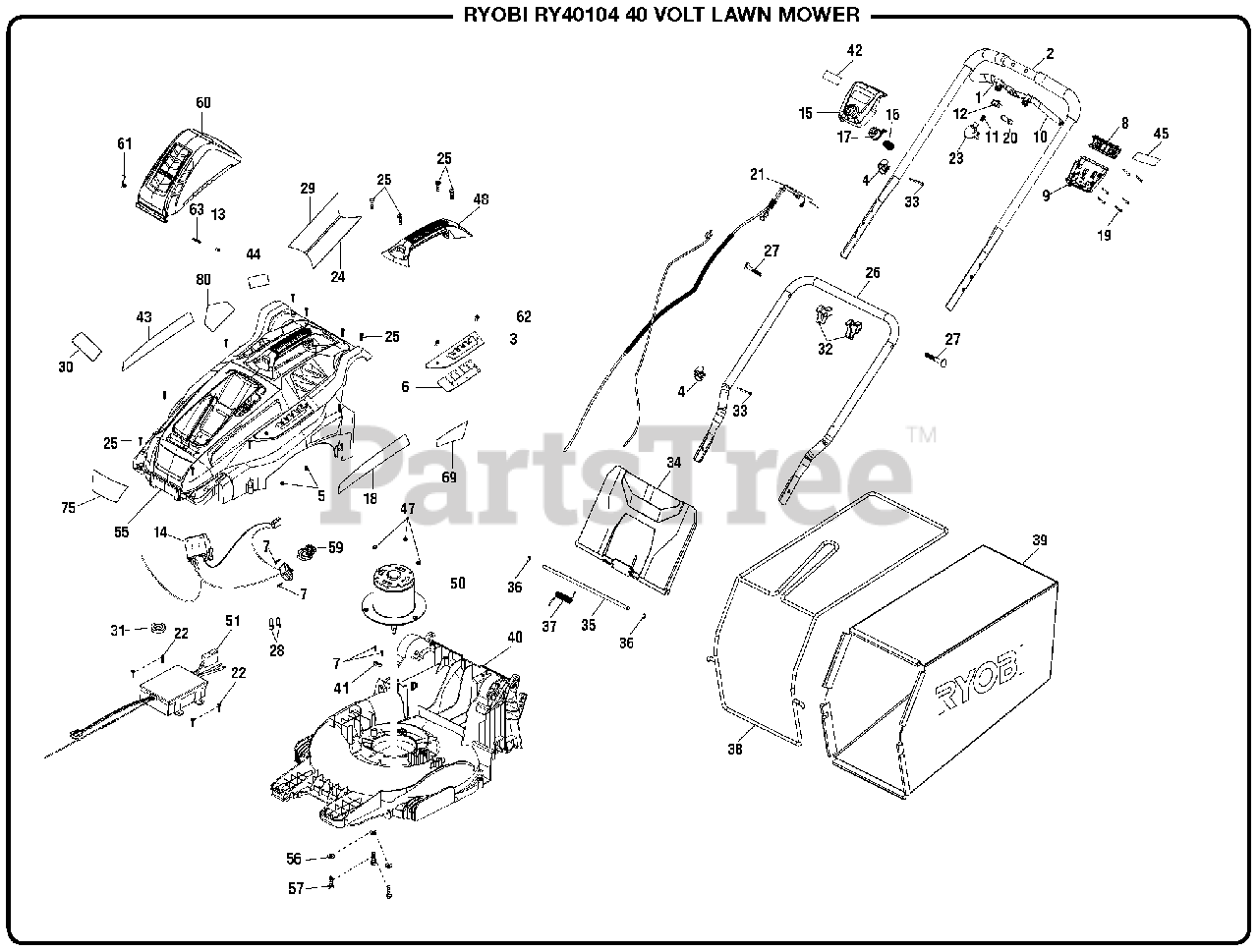

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 527969002

Trigger Handle (Right Power Lever)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 307021006

Upper Handle Assembly

$19.99

$

Usually ships in 3-7 days

0

3

Homelite 639193005

Height Adjustment Plate

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 532410001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 678509001

Lock Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 570839002

Dust Gasket

$

$

Not available

7

Homelite 660608002

Screw (M4 x 16, T20 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 527967001

Lower Cover (Stain Handle)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 527542002

Lower Cover (Trigger Housing)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 527970002

Trigger Handle (Left Power Lever)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 694218001

Compression Spring

$1.99

$

In Stock, Qty 5

0

12

Homelite 760279002

Switch

$4.49

$

Usually ships in 3-7 days

0

13

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

14

Homelite 291921001

Inner Wire w/Battery Holder Assembly

$8.49

$

Usually ships in 3-7 days

0

15

Homelite 527966002

Upper Cover (Control Assembly)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 694136002

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 527968002

Start Button

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 940851117

Lithium Label (Left)

$

$

Not available

19

Homelite 660208104

Screw (M4 x 30 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, only 2 left!

0

20

Homelite 760536001

Switch

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 291741001

Starter Cable (Long)

$17.99

$

In Stock, only 1 left!

0

22

Homelite 661610009

Screw (M3.5 x 12 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 527816001

Switch Holder

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 941846008

Warning Icon Label (Right)

$

$

Not available

25

Homelite 660563002

Screw (M3.5 x 20 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 8

0

26

Homelite 696080001

Lower Handle

$23.99

$

In Stock, only 1 left!

0

27

Homelite 662104001

Screw (M8 x 57 mm)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 790021001

Wire Connector

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 941846007

Warning Icon Label (Left)

$

$

Not available

30

Homelite 940851143

Start Key Label (Eng)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 850122001

Ferrite Induct Ring

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 528360001

Knob

$1.99

$

In Stock, Qty 5

0

33

Homelite 660203059

Screw (M3 x 20 mm, Pan Hd.)

$1.86

$

Usually ships in 3-7 days

0

34

Homelite 526857003

Rear Discharge Door

$6.99

$

In Stock, only 1 left!

0

35

Homelite 639200001

Rear Door Axle

$4.99

$

Usually ships in 3-7 days

0

36

Homelite 678880001

Retaining Ring (E)

$1.99

$

In Stock, only 2 left!

0

37

Homelite 679076001

Torsion Spring (Rear Door)

$2.49

$

In Stock, only 1 left!

0

38

Homelite 639183003

Bag Frame

$

$

Not available

39

Homelite 970699003

Bag

$44.99

$

In Stock, only 1 left!

0

40

Homelite 526854009

Deck

$110.99

$

Usually ships in 3-7 days

0

41

Homelite 513211001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940705269

Ryobi Logo Label (Handle)

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 940851118

Lithium Label (Right)

$

$

Not available

44

Homelite 941588234

Data Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940686159

Starting Instructions Label

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 680196006

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 526874001

Handle

$6.99

$

Usually ships in 3-7 days

0

50

Homelite 741922002

Motor

$429.99

$

Usually ships in 3-7 days

0

51

Homelite 280705001

Soft Start Circuit Board

$184.99

$

Usually ships in 3-7 days

0

55

Homelite 526856001

Deck Cover

$39.99

$

Usually ships in 3-7 days

0

56

Homelite 638557001

Washer (OD15 x ID6 x 1t)

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 311280001

Start Key

$7.49

$

In Stock, only 1 left!

0

60

Homelite 526855001

Battery Cover

$

$

Not available

61

Homelite 679074001

Torsion Spring (Battery Door)

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 660713001

Screw (M5 x 16 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

69

Homelite 940851116

Cut Diameter Label (Left)

$1.99

$

Usually ships in 3-7 days

0

75

Homelite 940705179

Ryobi Logo Label (Front)

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 941641001

Cut Finger Label

$

$

Not available

Homelite 991000681

Operator's Manual

Note: NOT SHOWN

$

$

Not available
