RY 40104 (107928034) - Ryobi 40V Walk-Behind Mower, Rev 04 (2018-04) General Assembly (Part 2) Parts Diagram

40V Walk-Behind Mower, Rev 04

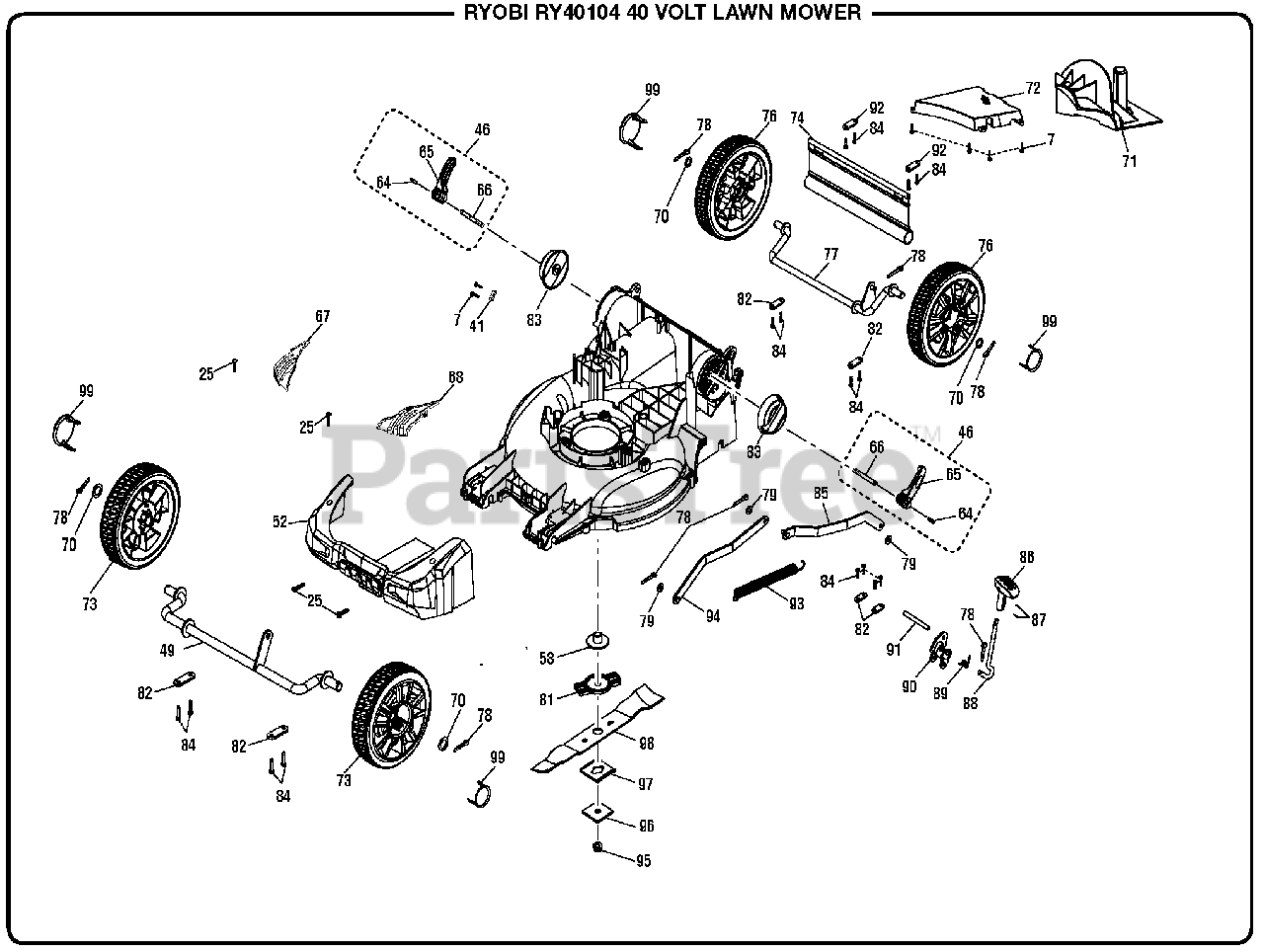

General Assembly (Part 2) Parts Diagram

  • Title

7

Homelite 660608002

Screw (M4 x 16, T20 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 660563002

Screw (M3.5 x 20 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

41

Homelite 513211001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 350878001

Handle Lock Assembly

$1.49

$

In Stock, only 1 left!

0

49

Homelite 636379001

Front Wheel Axle
(Superseded to 636379002)

$16.99

$

In Stock, only 1 left!

0

52

Homelite 526975001

Bumper

$4.99

$

Usually ships in 3-7 days

0

58

Homelite 639120001

Motor Shaft Bushing

$5.99

$

In Stock, only 1 left!

0

64

Homelite 679988001

Spring Pin

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 526904001

Latch

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 661865001

Quick Lock Press

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 526977001

Grass Protector (Right)

$

$

Not available

68

Homelite 526976001

Grass Protector (Left)

$

$

Not available

70

Homelite 639113003

Washer (OD20 x ID13 x 1t)

$1.99

$

Usually ships in 3-7 days

0

71

Homelite 526980001

Mulching Plug

$

$

Not available

72

Homelite 525668001

Rear Cover

$

$

Not available

73

Homelite 311253001

Front Wheel w/Bearing & Cap 6 in.

Note: (Inc. Key No. 99)

$12.99

$

Usually ships in 3-7 days

0

74

Homelite 528595001

Rear Skirt

$20.99

$

In Stock, only 1 left!

0

76

Homelite 311739001

Rear Wheel w/Bearing & Cap 8 in

Note: (Inc. Key No. 99)

$

$

Not available

77

Homelite 636378001

Rear Wheel Axle
(Superseded to 636378002)

$19.99

$

Usually ships in 3-7 days

0

78

Homelite 678279004

Cotter Pin (2.5)

$1.99

$

In Stock, only 1 left!

0

79

Homelite 639013001

Washer (OD18 x ID8.4 x 1t)

$1.99

$

In Stock, only 1 left!

0

81

Homelite 526921001

Blade Holder

$1.99

$

In Stock, Qty 6

0

82

Homelite 639116001

Axle Pressure Plate

$

$

Not available

83

Homelite 526922001

Base (Lock Handle)

$1.99

$

Usually ships in 3-7 days

0

84

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

85

Homelite 639186001

Rear Lift Rod

$10.99

$

Usually ships in 3-7 days

0

86

Homelite 526924001

Height Adjustment Handle

$1.99

$

Usually ships in 3-7 days

0

87

Homelite 664021001

Screw (M3 x 9 mm, Flat Hd.)

$

$

Not available

88

Homelite 639204001

Height Adjustment Lever

$5.49

$

Usually ships in 3-7 days

0

89

Homelite 679992001

Torsion Spring (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

90

Homelite 639203001

Height Adjustment Bracket

$6.99

$

In Stock, only 1 left!

0

91

Homelite 639122001

Axle (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

92

Homelite 639125001

Pressure Plate (Height Adjustment)

$

$

Not available

93

Homelite 694052001

Retention Spring

$3.49

$

Usually ships in 3-7 days

0

94

Homelite 639185001

Front Lift Rod

$11.99

$

Usually ships in 3-7 days

0

95

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.99

$

In Stock, only 2 left!

0

96

Homelite 639118001

Blade Retainer

$3.49

$

Usually ships in 3-7 days

0

97

Homelite 526920001

Spacer

$1.99

$

In Stock, Qty 5

0

98

Homelite 639180003

Blade (16 in.)

$14.99

$

Usually ships in 3-7 days

0

99

Homelite 526876001

Wheel Cover

$1.99

$

In Stock, only 1 left!

0

Homelite 991000681

Operator's Manual

Note: NOT SHOWN

$

$

Not available
