RY 40104 (107928023) - Ryobi 40V Walk-Behind Mower, Rev 05 (2018-09) General Assembly (Part 1) Parts Diagram

40V Walk-Behind Mower, Rev 05

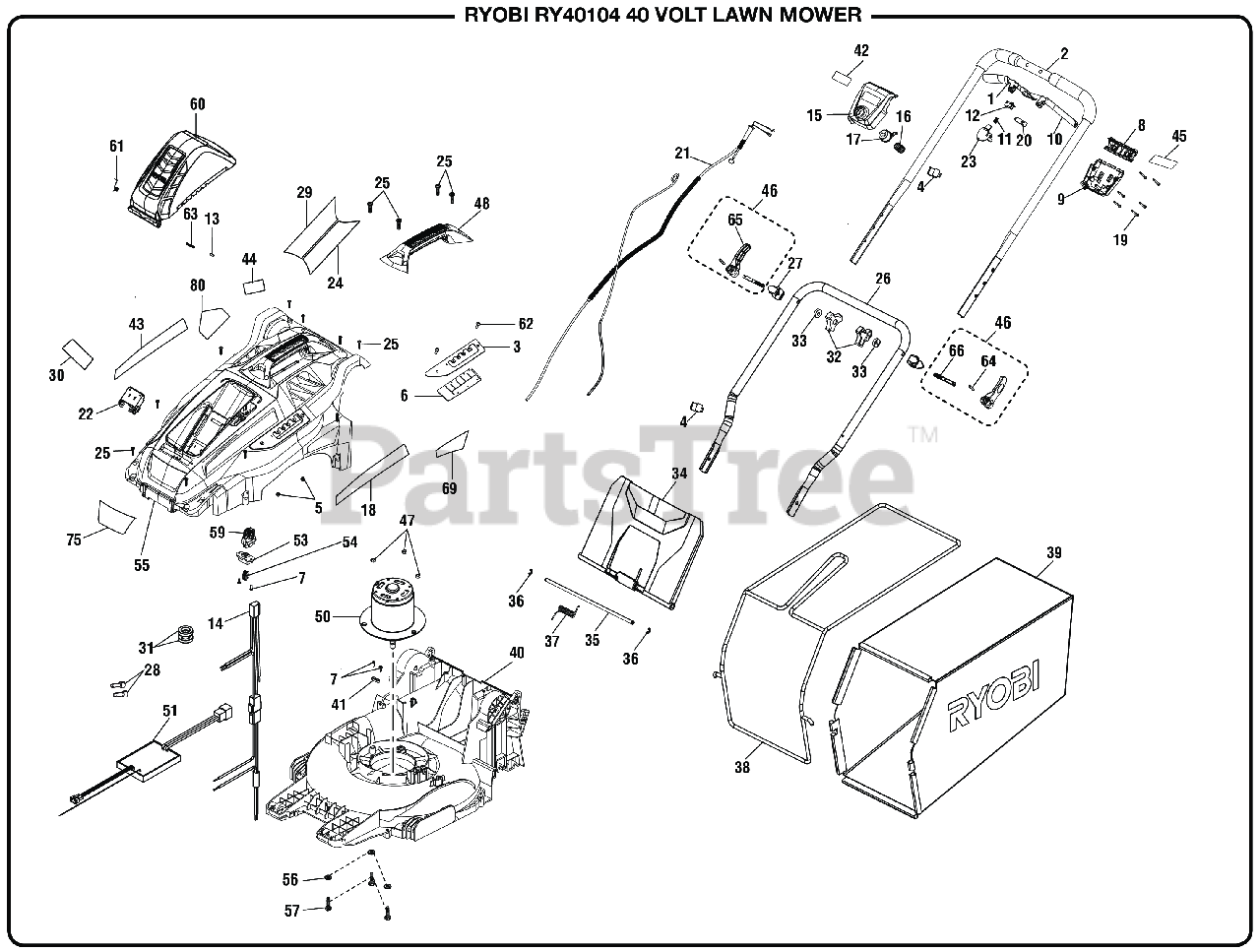

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 527969002

Trigger Handle (Right Power Lever)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 311404001

Upper Handle Assembly

$23.99

$

Usually ships in 3-7 days

0

3

Homelite 639193005

Height Adjustment Plate

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 526908001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 678509001

Lock Nut (M5 x 0.8 mm)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 570839002

Dust Gasket

$

$

Not available

7

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 527967001

Lower Cover (Stain Handle)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 527542002

Lower Cover (Trigger Housing)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 527970002

Trigger Handle (Left Power Lever)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 694218001

Compression Spring

$1.99

$

In Stock, Qty 5

0

12

Homelite 760279002

Switch

$4.49

$

Usually ships in 3-7 days

0

13

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

14

Homelite 291494001

Terminal Block w/Leads

$9.99

$

Usually ships in 3-7 days

0

15

Homelite 527966002

Upper Cover (Control Assembly)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 694136002

Handle Adjustment Spring

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 527968002

Safety Button

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 940851117

Lithium Label (Left)

$

$

Not available

19

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

20

Homelite 760536001

Switch

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 291516002

Starter Cable (Long)

$19.99

$

Usually ships in 3-7 days

0

22

Homelite 306786001

Battery Holder Assembly

$10.99

$

Usually ships in 3-7 days

0

23

Homelite 527816001

Switch Holder

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 941846008

Warning Icon Label (Right)

$

$

Not available

25

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, only 4 left!

0

26

Homelite 679987007

Lower Handle

$

$

Not available

27

Homelite 526905001

Pressure Block

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 790021001

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 941846007

Warning Icon Label (Left)

$

$

Not available

30

Homelite 940851143

Start Key Label (Eng)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 850122001

Ferrite Induct Ring

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 526906001

Knob

$2.99

$

In Stock, only 3 left!

0

33

Homelite 526907001

Block Washer

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 526857003

Rear Discharge Door

$6.99

$

In Stock, only 1 left!

0

35

Homelite 639200001

Rear Door Axle

$4.99

$

Usually ships in 3-7 days

0

36

Homelite 678880001

Retaining Ring (E)

$1.99

$

In Stock, only 2 left!

0

37

Homelite 679076001

Torsion Spring (Rear Door)

$2.49

$

In Stock, only 1 left!

0

38

Homelite 639183003

Bag Frame

$

$

Not available

39

Homelite 970699003

Bag

$44.99

$

In Stock, only 1 left!

0

40

Homelite 526854009

Deck

$110.99

$

Usually ships in 3-7 days

0

41

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940705269

Ryobi Logo Label (Handle)

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 940851118

Lithium Label (Right)

$

$

Not available

44

Homelite 941588116

Data Label

$

$

Not available

45

Homelite 940686159

Starting Instructions Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 350878001

Handle Lock Assembly

$1.49

$

In Stock, only 1 left!

0

47

Homelite 680196006

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 526874001

Handle

$6.99

$

Usually ships in 3-7 days

0

50

Homelite 741922002

Motor

$429.99

$

Usually ships in 3-7 days

0

51

Homelite 280705001

Soft Start Circuit Board

$184.99

$

Usually ships in 3-7 days

0

53

Homelite 526912001

Key Holder
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

54

Homelite 639178001

Female Terminal
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

55

Homelite 526856001

Deck Cover

$39.99

$

Usually ships in 3-7 days

0

56

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 311280001

Start Key

$7.49

$

In Stock, only 1 left!

0

60

Homelite 526855001

Battery Cover

$

$

Not available

61

Homelite 679074001

Torsion Spring (Battery Door)

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 660713001

SCREW (M5 x 16 mm SOC. WASHER HD. CAP)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

64

Homelite 679988001

Spring Pin

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 526904001

Adjust Height Handle

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 661865001

Quick Lock Press

$1.99

$

Usually ships in 3-7 days

0

69

Homelite 940851116

Cut Diameter Label (Left)

$1.99

$

Usually ships in 3-7 days

0

75

Homelite 940705179

Ryobi Logo Label (Handle)

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

Homelite OP4026

40V Lithium-ion Battery Pack

$

$

Currently unavailable

Homelite OP4015

40V Lithium-ion Battery Pack

$

$

Currently unavailable

Homelite OP4040

40V Lithium-ion Battery Pack

$

$

Currently unavailable

Homelite OP4050

40V Lithium-ion Battery Pack
(Superseded to 130302020DG9)

$

$

Not available

Homelite OP400

40V Battery Charger

$

$

Currently unavailable

Homelite OP401

40V Battery Charger

$

$

Currently unavailable

Homelite 991000690

Operator's Manual

$

$

Not available
