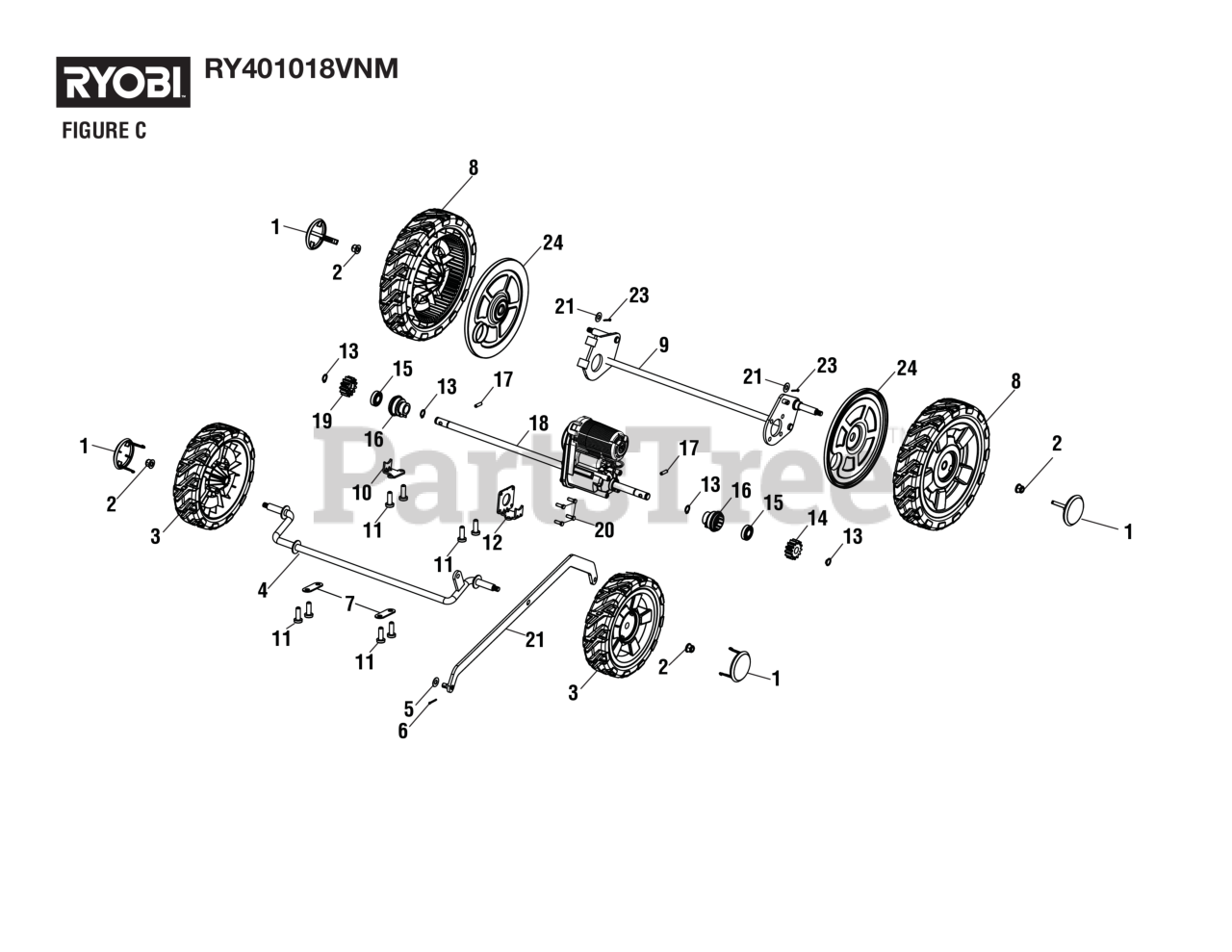

RY 401018 VNM (108674001) - Ryobi 20" 40V Walk-Behind Mower, Rev 01 (2022-01) FIGURE C Parts Diagram

20" 40V Walk-Behind Mower, Rev 01

FIGURE C Parts Diagram

  • Title

1

Homelite 542861001

Wheel Hub Cap

$1.99

$

In Stock, Qty 10

0

2

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.99

$

In Stock, Qty 5

0

3

Homelite 317161004

8 in. Wheel

$18.99

$

Usually ships in 3-7 days

0

4

Homelite 699599001

Front Wheel Axle

$27.99

$

Usually ships in 3-7 days

0

5

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.99

$

In Stock, only 1 left!

0

6

Homelite 678279004

Cotter PinÏ? (2.5)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 639116012

Front Axle Press Plate

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 317159003

10 in. Wheel w/Bushing Assembly

$49.99

$

Usually ships in 3-7 days

0

9

Homelite 699612001

Rear Wheel Axle

$65.99

$

Usually ships in 3-7 days

0

10

Homelite 656321001

Rear Axle Mount Plate

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 664004001

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)
(Superseded to 664004003)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 656131001

Transmissions Mounting Plate

$5.99

$

Usually ships in 3-7 days

0

13

Homelite 690698001

Retaining Ring

$1.99

$

In Stock, Qty 6

0

14

Homelite 613239005

Drive Gear, Left

$

$

Currently unavailable

15

Homelite 682164001

Ball Bearing (OD28.6 x ID12.7 x 8)

$3.99

$

In Stock, only 2 left!

0

16

Homelite 544086001

Rear Axle Bearing Cup

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 622068004

Drive Gear, Right

$

$

Currently unavailable

18

Homelite 210605001

GT Transmissions Assembly

$287.99

$

Usually ships in 3-7 days

0

19

Homelite 613239004

Drive Gear, Right

$

$

Currently unavailable

20

Homelite 660927002

Screw (M5 x 14.5 mm)
(Superseded to 099069001029)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 656079001

Connecting Bar

$43.99

$

Usually ships in 3-7 days

0

22

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.99

$

In Stock, only 1 left!

0

23

Homelite 678279004

Cotter PinÏ? (2.5)

$1.99

$

In Stock, only 1 left!

0

24

Homelite 535046002

Wheel Cover

$4.49

$

Usually ships in 3-7 days

0
