RY 401017 VNM (108753001) - Ryobi 20" 40V Walk-Behind Mower, Rev 01 (2022-01) FIGURE C Parts Diagram

20" 40V Walk-Behind Mower, Rev 01

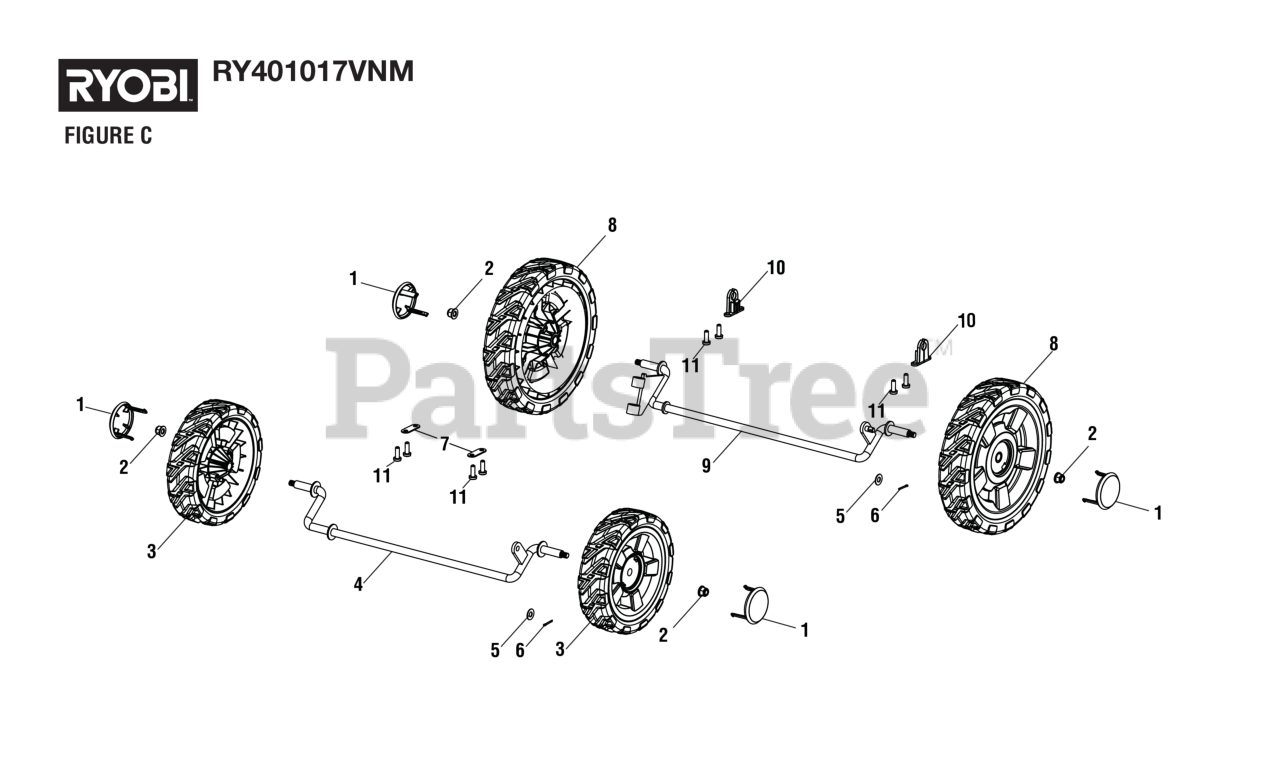

FIGURE C Parts Diagram

  • Title
1

Homelite 542861001

Wheel Hub Cap

$1.99

$

In Stock, Qty 10

0

2

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.99

$

In Stock, Qty 5

0

3

Homelite 317161004

8 in. Wheel

$18.99

$

Usually ships in 3-7 days

0

4

Homelite 699599001

Front Wheel Axle

$27.99

$

Usually ships in 3-7 days

0

5

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.99

$

In Stock, only 1 left!

0

6

Homelite 678279004

Cotter PinÏ? (2.5)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 639116012

Front Axle Press Plate

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 317159006

10 in. Wheel w/Bushing Assembly

$

$

Currently unavailable

9

Homelite 699600001

Rear Wheel Axle

$42.99

$

Usually ships in 3-7 days

0

10

Homelite 544872001

Rear Axle Mount Plate Bushing

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 664004001

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)
(Superseded to 664004003)

$1.99

$

Usually ships in 3-7 days

0
