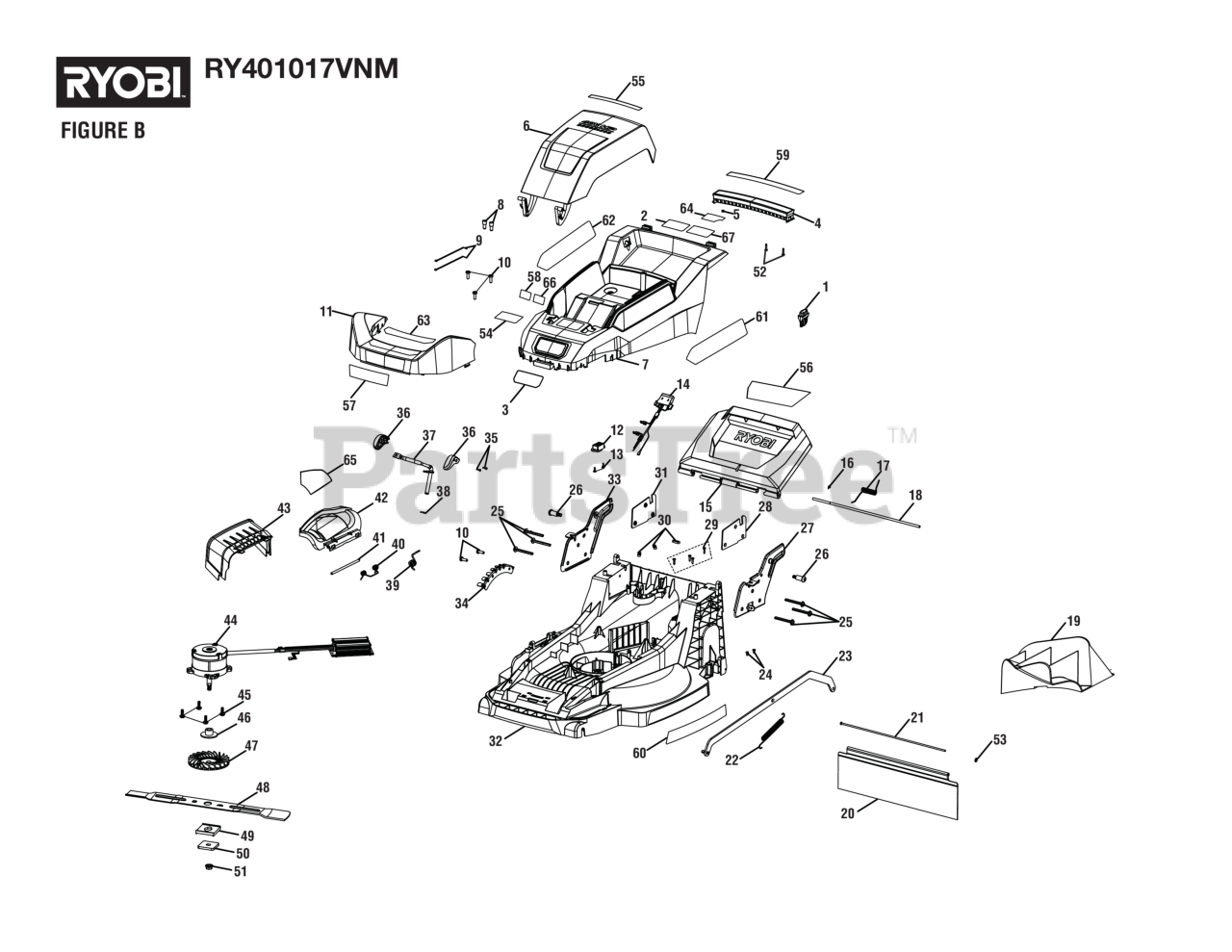

RY 401017 VNM (108753001) - Ryobi 20" 40V Walk-Behind Mower, Rev 01 (2022-01) FIGURE B Parts Diagram

20" 40V Walk-Behind Mower, Rev 01

FIGURE B Parts Diagram

  • Title

1

Homelite 311280001

Start Key

$7.49

$

In Stock, only 1 left!

0

2

Homelite 940779503

Battery Wet Conditions Label

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 940705552

Logo Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 205805001

Carry Handle

Note: (Inc. Key No. 59)

$8.99

$

Usually ships in 3-7 days

0

5

Homelite 613717001

Door Magnet

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 205803001

Battery Cover

Note: (Inc. Key No. 55)

$41.99

$

In Stock, only 2 left!

0

7

Homelite 205794001

Top Housing

Note: (Inc. Key Nos. 2-3, 7, 54, 58, 62 & 66-67)

$75.99

$

Usually ships in 3-7 days

0

8

Homelite 870601002

Close-End Connector

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 790055001

NYLON CABLE TIE

$

$

Not available

10

Homelite 664004001

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)
(Superseded to 664004003)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 205800001

Front Fender

Note: (Inc. Key Nos. 57 & 63)

$18.99

$

Usually ships in 3-7 days

0

12

Homelite 526912001

Key Holder
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

13

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

14

Homelite 292012002

Inner Wire Without Terminal

$22.99

$

Usually ships in 3-7 days

0

15

Homelite 205802001

Rear Door

Note: (Inc. Key No. 56)

$19.99

$

Usually ships in 3-7 days

0

16

Homelite 680260001

E-Ring

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 699832001

Rear Door Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 622946001

Rear Door Shaft

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 544164001

Mulching Plug

$12.99

$

Usually ships in 3-7 days

0

20

Homelite 535475001

Trailing Sheet

$23.99

$

In Stock, only 1 left!

0

21

Homelite 699702001

Trailing Sheet Rod

$3.99

$

In Stock, only 2 left!

0

22

Homelite 695152001

Retention Spring

$4.49

$

Usually ships in 3-7 days

0

23

Homelite 656079001

Connecting Bar

$43.99

$

Usually ships in 3-7 days

0

24

Homelite 660925011

Screw (M4 x 8 mm, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 3 left!

0

25

Homelite 663155001

Screw (M6 x 64 mm, T30 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

26

Homelite 663149001

Screw w/Shoulder (M8 x 35.7 mm, T45 Torx Pan Hd.)

$4.49

$

Usually ships in 3-7 days

0

27

Homelite 674279001

Handle Bracket (Left)

$31.99

$

Usually ships in 3-7 days

0

28

Homelite 656134001

Handle Bracket Nut Plate

$8.49

$

Usually ships in 3-7 days

0

29

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 656136001

Right Handle Bracket Nut

$8.49

$

Usually ships in 3-7 days

0

32

Homelite 543911001

Deck

Note: (Inc. Key No. 60)

$165.99

$

Usually ships in 3-7 days

0

33

Homelite 674280001

Right Handle Bracket

$31.99

$

Usually ships in 3-7 days

0

34

Homelite 656663001

Height Adjustment Plate

$10.99

$

Usually ships in 3-7 days

0

35

Homelite 660004019

Screw (M3 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 205804001

Height Adjustment Knob Assembly

$4.99

$

Usually ships in 3-7 days

0

37

Homelite 699604001

Height Adjustment Rod

$15.99

$

Usually ships in 3-7 days

0

38

Homelite 679044001

E-Ring

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 699669001

Height Adjustmen Rod Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 699603001

Side Discharge Cover Torsion Spring

$1.99

$

In Stock, Qty 5

0

41

Homelite 622893001

Side Discharge Shaft Cover

$2.49

$

In Stock, Qty 5

0

42

Homelite 205801001

Side Discharge

Note: (Inc. Key No.65)

$8.49

$

Usually ships in 3-7 days

0

43

Homelite 543958001

Side Discharge Chute

$8.49

$

Usually ships in 3-7 days

0

44

Homelite 292146004

Push Mower Controller Assembly

$306.99

$

Usually ships in 3-7 days

0

44

Homelite 292146005

Push Mower Controller Assembly

$482.99

$

Usually ships in 3-7 days

0

45

Homelite 663156001

Screw (M6 x 1 mm, T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 613427001

Motor Shaft Bushing

$7.99

$

In Stock, only 1 left!

0

47

Homelite 544676001

Motor Fan Blade Adapter

$5.99

$

Usually ships in 3-7 days

0

48

Homelite 656080003

20 in. Blade

$

$

Currently unavailable

49

Homelite 526920003

Plastic Blade Spacer

$1.99

$

In Stock, Qty 5

0

50

Homelite 639118002

Blade Spacer Metal Plate

$7.99

$

In Stock, only 2 left!

0

51

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

52

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

53

Homelite 659472001

Retaining Ring

$1.99

$

In Stock, only 3 left!

0

54

Homelite 941588964

Data Label (TUV)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 941588965

Data Label (UL)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 940779395

Icon Label

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 940779396

Danger Label (Bagger Door)

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 940779398

3-In-1 Front Label

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 940779399

Battery Storage Label

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 940779400

Carry Handle Accent Label

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 940779401

Deck 20in Side Label

$1.99

$

Usually ships in 3-7 days

0

61

Homelite 940779402

Brushless Logo Label

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 940779403

Brushless Logo Label

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 940779404

Push Front Bumper Label

$1.99

$

Usually ships in 3-7 days

0

64

Homelite 940779405

Qr Code Label

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

66

Homelite 940779476

Start Key Label (Spanish)

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 940779475

Start Key Label (French)

$1.99

$

Usually ships in 3-7 days

0
