RY 401015 US (107565001) - Ryobi 21" 40V Walk-Behind Mower, Rev 02 (2021-04) General Assembly Parts Diagram

21" 40V Walk-Behind Mower, Rev 02

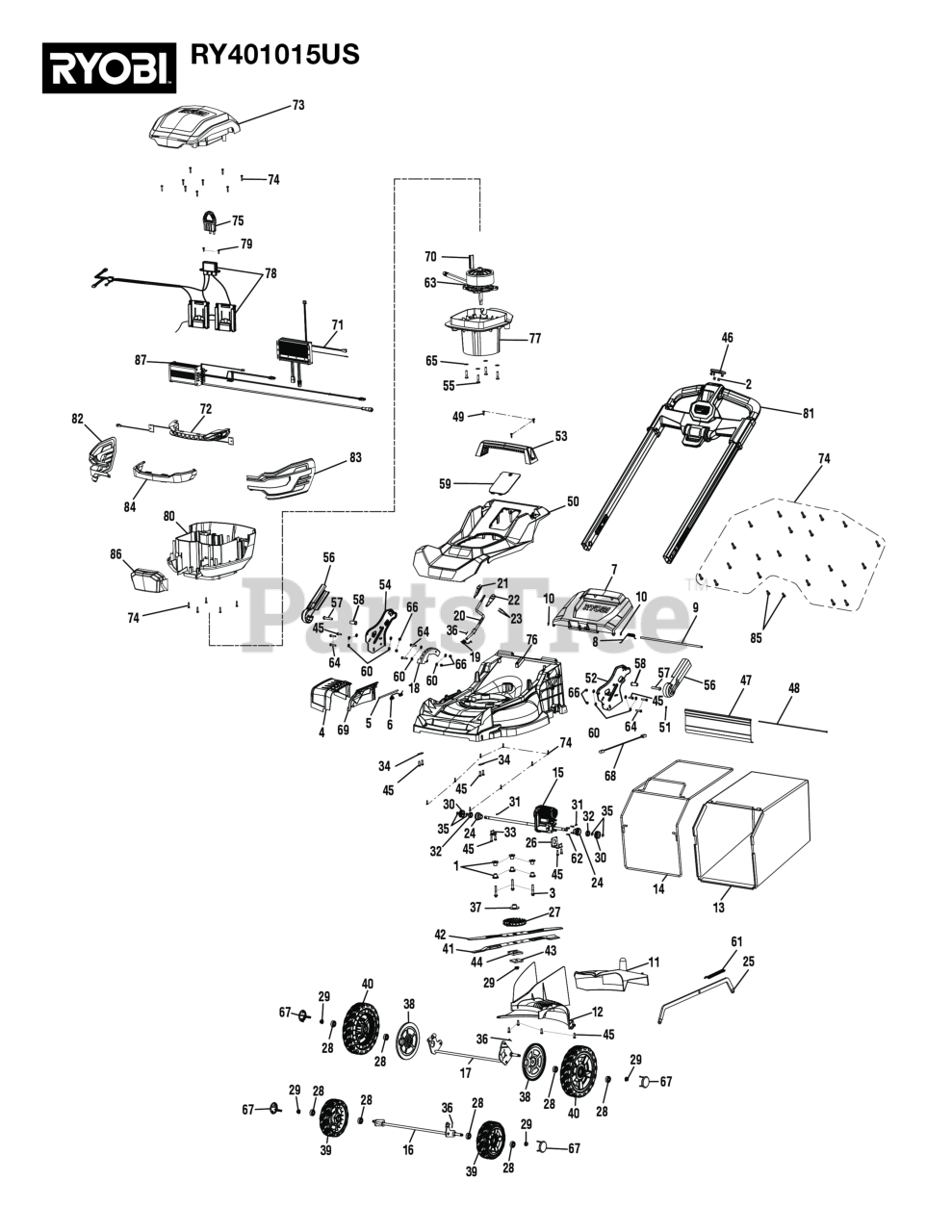

General Assembly Parts Diagram

  • Title

1

Homelite 614652001

Engine Spacer

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 699475001

Spring

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 661505033

Screw (M8 x 50 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 541644001

Side Charge Deflector

$8.49

$

Usually ships in 3-7 days

0

5

Homelite 698355001

Hinge Rod

$2.49

$

In Stock, only 2 left!

0

6

Homelite 699080002

Mulch Cover Spring

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 541381002

Rear Door

$12.99

$

Usually ships in 3-7 days

0

8

Homelite 698995001

Rear Door Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 622754001

Rear Door Axle

$5.49

$

Usually ships in 3-7 days

0

10

Homelite 678880001

Retaining Ring (E)

$1.99

$

In Stock, only 2 left!

0

11

Homelite 541643002

Mulching Plug

$10.99

$

In Stock, only 3 left!

0

12

Homelite 541380002

Discharge Baffle

$23.99

$

Usually ships in 3-7 days

0

13

Homelite 970834002

Grass Bag

$67.99

$

In Stock, only 1 left!

0

14

Homelite 659320002

Grass Bag Frame

$30.99

$

In Stock, only 2 left!

0

15

Homelite 210449007

Transmission

$

$

Not available

16

Homelite 659706001

Front Axle

$34.99

$

Usually ships in 3-7 days

0

17

Homelite 659707001

Rear Axle

$45.99

$

In Stock, only 1 left!

0

18

Homelite 659324003

Height Adjustment Bracket

$

$

Currently unavailable

19

Homelite 699325001

Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 658929002

Height Adjustment

$6.99

$

Usually ships in 3-7 days

0

21

Homelite 538937002

Height Adjustment Knob (Right)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 538938002

Height Adjustment Knob (Left)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 660004019

Screw (M3 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 614676002

Transmission Bearing Bushing

$4.99

$

Usually ships in 3-7 days

0

25

Homelite 659957001

Linkage

$28.99

$

Usually ships in 3-7 days

0

26

Homelite 659708001

Connecting Plate

$4.49

$

Usually ships in 3-7 days

0

27

Homelite 535080003

Motor Fan Blade Adapter

$

$

Not available

28

Homelite 681957001

Ball Bearing (ID12 x OD32 x 10 mm)

$4.99

$

Usually ships in 3-7 days

0

29

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

30

Homelite 613239001

Drive Gear

$3.49

$

In Stock, Qty 5

0

31

Homelite 622068001

Gear Shaft

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 682164001

Ball Bearing (OD28.6 x ID12.7 x 8)

$3.99

$

In Stock, only 2 left!

0

33

Homelite 639116011

Rear Axle Press Plate

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 639116012

Front Axle Press Plate

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 690698001

Retaining Ring

$1.99

$

In Stock, Qty 6

0

36

Homelite 678279004

Cotter PinÏ? (2.5)

$1.99

$

In Stock, only 1 left!

0

37

Homelite 613427001

Motor Shaft Bushing

$7.99

$

In Stock, only 1 left!

0

38

Homelite 535046001

Wheel Cover

$3.99

$

Usually ships in 3-7 days

0

39

Homelite 317161002

8 in. Wheel Assembly

$25.99

$

Usually ships in 3-7 days

0

40

Homelite 317160002

11 in. Wheel Assembly

$33.99

$

Usually ships in 3-7 days

0

41

Homelite 682534001

Blade

$

$

Not available

42

Homelite 682533001

21 in. Top Blade, Stepped

$

$

Not available

43

Homelite 639118002

Blade Spacer Metal Plate

$7.99

$

In Stock, only 2 left!

0

44

Homelite 526920003

Plastic Blade Spacer

$1.99

$

In Stock, Qty 5

0

45

Homelite 664004003

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 534988005

Blade Button

$1.99

$

Usually ships in 0 days

0

47

Homelite 541601002

Trailing Shield

$10.99

$

In Stock, only 1 left!

0

48

Homelite 674157001

Trailing Shield Pin

$1.49

$

In Stock, Qty 5

0

49

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Pan Hd. T.F.)

$1.99

$

In Stock, only 1 left!

0

50

Homelite 317812001

Top Cover w/Labels

$

$

Currently unavailable

51

Homelite 659472001

Retaining Ring

$1.99

$

In Stock, only 3 left!

0

52

Homelite 659747002

Handle Bracket (Left)

$30.99

$

Usually ships in 3-7 days

0

53

Homelite 537116002

Carry

$9.49

$

Usually ships in 3-7 days

0

54

Homelite 659746002

Handle Bracket (Right)

$43.99

$

In Stock, only 1 left!

0

55

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 538869002

Hinge Cover

$5.99

$

Usually ships in 3-7 days

0

57

Homelite 663110001

Screw (M10 x 48 mm, Hex. Recess Hd.)

$

$

Currently unavailable

58

Homelite 614861003

Handle Bushing

$

$

Currently unavailable

59

Homelite 542610001

Top Cover Door

$5.99

$

In Stock, only 1 left!

0

60

Homelite 638387005

Washer (1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 699325003

Compression Spring

$4.49

$

Usually ships in 3-7 days

0

62

Homelite 660927002

Screw (M5 x 14.5 mm)
(Superseded to 099069001029)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 742745001

Motor

$474.99

$

Usually ships in 3-7 days

0

64

Homelite 663126001

Screw (1/4-20UNC X 31.75 in., T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 678016006

Lock Nut (1/4-20 in.)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

67

Homelite 542861001

Wheel Hub Cap

$1.99

$

Usually ships in 3-7 days

0

68

Homelite 292305001

Inner Wire with Connector Between Transmission and Circuit Board Assembly

$21.99

$

In Stock, only 1 left!

0

69

Homelite 541361003

Side Discharge Door

$3.99

$

Usually ships in 3-7 days

0

70

Homelite 542614001

Wire Harness Cover

$1.99

$

Usually ships in 3-7 days

0

71

Homelite 285001002

Cutting Controller Assembly

$151.99

$

In Stock, only 2 left!

0

72

Homelite 318032001

LED Circuit Board Assembly

$33.99

$

Usually ships in 0 days

0

73

Homelite 317814001

Battery Cover Assembly (Inc. Labels)

$

$

Currently unavailable

74

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

75

Homelite 318030001

Start Key Assembly

$9.49

$

Usually ships in 0 days

0

76

Homelite 317813001

Deck Assembly (Inc. Labels)

$

$

Not available

77

Homelite 535014003

Motor Bucket

$19.99

$

Usually ships in 3-7 days

0

78

Homelite 318031001

Key Base and Battery Foot Assembly

$65.99

$

Usually ships in 0 days

0

79

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

80

Homelite 535005002

Battery Housing Bottom

$42.99

$

Usually ships in 3-7 days

0

81

Homelite 317168001

Handle Assembly

$375.99

$

Usually ships in 3-7 days

0

82

Homelite 535007001

Battery Housing Front Vents (Right)

$8.49

$

Usually ships in 3-7 days

0

83

Homelite 535006001

Battery Housing Front Vents (Left)

$8.49

$

Usually ships in 3-7 days

0

84

Homelite 535081001

LED Clear Window Lens

$2.49

$

Usually ships in 3-7 days

0

85

Homelite 661189002

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

86

Homelite 536862001

Battery Housing Front Plug Cover

$4.49

$

Usually ships in 3-7 days

0

87

Homelite 280999002

Control Board Assembly

$112.99

$

Usually ships in 3-7 days

0

Homelite 543394002

Wire Harness Clip

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000428

Operator's Manual (960087588)

Note: Not Shown

$

$

Currently unavailable
