RY 401013 VNM (108607101) - Ryobi 40V Walk-Behind Mower, Rev 01 (2020-06) General Assembly 1 Parts Diagram

40V Walk-Behind Mower, Rev 01

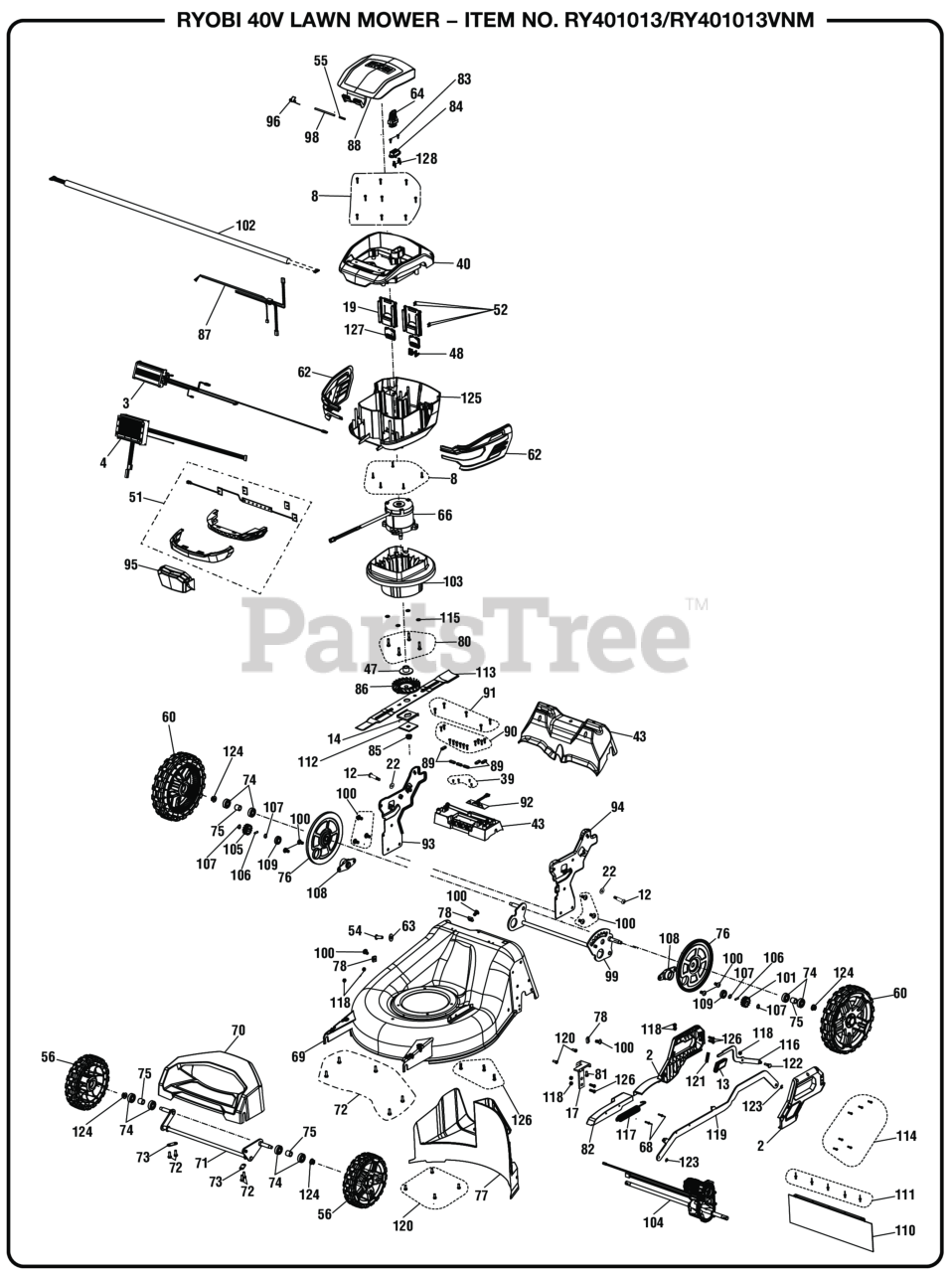

General Assembly 1 Parts Diagram

  • Title

2

Homelite 205218001

Deck Height Adjustment Housing

$8.99

$

Usually ships in 3-7 days

0

3

Homelite 280749004

Deck Height Adjustment Housing (Inc. Labels)

$187.99

$

Usually ships in 3-7 days

0

4

Homelite 280747005

?Drive Motor Controller

$167.99

$

Usually ships in 3-7 days

0

8

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

12

Homelite 661706002

Screw (M8 x 33 mm, Hex Hd.)

$

$

Currently unavailable

13

Homelite 535022001

Height Adjustment Trigger

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 535079002

Spacer

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 639116010

Transmission Mount

$4.99

$

Usually ships in 3-7 days

0

19

Homelite 535272001

40V Foot

$3.49

$

Usually ships in 3-7 days

0

22

Homelite 636233001

Washer (ID8.5 x OD20.5 x 2 mm x 2t)

$1.99

$

In Stock, only 4 left!

0

39

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

40

Homelite 205377001

Top Battery Housing Cover (Inc. Labels)

$

$

Currently unavailable

43

Homelite 205224001

Bag Hanger

$15.99

$

Usually ships in 3-7 days

0

47

Homelite 639120001

Motor Shaft Bushing

$5.99

$

In Stock, only 1 left!

0

48

Homelite 639491001

Common Foot Contact Plate

$3.49

$

Usually ships in 3-7 days

0

51

Homelite 314364001

LED Circuit Board Assembly

$28.99

$

Usually ships in 3-7 days

0

52

Homelite 660230011

Screw (M3 x 10 mm, T10 Torx Hd.)

$

$

Currently unavailable

54

Homelite 696138001

Rivet

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

56

Homelite 313618001

8 in. Wheel Assembly

$21.99

$

Usually ships in 3-7 days

0

60

Homelite 313619001

10 in. Wheel Assembly

$26.99

$

Usually ships in 3-7 days

0

62

Homelite 205219001

Battery Housing Vent Assembly

$6.99

$

Usually ships in 3-7 days

0

63

Homelite 678125001

Washer (ID 4.3 x OD12 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

64

Homelite 205374001

Key Assembly (Inc. Hangtag)

$

$

Currently unavailable

66

Homelite 742461001

40V-DC Motor

$613.99

$

Usually ships in 3-7 days

0

68

Homelite 678002002

Al Rivet

$1.99

$

Usually ships in 3-7 days

0

69

Homelite 205193001

21 in. Deck Assembly

$176.99

$

Usually ships in 3-7 days

0

70

Homelite 205375001

Front Bumper Cover Assembly (Inc. Label)

$

$

Currently unavailable

71

Homelite 635490001

Front Axle.

$33.99

$

Usually ships in 3-7 days

0

72

Homelite 664004001

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)
(Superseded to 664004003)

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 635512001

Front Axle Mount

$1.99

$

Usually ships in 3-7 days

0

74

Homelite 681957001

Ball Bearing (ID12 x OD32 x 10 mm)

$4.99

$

Usually ships in 3-7 days

0

75

Homelite 613958001

Wheel Bushing

$1.99

$

Usually ships in 3-7 days

0

76

Homelite 535046001

Wheel Cover

$3.99

$

Usually ships in 3-7 days

0

77

Homelite 535047001

Baffle

$33.99

$

Usually ships in 3-7 days

0

78

Homelite T662406001

Square Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

81

Homelite 661861001

Screw w/Washer (M4 x 8 mm)

$1.99

$

Usually ships in 3-7 days

0

82

Homelite 537792001

Spring Cover

$3.49

$

Usually ships in 3-7 days

0

83

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

84

Homelite 526912001

Key Holder
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

85

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

86

Homelite 535080001

Motor Fan Blade Adapter

$3.99

$

In Stock, only 1 left!

0

87

Homelite 291975001

Inner Wire w/Terminal

$20.99

$

In Stock, only 1 left!

0

88

Homelite 313626002

Battery Cover Assembly

$

$

Not available

89

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

90

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$1.99

$

Usually ships in 3-7 days

0

91

Homelite 660970001

Screw w/Washer (M4 x 16 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

92

Homelite 280751002

Signal Conversion Interface Board

$19.99

$

Usually ships in 3-7 days

0

93

Homelite 658905001

Handle Bracket (Right)

$38.99

$

Usually ships in 3-7 days

0

94

Homelite 658906001

Handle Bracket (Left)

$38.99

$

Usually ships in 3-7 days

0

95

Homelite 205194001

Plug Cover Battery Housing (Front)

$2.49

$

Usually ships in 3-7 days

0

96

Homelite 696934001

Battery Clear Cover Spring

$1.99

$

Usually ships in 3-7 days

0

98

Homelite 622330001

Pin

$1.99

$

Usually ships in 3-7 days

0

99

Homelite 635489001

Rear Axle w/Height Adjustment Plate

$61.99

$

Usually ships in 3-7 days

0

100

Homelite 662160001

Screw (M8 x 16 mm, T40 Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

101

Homelite 613239005

Drive Gear, Left

$

$

Currently unavailable

102

Homelite 291977002

Main Wiring Harness

$14.99

$

Usually ships in 3-7 days

0

103

Homelite 535014001

Motor Mount

$30.99

$

Usually ships in 3-7 days

0

104

Homelite 312456007

Driven System Assembly

$91.99

$

Usually ships in 3-7 days

0

105

Homelite 613239004

Drive Gear, Right

$

$

Currently unavailable

106

Homelite 622068004

Drive Gear, Right

$

$

Currently unavailable

107

Homelite 690698001

Retaining Ring

$1.99

$

In Stock, Qty 6

0

108

Homelite 613738001

Drive Axle Bearing Sleeve

$16.99

$

Usually ships in 3-7 days

0

109

Homelite 682164001

Ball Bearing (OD28.6 x ID12.7 x 8)

$3.99

$

In Stock, only 2 left!

0

110

Homelite 535061001

Rear Guard

$20.99

$

Usually ships in 3-7 days

0

111

Homelite 673179002

STEEL RIVET DIA 3.9 X 8MM

$

$

Not available

112

Homelite 639118001

Metal Blade Retainer

$3.49

$

Usually ships in 3-7 days

0

113

Homelite 682282001

21 in. Blade

$38.99

$

In Stock, only 2 left!

0

114

Homelite 660024061

ST SCREW,STEEL CH M4.0X1.8 PH TORX

$1.99

$

Usually ships in 3-7 days

0

115

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

116

Homelite 635495001

Height Adjustment Hook

$12.99

$

Usually ships in 3-7 days

0

117

Homelite 696924001

Extension Spring

$7.99

$

Usually ships in 3-7 days

0

118

Homelite 678460002

Lock Nut (M6 x 6 mm)

$1.99

$

Usually ships in 3-7 days

0

119

Homelite 635496001

Height Adjustment Linkage

$28.99

$

Usually ships in 3-7 days

0

120

Homelite 661431003

Screw (M6 x 14 mm, Hex Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

121

Homelite 697164001

Height Adjustment Trigger Spring

$1.99

$

Usually ships in 3-7 days

0

122

Homelite 660353001

Clutch Shoulder Bolt (M6 x 22.5 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

123

Homelite 637087001

E-Ring (ID 6 mm)

$1.99

$

Usually ships in 3-7 days

0

124

Homelite 662082001

Lock Nut (3/8-16, Flange)

$1.99

$

Usually ships in 3-7 days

0

125

Homelite 535005001

Battery Housing (Bottom)

$29.99

$

Usually ships in 3-7 days

0

126

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.99

$

In Stock, only 1 left!

0

127

Homelite 532760002

Common Foot Cover

$1.99

$

Usually ships in 3-7 days

0

128

Homelite 639178001

Female Terminal
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

Homelite 995000685

Operator's Manual

Note: NOT SHOWN

$

$

Not available
