RY 401011 (107204001) - Ryobi 20" 40V Walk-Behind Mower, Rev 04 (2021-09) FIGURE B Parts Diagram

20" 40V Walk-Behind Mower, Rev 04

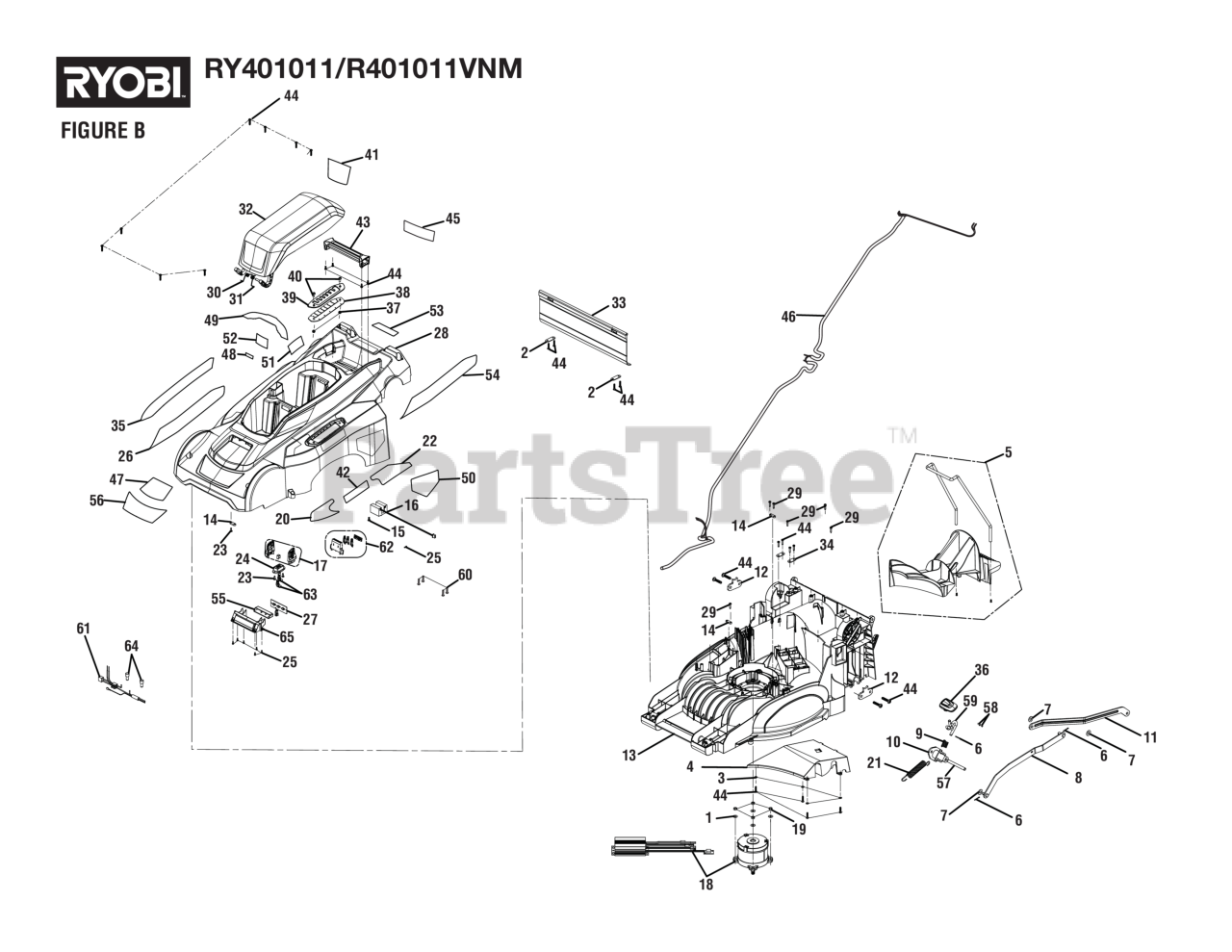

FIGURE B Parts Diagram

  • Title

1

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 639116003

Axle Pressure Plate

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 636062001

Washer (ID4.5 x OD10 x 1t)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 527548003

Baffle

$9.49

$

Usually ships in 3-7 days

0

5

Homelite 205206001

Mulch Plug Assembly (Inc. Key No. 6)

Note: (Inc. Key No. 20)

$30.99

$

Usually ships in 3-7 days

0

6

Homelite 678279004

Cotter PinÏ? (2.5)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 673931001

Forward Linkage

$7.99

$

Usually ships in 3-7 days

0

9

Homelite 679992001

Torsion Spring (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 639203003

Height Adjustment Bracket

$7.99

$

In Stock, only 1 left!

0

11

Homelite 635379005

Rear Lift Rod

$27.99

$

Usually ships in 3-7 days

0

12

Homelite 639116002

Axle Mount
(Superseded to 642291001)

$

$

Not available

13

Homelite 529757002

Deck
(Superseded to 531172002)

$

$

Not available

14

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Button Hd.)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 890050001

SENSOR SWITCH FOR GRASS BAG

$

$

Not available

17

Homelite 205279001

START KEY W/ HANG TAG

$9.49

$

Usually ships in 3-7 days

0

18

Homelite 292146001

MOTOR 10035#, CONTROLLER ASSEMBLE,HUAJIE

$415.99

$

Usually ships in 3-7 days

0

19

Homelite 680196006

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 941851272

LABEL, FRONT BLACK ACCENT

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 694052001

Rentention Spring

$3.49

$

Usually ships in 3-7 days

0

22

Homelite 941851276

LABEL, SINGLE POINT HEIGHT ADJUSTMENT

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

24

Homelite 526912001

Key Holder
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

25

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

26

Homelite 941851266

LABEL, RIGHT ""BRUSHLESS 20IN""

$4.49

$

Usually ships in 3-7 days

0

27

Homelite 280821001

LED PCBA

$17.99

$

Usually ships in 3-7 days

0

28

Homelite 205278001

TOP COVER W/ LABELS

Note: (Inc. Key Nos. 22, 26, 28, 35, 42, 45, 47-49, 50-56 & 67)

$118.99

$

Usually ships in 3-7 days

0

29

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 697546001

Battery Door Right Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 697547001

Battery Door Left Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 205204001

Battery Cover (Inc. Key Nos. 80 & 124)

Note: (Inc. Key No. 41)

$27.99

$

Usually ships in 3-7 days

0

33

Homelite 534779001

Rear Protective Guard

$20.99

$

Usually ships in 3-7 days

0

34

Homelite 639125002

Pressure Plate (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 941851270

LABEL, SIDE BLACK ACCENT

$2.99

$

Usually ships in 3-7 days

0

36

Homelite 529656003

Height Adjustment Handle

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 678509001

Lock Nut (M5 x 0.8 mm)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 563454001

Shifter Boot

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 635382001

Height Adjustment Plate

$5.49

$

Usually ships in 3-7 days

0

40

Homelite 660713001

SCREW (M5 x 16 mm SOC. WASHER HD. CAP)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 941016024

Main Warning Label (Part 2)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 941851275

LABEL, CUT HEIGHT

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 537116001

Carry Handle

$2.99

$

Usually ships in 3-7 days

0

44

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 6

0

45

Homelite 941016021

Main Warning Label (Part 1)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 292139001

CORD, 3PCS INNER WIRE AND PLUG ASSY

$10.99

$

In Stock, only 1 left!

0

47

Homelite 941016027

Ryobi 40V Lithium Label

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 940851500

Onboard Battery Storage Label

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 941016032

Start Key Warning Label

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

51

Homelite 941851267

LABEL, DATA, RY401110

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 941061031

Wet Condition Battery Warning Label

$

$

Currently unavailable

53

Homelite 941511038

Attachment User Callout Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 941851274

LABEL, LEFT ""BRUSHLESS 20IN""

$4.49

$

Usually ships in 3-7 days

0

55

Homelite 537117001

Light Reflector

$6.99

$

Usually ships in 3-7 days

0

56

Homelite 941851265

LABEL, FRONT ""BRUSHLESS""

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 639122001

Axle (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 664021001

Screw (M3 x 9 mm, Flat Hd.)

$

$

Not available

59

Homelite 637031003

Lever Arm

$4.99

$

Usually ships in 3-7 days

0

60

Homelite 661189002

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

61

Homelite 291560005

NLA(NO LONGER AVAILABLE)

$

$

Not available

62

Homelite 311209001

Battery Hold Assembly

$

$

Not available

63

Homelite 639178001

Female Terminal
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

64

Homelite 870601002

Close-End Connector

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 537118001

LED Cover

$2.99

$

Usually ships in 3-7 days

0
