RY 401011 (107204001) - Ryobi 20" 40V Walk-Behind Mower, Rev 04 (2021-09) FIGURE A Parts Diagram

20" 40V Walk-Behind Mower, Rev 04

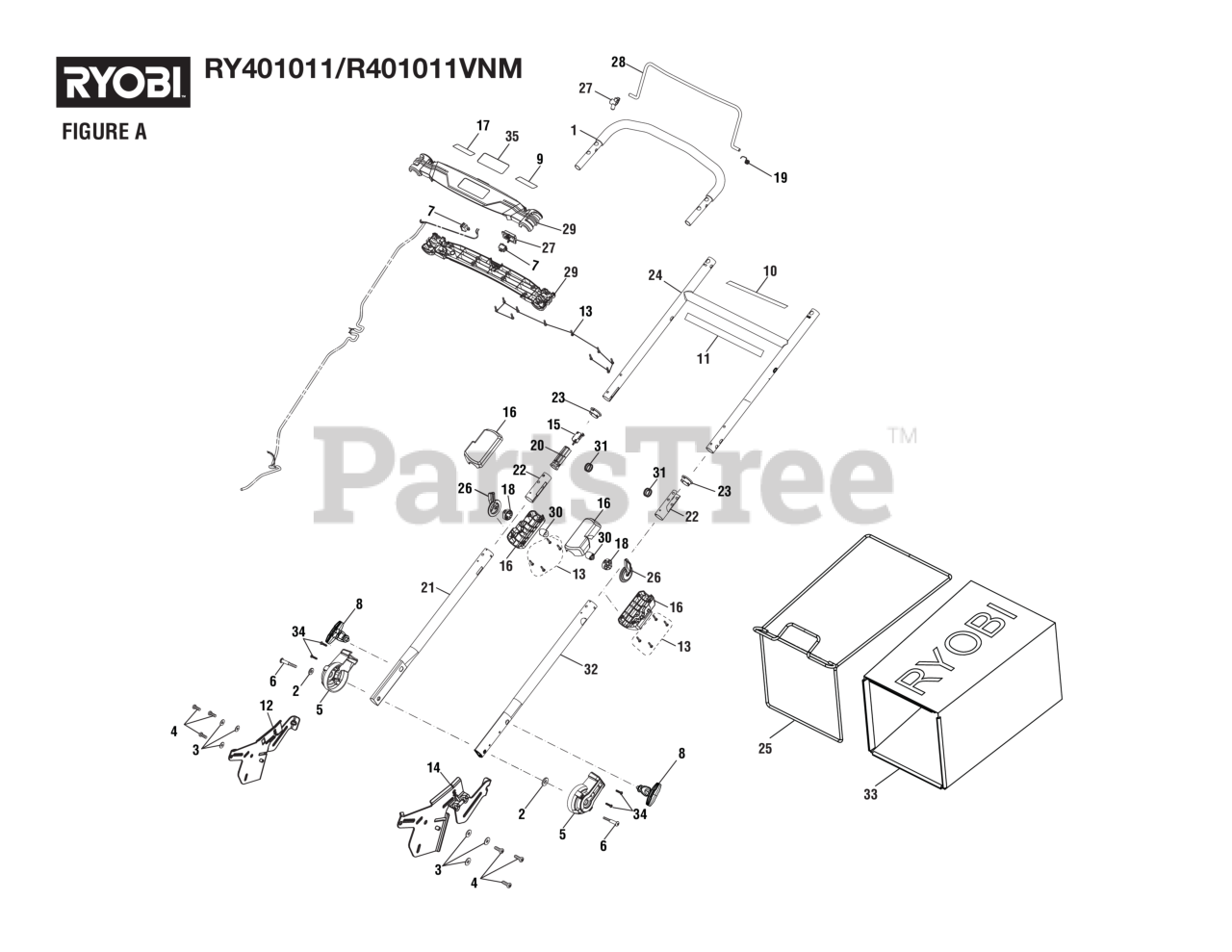

FIGURE A Parts Diagram

  • Title

1

Homelite 311313001

Upper Handle Assembly

$

$

Not available

2

Homelite 636233001

Washer (ID8.5 x OD20.5 x 2 mm x 2t)

$1.99

$

In Stock, only 4 left!

0

3

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

4

Homelite 664004003

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 538869001

HINGE SHROUD

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 661706002

Screw (M8 x 33 mm, Hex Hd.)

$

$

Currently unavailable

7

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

8

Homelite 311620004

SPRING PIN ADJUSTMENT ASSEMBLY

$13.99

$

In Stock, only 2 left!

0

9

Homelite 940851133

Start Label (Left)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 940851125

Lithium Label

$

$

Currently unavailable

11

Homelite 940851178

Handle Extended Label

$

$

Currently unavailable

12

Homelite 658716001

STAMPING, RIGHT HANDLE BRACKET

$30.99

$

In Stock, only 1 left!

0

13

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

14

Homelite 658717001

STAMPING, LEFT HANDLE BRACKET

$30.99

$

Usually ships in 3-7 days

0

15

Homelite 760551002

Switch

$4.49

$

In Stock, only 2 left!

0

16

Homelite 205213001

Handle Latch Assembly

$12.99

$

In Stock, only 2 left!

0

17

Homelite 940851127

Start Label (Right)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 536919002

Disc Holder

$1.99

$

In Stock, only 4 left!

0

19

Homelite 695036001

Torsion Spring

$

$

Not available

20

Homelite 533467001

Switch Plug Housing

$1.99

$

In Stock, Qty 5

0

21

Homelite 698135001

STEEL TUBE,LOW RIGHT HANDLE TUBE

$17.99

$

Usually ships in 3-7 days

0

22

Homelite 537295001

Handle Tube Bushing

$1.99

$

In Stock, only 1 left!

0

23

Homelite 529327001

Handle Tube Bushing (Small)

$1.99

$

In Stock, Qty 5

0

24

Homelite 205276001

UPPER HANDLE TUBE W/ LABEL

Note: (Inc. Key Nos. 10-11)

$47.99

$

Usually ships in 3-7 days

0

25

Homelite 658015002

FRAME, 20 INCH GRASS BAG, BLACK

$

$

Not available

26

Homelite 536916003

Handle Latch

$2.49

$

In Stock, only 1 left!

0

27

Homelite 205275001

ACTUATOR SWITCH AND SAFETY BUTTON ASSEMB

$4.99

$

Usually ships in 3-7 days

0

28

Homelite 695004003

Bail Handle

$6.99

$

Usually ships in 3-7 days

0

29

Homelite 205274001

UPPER HANDLE SUPPORT ASSEMBLY W/ LABELS

Note: (Inc. Key Nos. 9, 17 & 35)

$43.99

$

Usually ships in 3-7 days

0

30

Homelite 565045001

Side Compression Disc

$1.99

$

In Stock, Qty 5

0

31

Homelite 697483001

Handle Compression Spring

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 698136001

STEEL TUBE,LOW LEFT HANDLE TUBE

$17.99

$

Usually ships in 3-7 days

0

33

Homelite 903775001

GRASS BAG

$34.99

$

Usually ships in 3-7 days

0

34

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, only 4 left!

0

35

Homelite 940020026

Logo Label (Guard)

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000921

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
