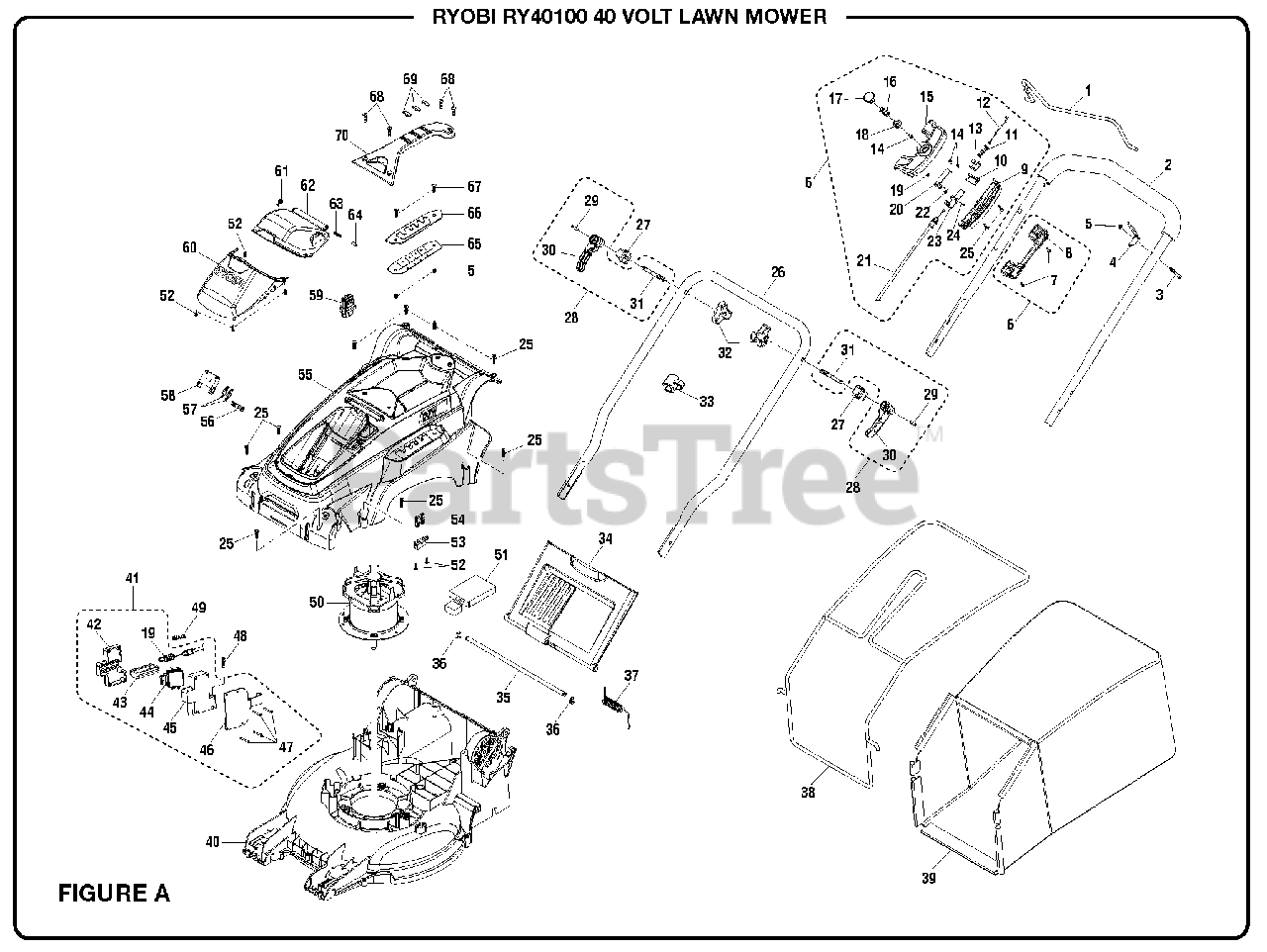

RY 40100 - Ryobi 40V Walk-Behind Mower Figure A (Part 1) Parts Diagram

40V Walk-Behind Mower

Figure A (Part 1) Parts Diagram

  • Title

1

Homelite 33305469G

Bail Handle (Power Lever)

$

$

Not available

2

Homelite 31101470G

Upper Handle Assembly

$

$

Not available

3

Homelite 32208250G

Bolt (M5 x 30 mm, Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

4

Homelite 33323250G

Stop Block

$1.49

$

In Stock, only 2 left!

0

5

Homelite 3220439G

Lock Nut (M5)

$1.49

$

In Stock, only 2 left!

0

6

Homelite 31107250G

Motor/Blade Control Assembly

$

$

Not available

7

Homelite 3220346G

Screw (M4.2 x 20 mm, Pan Hd.)

$

$

Not available

8

Homelite 34119469G

Lower Cover (Upper Handle)

$

$

Not available

9

Homelite 34120469G

Lower Cover (Starter Cables)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 34118250G

Block

$

$

Not available

11

Homelite 33318250G

Compression Spring

$1.49

$

In Stock, only 1 left!

0

12

Homelite 31901250G

Starter Cable( (Short)

$

$

Not available

13

Homelite 33319250G

Slide (Short Cable)

$

$

Not available

14

Homelite 3220735G

Screw (M3 x 8 mm, Pan Hd.)

$

$

Not available

15

Homelite 34121469G

Upper Cover (Control Assembly)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 33401229G

Button Return Spring

$

$

Not available

17

Homelite 34122469G

Start Button

$

$

Not available

18

Homelite 34132250G

Lower Button

$

$

Not available

19

Homelite 32904250G

Hex Nut (M3)

$

$

Not available

20

Homelite 33315250G

Spring Plate

$

$

Not available

21

Homelite 31902250G

Starter Cable (Long)

$

$

Not available

22

Homelite 33316250G

Torsion Spring

$

$

Not available

23

Homelite 33317250G

Slide (Long Cable)

$

$

Not available

24

Homelite 32204250G

Screw (M3 x 20 mm, Pan Hd.)

$

$

Not available

25

Homelite 32204113G

Screw (M3.5 x 20 mm, Pan Hd.)

$

$

Not available

26

Homelite 33309470G

Lower Handle

$

$

Not available

27

Homelite 34103466G

Pressure Block

$

$

Not available

28

Homelite 31102467G

Handle Lock Assembly

$

$

Not available

29

Homelite 32901466G

Spring Pin (5 x 26 mm)

$

$

Not available

30

Homelite 34102466G

Lock Handle

$

$

Not available

31

Homelite 33201466G

Bolt (M8 x 70 mm)

$

$

Not available

32

Homelite 3410835G

Knob

$

$

Not available

33

Homelite 3411135G

Cable Retainer

$

$

Not available

34

Homelite 34102470G

Rear Discharge Door

$

$

Not available

35

Homelite 33202470G

Rear Door Axle

$

$

Not available

36

Homelite 3290506G

Retaining Ring (E)

$

$

Not available

37

Homelite 33903470G

Torsion Spring (Rear Door)

$

$

Not available

38

Homelite 33311470G

Bag Frame

$

$

Not available

39

Homelite 34901470G

Bag

$

$

Not available

40

Homelite 34101470G

Deck

$

$

Not available

41

Homelite 31106250G

Switch Box Assembly

$

$

Not available

42

Homelite 34134250G

Switch Upper Cover

$

$

Not available

43

Homelite 34114250G

Switch Actuator

$

$

Not available

44

Homelite 36301470G

Switch

$

$

Not available

45

Homelite 34113250G

Switch Lower Cover

$

$

Not available

46

Homelite 33325250G

Mounting Bracket

$

$

Not available

47

Homelite 32205404G

Screw (M4.2 x 35 mm, Pan Hd.)

$

$

Not available

48

Homelite 32201154G

Screw (M4.2 x 45 mm, Pan Hd.)

$

$

Not available

49

Homelite 33332250G

Return Spring

$

$

Not available

50

Homelite 36101470G

Motor

$

$

Not available

51

Homelite 36201470G

Soft Start Circuit Board

$

$

Not available

52

Homelite 32202301AG

Screw (M2.9 x 10 mm)

$1.49

$

In Stock, only 1 left!

0

53

Homelite 34107470G

Key Holder

$

$

Not available

54

Homelite 36511470G

Key Receptacle

$

$

Not available

55

Homelite 34108470G

Deck Cover

$

$

Not available

56

Homelite 34115470G

Press Cover (Battery Connect)

$

$

Not available

57

Homelite 33314470G

Plate (Battery Connect)

$

$

Not available

58

Homelite 34114470G

Base (Battery Connect)

$

$

Not available

59

Homelite 31201470G

Fuse Key

$

$

Not available

60

Homelite 34111470G

Battery Cover

$

$

Not available

61

Homelite 33905470G

Torsion Spring (Battery Door)

$

$

Not available

62

Homelite 34110470G

Battery Door

$

$

Not available

63

Homelite 33904470G

Pressure Spring

$

$

Not available

64

Homelite 33203470G

Battery Door Axle

$

$

Not available

65

Homelite 34202470G

Dust Gasket

$

$

Not available

66

Homelite 33312470G

Height Adjustment Plate

$

$

Not available

67

Homelite 3220206G

Screw (M5 x 16 mm, Pan Hd.)

$

$

Not available

68

Homelite 3220245G

Screw (M5 x 20 mm, Pan Hd.)

$

$

Not available

69

Homelite 34116470G

Handle Overlay

$

$

Not available

70

Homelite 34112470G

Carrying Handle

$

$

Not available
