RY 40051 VNM (316199001) - Ryobi Pole Saw Attachment, Rev 03 (2020-06) General Assembly Parts Diagram

Pole Saw Attachment, Rev 03

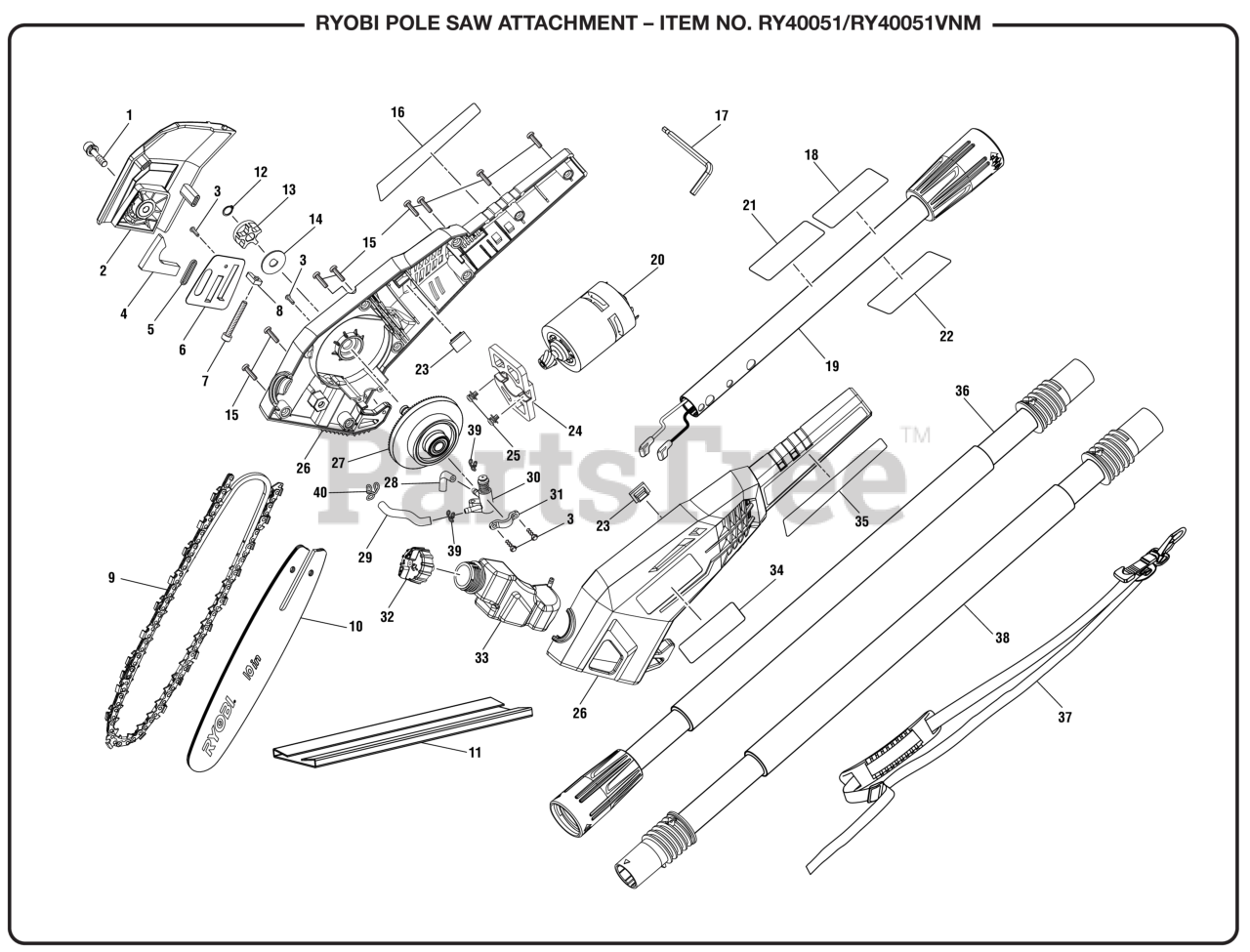

General Assembly Parts Diagram

  • Title

1

Homelite 660058008

Screw w/Washer (M6 x 25 mm, Rd. Hd. )

$1.99

$

In Stock, only 2 left!

0

2

Homelite 551066001

Chain Cover Assembly

$5.49

$

In Stock, only 1 left!

0

3

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

4

Homelite 570821001

Chain Cover Seal Ring

$1.99

$

In Stock, Qty 5

0

5

Homelite 570820001

Oil Outlet Seal Ring

$1.99

$

In Stock, only 4 left!

0

6

Homelite 634561001

Guide Bar Plate

$1.99

$

In Stock, only 2 left!

0

7

Homelite 661816001

Screw (M5 x 37 mm, Soc. Hd.)

$1.18

$

Usually ships in 3-7 days

0

8

Homelite 678356002

Adjustment Block

$1.99

$

In Stock, only 4 left!

0

9

Homelite 693814001

Chain (10 in.)

$22.99

$

In Stock, only 1 left!

0

10

Homelite 311278001

Guide Bar

$

$

Not available

11

Homelite 518405001

Scabbard

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 670608002

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

13

Homelite 610323001

Sprocket

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 690733001

Cover Plate (Internal "D" Washer)

$1.99

$

In Stock, Qty 8

0

15

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

16

Homelite 941851095

40V Lithium Label (Right)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 680002008

Hex Key (5 mm)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 941851096

Icon Warning Label (English)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 316315001

Upper Pole Assembly

$

$

Currently unavailable

20

Homelite 311070002

Motor Assembly

$76.99

$

Usually ships in 3-7 days

0

21

Homelite 941588607

Data Label

$

$

Currently unavailable

22

Homelite 941851098

Warning Label (French/Spanish)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 570115001

Rubber Bumper

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 642037001

Mounting Plate

$6.49

$

Usually ships in 3-7 days

0

25

Homelite T661845001

Screw w/Washer (M5 x 9 mm, Pan Hd.)

$

$

Not available

26

Homelite 314757001

Motor Housing Assembly

$

$

Not available

27

Homelite 311071001

Output Shaft Assembly

$47.99

$

Usually ships in 3-7 days

0

28

Homelite 570807001

Inlet Tube

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 570807002

Outlet Tube

$

$

Not available

30

Homelite 300946003

Oil Pump Assembly

$

$

Not available

31

Homelite 531003001

Pump Clamp

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 310983001

Oil Tank Cap Assembly

$9.99

$

Usually ships in 3-7 days

0

33

Homelite 311072001

Oil Tank Assemlby

$

$

Not available

34

Homelite 941851093

Logo Label

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 941851094

40V Lithium Label (Left)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 311081002

Extended Boom Assembly

$47.99

$

In Stock, only 1 left!

0

37

Homelite 308047001

Shoulder Strap Assembly
(Superseded to 983961001)

$

$

Not available

38

Homelite 311075001

Boom Assembly

$43.99

$

In Stock, only 1 left!

0

39

Homelite 690700001

Clip-hose (Id 4.9)
(Superseded to 6970001)

$1.99

$

In Stock, Qty 9

0

40

Homelite 690700005

Clip-hose

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000009

Operator's Manual

Note: NOT SHOWN

$

$

Not available
