RY 40051 (311069006) - Ryobi Pole Saw Attachment, Rev 04 (2020-12) General Assembly Parts Diagram

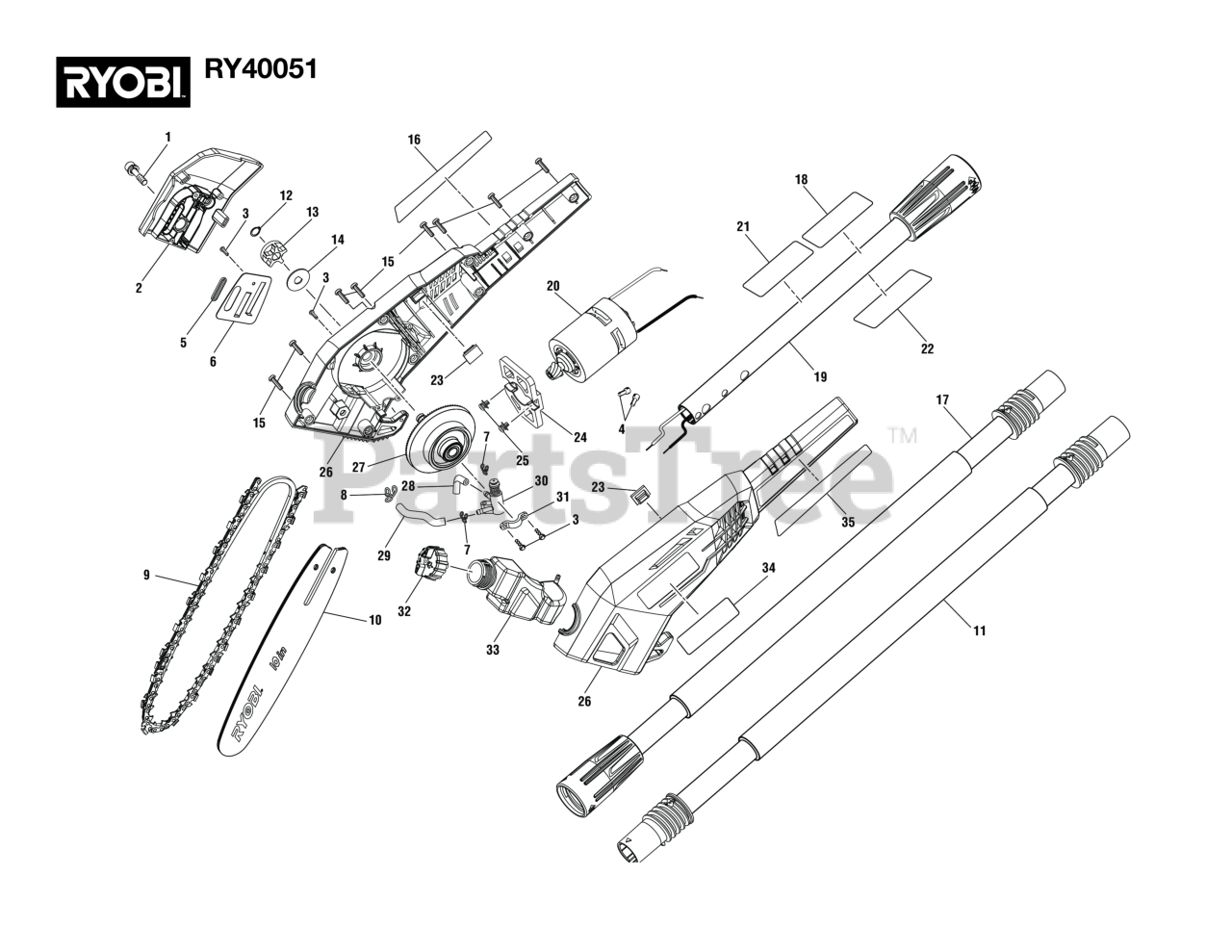

Pole Saw Attachment, Rev 04

General Assembly Parts Diagram

  • Title

1

Homelite 660058008

Screw w/Washer (M6 x 25 mm, Rd. Hd. )

$1.99

$

In Stock, only 2 left!

0

2

Homelite 316589001

Chain Cover Assembly

$8.49

$

Usually ships in 3-7 days

0

3

Homelite 660005006

Screw (M3 x 10 mm)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 790021001

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 570820001

Oil Outlet Seal Ring

$1.99

$

In Stock, only 4 left!

0

6

Homelite 634561003

Guide Bar Plate

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 690700001

Clip-hose (Id 4.9)
(Superseded to 6970001)

$1.99

$

In Stock, Qty 9

0

8

Homelite 690700005

Clip-hose

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 682115001

Chain

$23.99

$

In Stock, only 3 left!

0

10

Homelite 316668001

Guide Bar

$34.99

$

Usually ships in 3-7 days

0

11

Homelite 311075001

Boom Assembly

$43.99

$

In Stock, only 1 left!

0

12

Homelite 670608002

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

13

Homelite 610323001

Sprocket

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 690733001

Cover Plate (Internal "D" Washer)

$1.99

$

In Stock, Qty 8

0

15

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

16

Homelite 941588814

40V Lithium Label (Right)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 311081002

Extended Boom Assembly

$47.99

$

In Stock, only 1 left!

0

18

Homelite 941851096

Icon Warning Label (English)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 316998001

Upper Pole Assembly

Note: (Inc. Key Nos. 18 and 21-22)

$11.99

$

Usually ships in 3-7 days

0

20

Homelite 311070002

Motor Assembly

$76.99

$

Usually ships in 3-7 days

0

21

Homelite 941588698

Data Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 941851098

Warning Label (French/Spanish)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 570115001

Rubber Bumper

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 642037001

Mounting Plate

$6.49

$

Usually ships in 3-7 days

0

25

Homelite T661845001

Screw w/Washer (M5 x 9 mm, Pan Hd.)

$

$

Not available

26

Homelite 317183001

Motor Housing Assembly

Note: (Inc. Key Nos. 16 and 34-35)

$13.99

$

Usually ships in 3-7 days

0

27

Homelite 311071001

Output Shaft Assembly

$47.99

$

Usually ships in 3-7 days

0

28

Homelite 570807001

Inlet Tube

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 570807002

Outlet Tube

$

$

Not available

30

Homelite 300946003

Oil Pump Assembly

$

$

Not available

31

Homelite 531003001

Pump Clamp

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 310983001

Oil Tank Cap Assembly

$9.99

$

Usually ships in 3-7 days

0

33

Homelite 311072001

Oil Tank Assemlby

Note: (Inc. Key Nos. 28-29 and 32)

$

$

Not available

34

Homelite 940705494

40V Lithium Label (Right)

$1.99

$

Usually ships in 0 days

0

35

Homelite 941588813

40V Lithium Label (Left)

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000274

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
