RY 40030 - Ryobi Edger Attachment General Assembly Parts Diagram

Edger Attachment

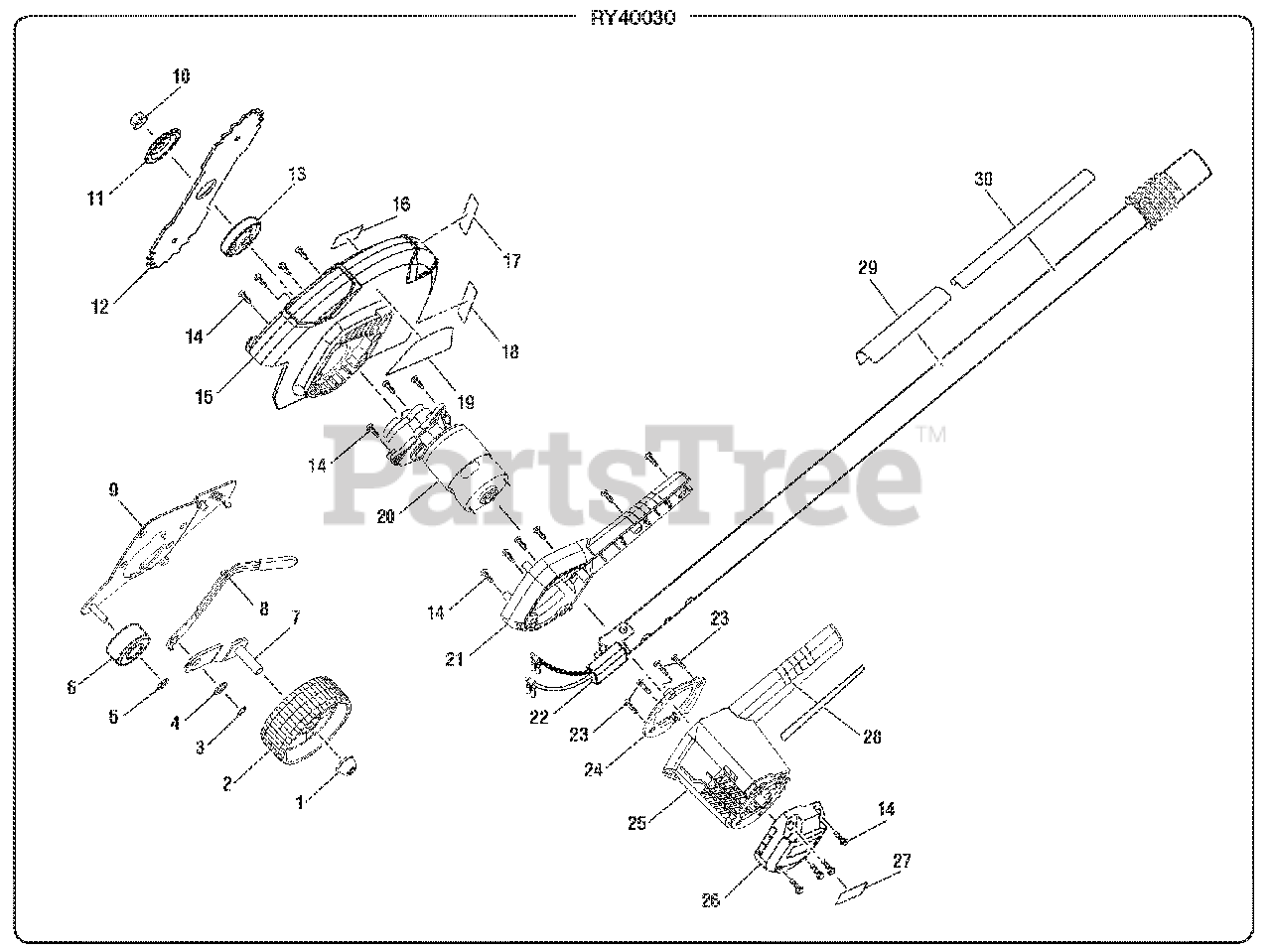

General Assembly Parts Diagram

  • Title

1

Homelite 308483001

Push Nut (10 mm)
(Superseded to 099078001028)

$1.99

$

In Stock, only 1 left!

0

2

Homelite 525397001

Wheel (Plastic)

$2.49

$

In Stock, only 4 left!

0

3

Homelite 679995001

C-Ring (OD 10.59 x ID 8.94)

$1.99

$

In Stock, only 1 left!

0

4

Homelite 639142001

Washer (Wheel Adjuster)

$1.99

$

In Stock, only 4 left!

0

5

Homelite 311153001

Push Cap

$1.99

$

In Stock, only 4 left!

0

6

Homelite 525802001

Wheel (Edger Depth Restrictor)

$1.99

$

In Stock, only 3 left!

0

7

Homelite 311152001

Pivot Bracket Assembly

$8.99

$

In Stock, only 1 left!

0

8

Homelite 311150001

Depth Adjustment Lever

$6.99

$

In Stock, only 1 left!

0

9

Homelite 311151001

Bracket Assembly (Anti-Skid Pad)

$19.99

$

Usually ships in 3-7 days

0

10

Homelite 678128002

Hex Nut w/Lock Washer

$1.99

$

In Stock, only 1 left!

0

11

Homelite 638017001

Cupped Washer
(Superseded to 04409)

$3.99

$

In Stock, only 1 left!

0

12

Homelite 638006008

Blade

$

$

Not available

13

Homelite 678011001

Flange Washer
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

14

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

15

Homelite 525399001

Guard

$12.99

$

Usually ships in 3-7 days

0

16

Homelite 941112006

Ryobi Connexion Logo Label

$

$

Not available

17

Homelite 940657063

Shield Icon Warning Label

$

$

Not available

18

Homelite 941748001

Wheel Depth Adjustment Label

$

$

Not available

19

Homelite 941588024

Data Label

$

$

Not available

20

Homelite 220573001

Motor and Gear Train Assembly

$

$

Not available

21

Homelite 525395001

Motor Housing (Right)

$

$

Not available

22

Homelite 311063001

Boom Assembly

$

$

Not available

23

Homelite 660206055

Screw (M3.5 x 14 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 525398001

Baffle

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 525396001

Motor Housing (Left)

$6.99

$

Usually ships in 3-7 days

0

26

Homelite 525390001

Motor Cover

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 941651002

Ryobi Logo Label

$

$

Not available

28

Homelite 941720002

Connexion Logo Label

$

$

Not available

29

Homelite 941767001

Warning Label (French & Spanish)

$

$

Not available

30

Homelite 940657062

Icon Warning Label

$

$

Currently unavailable

Homelite 990000215

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
