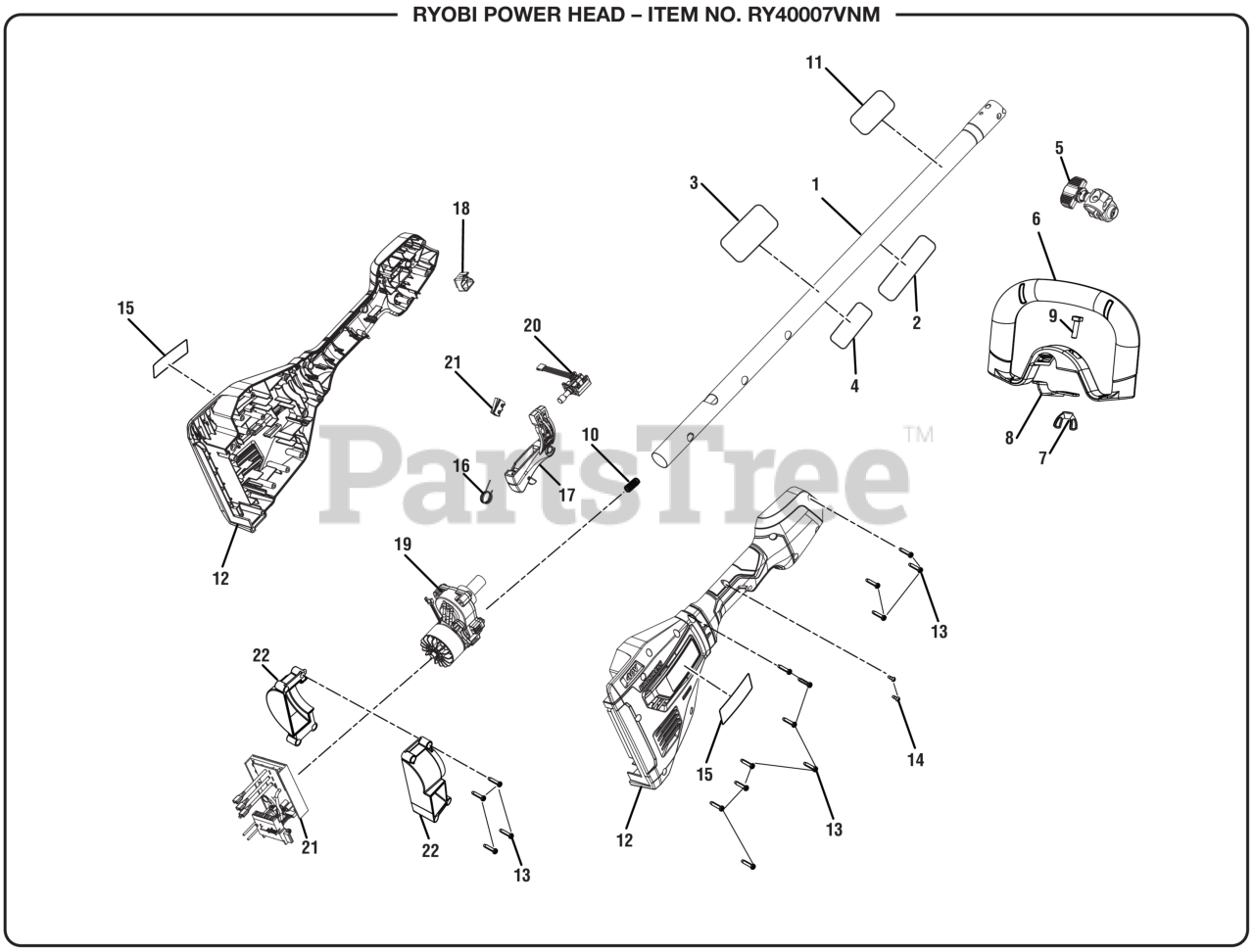

RY 40007 VNM (315580101) - Ryobi String Trimmer Powerhead, Rev 02 (2020-01) General Assembly Parts Diagram

String Trimmer Powerhead, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 205322001

Upper Boom Assembly

$42.99

$

Usually ships in 3-7 days

0

2

Homelite 941013005

Warning Label (French/Spanish)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 941013004

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 941588469

Data Label

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 315386001

Boom Clamp Assembly

$19.99

$

In Stock, only 1 left!

0

6

Homelite 308056009

Front Handle Assembly

$22.99

$

In Stock, only 1 left!

0

7

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

8

Homelite 639167001

Front Handle Clamp

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 660857001

Bolt (1/4-20 x 1 in., Square Hd.)
(Superseded to PS02435)

$3.99

$

In Stock, only 1 left!

0

10

Homelite 690140011

COMPRESSION SPRING
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

11

Homelite 941851150

Attachment Label

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 205323001

Rear Handle Assembly

$44.99

$

Usually ships in 3-7 days

0

13

Homelite 661864007

Screw (M4 x 18 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 660203052

Screw (M3 x 8 mm, Pan. Hd.)

$1.99

$

In Stock, only 2 left!

0

15

Homelite 940705393

Logo Label

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 694572001

Spring, Torsion, Dia 12.5mm, Music Wire

$1.99

$

In Stock, only 1 left!

0

17

Homelite 315841001

Switch Trigger Assembly w/Lock-Out

$8.99

$

Usually ships in 3-7 days

0

18

Homelite 539255001

Hi-Lo Switch Cover

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 313244001

Motor and Gear Box Assembly

$224.99

$

Usually ships in 3-7 days

0

20

Homelite 760649003

Variable Speed Switch

$17.99

$

Usually ships in 3-7 days

0

21

Homelite 313240002

Electric Controller and Switch Assembly

$195.99

$

Usually ships in 3-7 days

0

22

Homelite 313350001

Motor Volute Assembly

$8.49

$

Usually ships in 3-7 days

0

Homelite 998000156

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
