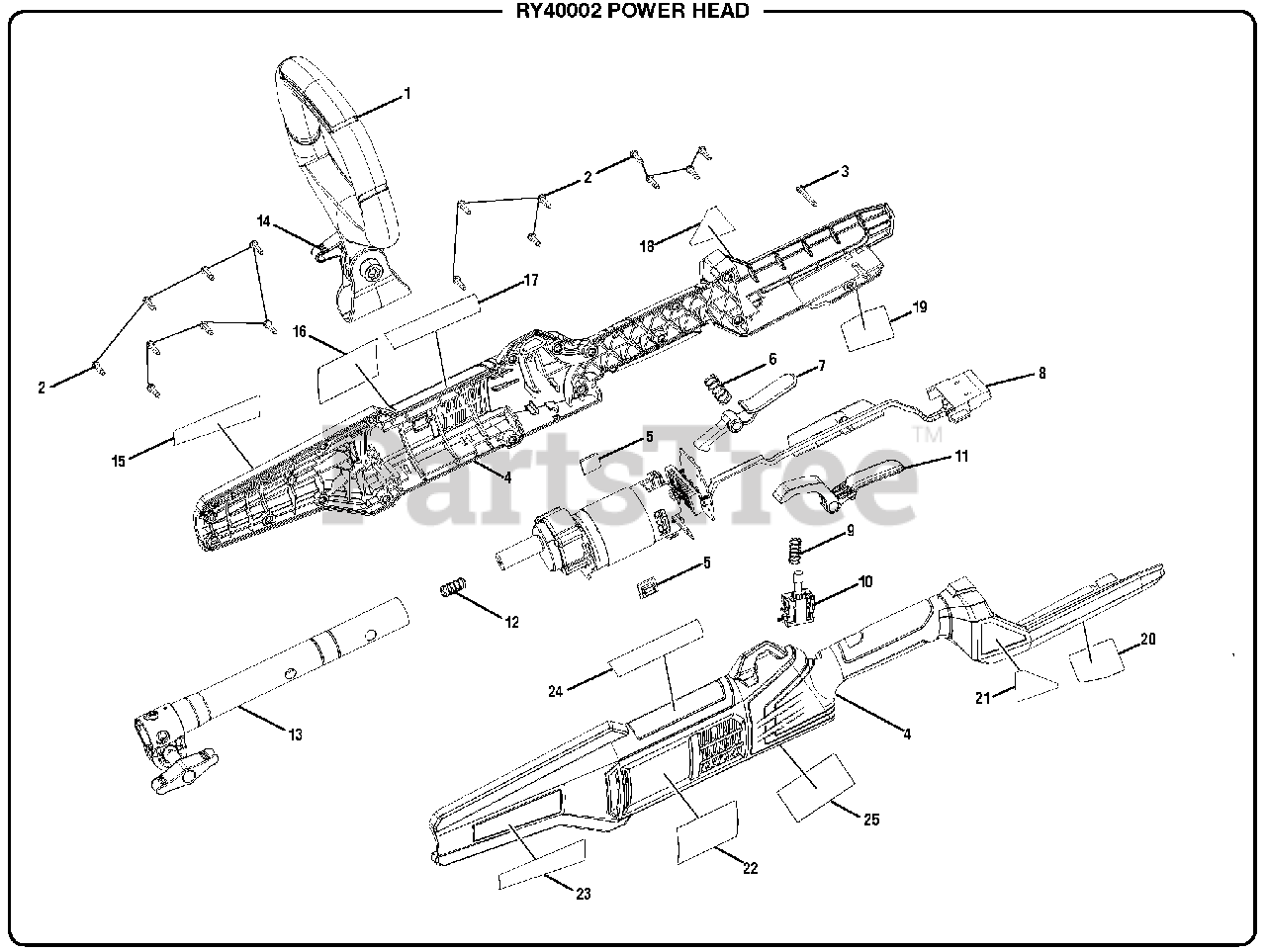

RY 40002 (311177003) - Ryobi String Trimmer Powerhead, Rev 04 (2018-08) General Assembly Parts Diagram

String Trimmer Powerhead, Rev 04

General Assembly Parts Diagram

  • Title
1

Homelite 311237001

Front Handle Assembly

Note: (Inc. Key. No. 14)

$9.49

$

Usually ships in 3-7 days

0

2

Homelite T662028001

Screw (M4 x 16 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 660208104

Screw (M4 x 30 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, only 2 left!

0

4

Homelite 311222003

Rear Handle Assembly

$

$

Not available

5

Homelite 570115001

Rubber Bumper

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 679406001

Compression Spring (Trigger Lock)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 525589001

Trigger Lock-Out Lever

$1.99

$

In Stock, only 3 left!

0

8

Homelite 311281002

Motor, Switch & Gear Box Assembly

Note: (Inc. Key No. 10)

$

$

Not available

9

Homelite 679494001

Compression Spring (Trigger)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 760952006

Switch (Variable Speed)

$

$

Not available

11

Homelite 526984001

Switch Trigger

$1.99

$

In Stock, only 4 left!

0

12

Homelite 679065001

Compression Spring

$

$

Not available

13

Homelite 308470055

Upper Boom Assembly

$

$

Not available

14

Homelite 522983004

Knob Assembly

$

$

Not available

15

Homelite 940726027

Expandit Logo Label (Right)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 940851013

Logo Label (Right)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 940749020

Warning Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 941007021

40 Volt Label (Right)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 940749022

Warning Label (Spanish)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 940749023

Warning Label (French)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 941007022

40 Volt Label (Left)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 940851014

Logo Label (Left)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 940726028

Expandit Logo Label (Left)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 940657133

Icon Warning Label

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 940230203

Data Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 990000720

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
