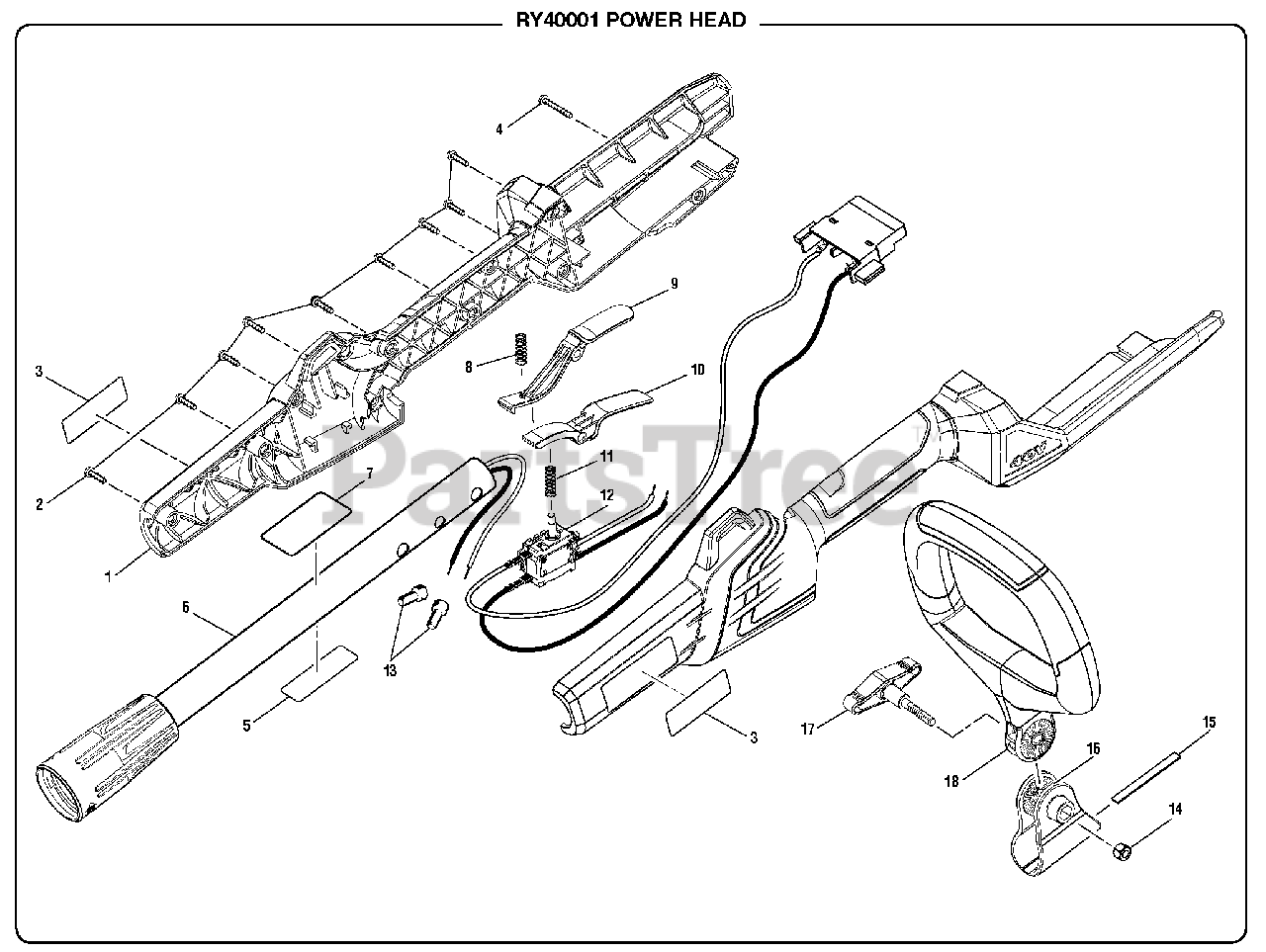

RY 40001 - Ryobi String Trimmer Powerhead General Assembly Parts Diagram

String Trimmer Powerhead

General Assembly Parts Diagram

  • Title

1

Homelite 129311001

Rear Handle Assembly

$11.99

$

Usually ships in 3-7 days

0

2

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

3

Homelite 941545002

Logo Label

$

$

Not available

4

Homelite 660208104

Screw (M4 x 30 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, only 2 left!

0

5

Homelite 941775001

Data Label

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 311116001

Upper Tube Assembly

$20.99

$

Usually ships in 3-7 days

0

7

Homelite 940331006

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 679406001

Compression Spring (Trigger Lock)

$1.99

$

In Stock, only 1 left!

0

9

Homelite 525589001

Lock Off Button (Trigger Lock)

$1.99

$

In Stock, only 2 left!

0

10

Homelite 525590001

Switch Trigger

$1.99

$

In Stock, only 2 left!

0

11

Homelite 679973001

Compression Spring (Trigger)

$1.99

$

In Stock, Qty 5

0

12

Homelite 129310002

Switch and Contact Plate Assembly

$

$

Not available

13

Homelite 790009004

Wire Connector

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 680196006

Hex Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 570112001

Handle Bracket Spacer

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 522984001

Bracket

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 522983001

Handle Knob Assembly
(Superseded to 314754001)

$1.49

$

In Stock, only 1 left!

0

18

Homelite 311158001

Auxiliary Handle Assembly

Note: (Inc. Key Nos. 14-17)

$23.99

$

Usually ships in 3-7 days

0

Homelite 990000216

Operator's Manual

Note: Not Shown

$

$

Not available
