RY 40001 B VNM (316198001) - Ryobi 40V String Trimmer Powerhead, Rev 04 (2020-11) General Assembly Parts Diagram

40V String Trimmer Powerhead, Rev 04

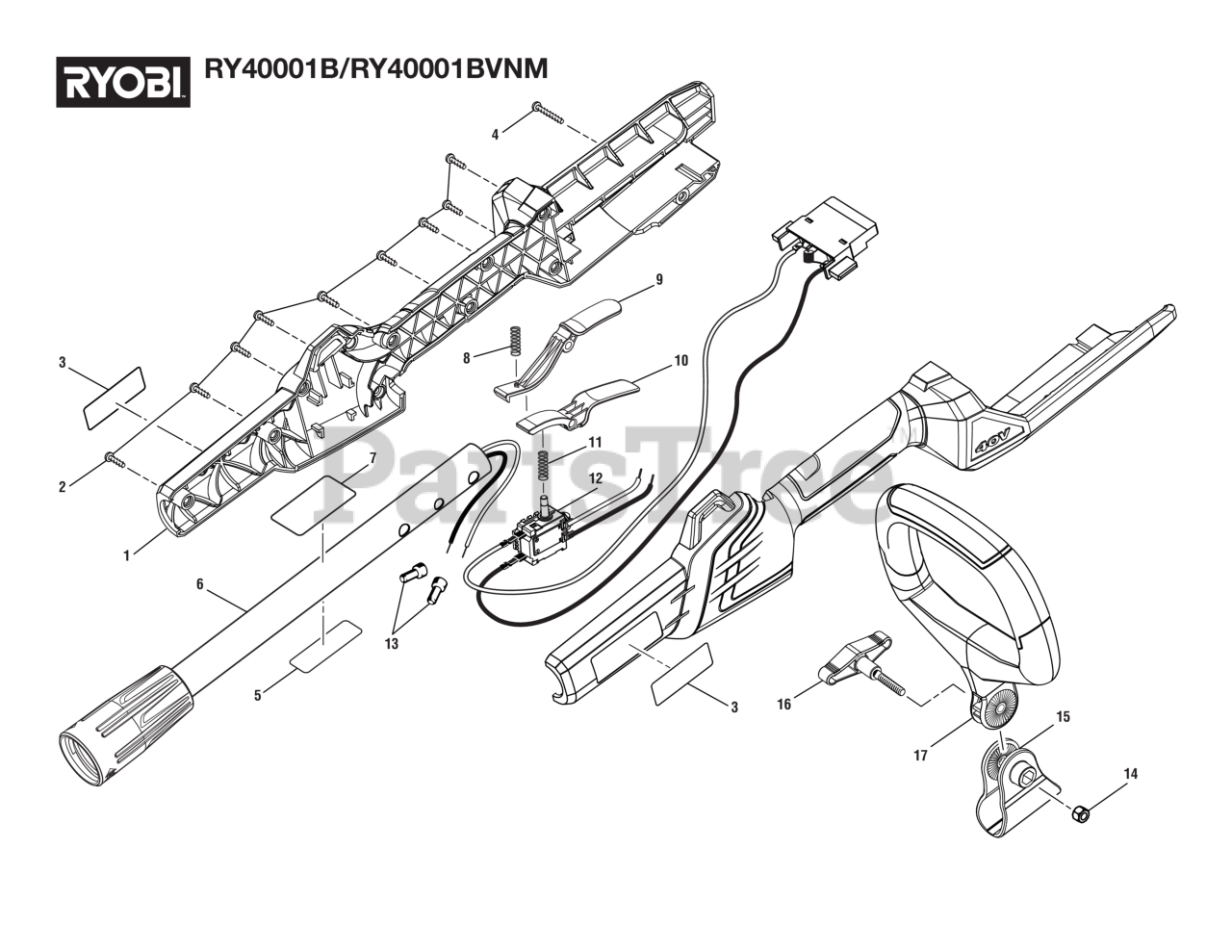

General Assembly Parts Diagram

  • Title

1

Homelite 314756001

Rear Handle Assembly (Inc. Key No. 3)

Note: (Inc. Key No. 3)

$25.99

$

Usually ships in 3-7 days

0

2

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

3

Homelite 940705492

Logo Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

5

Homelite 941588606

Data Label

$

$

Currently unavailable

6

Homelite 316316001

Upper Tube Assembly

Note: (Inc. Key Nos. 5 and 7, RY40001BVNM)

$

$

Currently unavailable

7

Homelite 941851103

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 679973002

Compression Spring (Trigger)

$1.99

$

In Stock, only 3 left!

0

9

Homelite 525589001

Lock Off Button (Trigger Lock)

$1.99

$

In Stock, only 2 left!

0

10

Homelite 525590001

Switch Trigger

$1.99

$

In Stock, only 2 left!

0

11

Homelite 679973001

Compression Spring (Trigger)

$1.99

$

In Stock, Qty 5

0

12

Homelite 314755001

Switch and Contact Plate Assembly.

$

$

Not available

13

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 680196006

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 310921001

Clamp Assembly

$7.99

$

Usually ships in 3-7 days

0

16

Homelite 314754001

Handle Knob Assembly

$1.49

$

In Stock, only 1 left!

0

17

Homelite 311158001

Auxiliary Handle Assembly

$23.99

$

Usually ships in 3-7 days

0

Homelite 998000009

Operator's Manual

Note: (RY40506) | Not Shown

$

$

Not available
