RY 40 PW15 VNM (095079855) - Ryobi 40V Pressure Washer, Rev 01 (2022-06) FIGURE A Parts Diagram

40V Pressure Washer, Rev 01

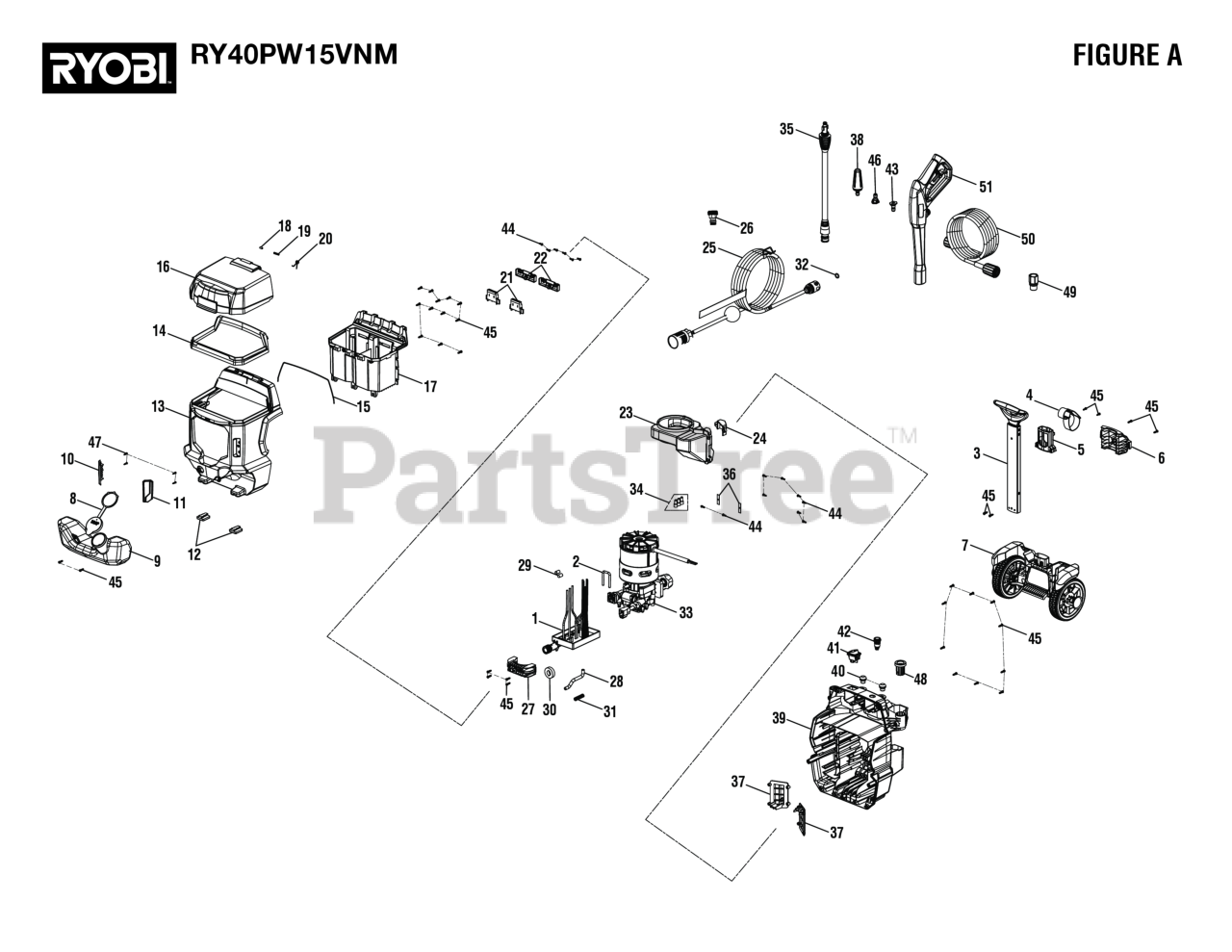

FIGURE A Parts Diagram

  • Title

1

Homelite 280579006

36V DC Controller

$320.99

$

Usually ships in 3-7 days

0

2

Homelite 678799048

U-Clip

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 308790085

Retractable Handle Assembly

Note: (Inc Key Nos. 3-5 & 45)

$55.99

$

Usually ships in 3-7 days

0

4

Homelite 310801007

Hook and Loop Strap

$

$

Not available

5

Homelite 522032090

Hose Bracket

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 522032021

Holder Cover

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 310224099

Wheel Base Assembly (See Fig C)

$

$

Currently unavailable

8

Homelite 310650004

Detergent Tank Cap

$2.99

$

In Stock, only 3 left!

0

9

Homelite 580875022

Soap Tank

$11.99

$

Usually ships in 3-7 days

0

10

Homelite 522032087

Mount Cover (Left)

$1.99

$

Usually ships in 0 days

0

11

Homelite 522032088

Mount Cover (Right)

$1.99

$

Usually ships in 0 days

0

12

Homelite 561383059

Rubber Foot

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 522032084

Front Housing

$46.99

$

Usually ships in 3-7 days

0

14

Homelite 561383057

Battery Cover Rubber Seal

$33.99

$

Usually ships in 0 days

0

15

Homelite 561383034

Front Housing Rubber Seal

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 522032085

Battery Cover

$22.99

$

Usually ships in 0 days

0

17

Homelite 522032086

Battery Tray

$25.99

$

Usually ships in 3-7 days

0

18

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

19

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

20

Homelite 679074002

Battery Cover Spring

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 291705005

Battery Holder Assembly (See Fig B)

$

$

Currently unavailable

22

Homelite 525651005

Battery Cover Connector

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 570742238

Motor Ventilation

$50.99

$

Usually ships in 3-7 days

0

24

Homelite 570742239

Motor Air Cover

$3.49

$

Usually ships in 3-7 days

0

25

Homelite 308835140

Suction Hose w/Swivel Connector

$51.99

$

Usually ships in 3-7 days

0

26

Homelite 308751031

Inlet Connector

$12.99

$

Usually ships in 3-7 days

0

27

Homelite 522038014

Pump Bracket

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 561399026

Siphon Tube

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 570570002

Shock Absorbing Bushing

$

$

Not available

30

Homelite 980414016

Outlet Tube Cover Foam

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 678857020

Detergent Tank Spring (Compression Spring

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 570742189

O-Ring (ID11.3 x CS2.5)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 308833091

Motor and Pump Assembly

$764.99

$

Usually ships in 3-7 days

0

34

Homelite 870601002

Close-End Connector

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 308494075

Spray Wand Assembly

$22.99

$

Usually ships in 3-7 days

0

36

Homelite 638700042

Metal Plate

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 522038017

Corner Cover

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 308311043

Turbo Nozzle

$17.99

$

Usually ships in 3-7 days

0

39

Homelite 522032014

Rear Housing

$51.99

$

Usually ships in 3-7 days

0

40

Homelite 561383021

Nozzle Grommet

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 760504024

Power Switch

$10.99

$

Usually ships in 3-7 days

0

42

Homelite 760504023

Boost Button

$34.99

$

Usually ships in 3-7 days

0

43

Homelite 308698033

15 Deg Nozzle

$7.49

$

Usually ships in 3-7 days

0

44

Homelite 660128001

Screw (ST3.5 x 15 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 308706013

Soap Nozzle (Blue)

$1.99

$

In Stock, Qty 5

0

47

Homelite 661403015

Screw (M2.9 x 14 mm, Pan Hd.)

$

$

Not available

48

Homelite 561383060

Primer Post Rubber Seal

$4.99

$

Usually ships in 0 days

0

49

Homelite 318832001

Priming In-Line Accessory

$29.99

$

Usually ships in 3-7 days

0

50

Homelite 308835119

25 ft. Hose

$55.99

$

Usually ships in 3-7 days

0

51

Homelite 308760094

Trigger Handle

$37.99

$

Usually ships in 3-7 days

0

Homelite 998000754

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 998000755

Quick Refrence Guide

Note: Not Shown

$

$

Currently unavailable
