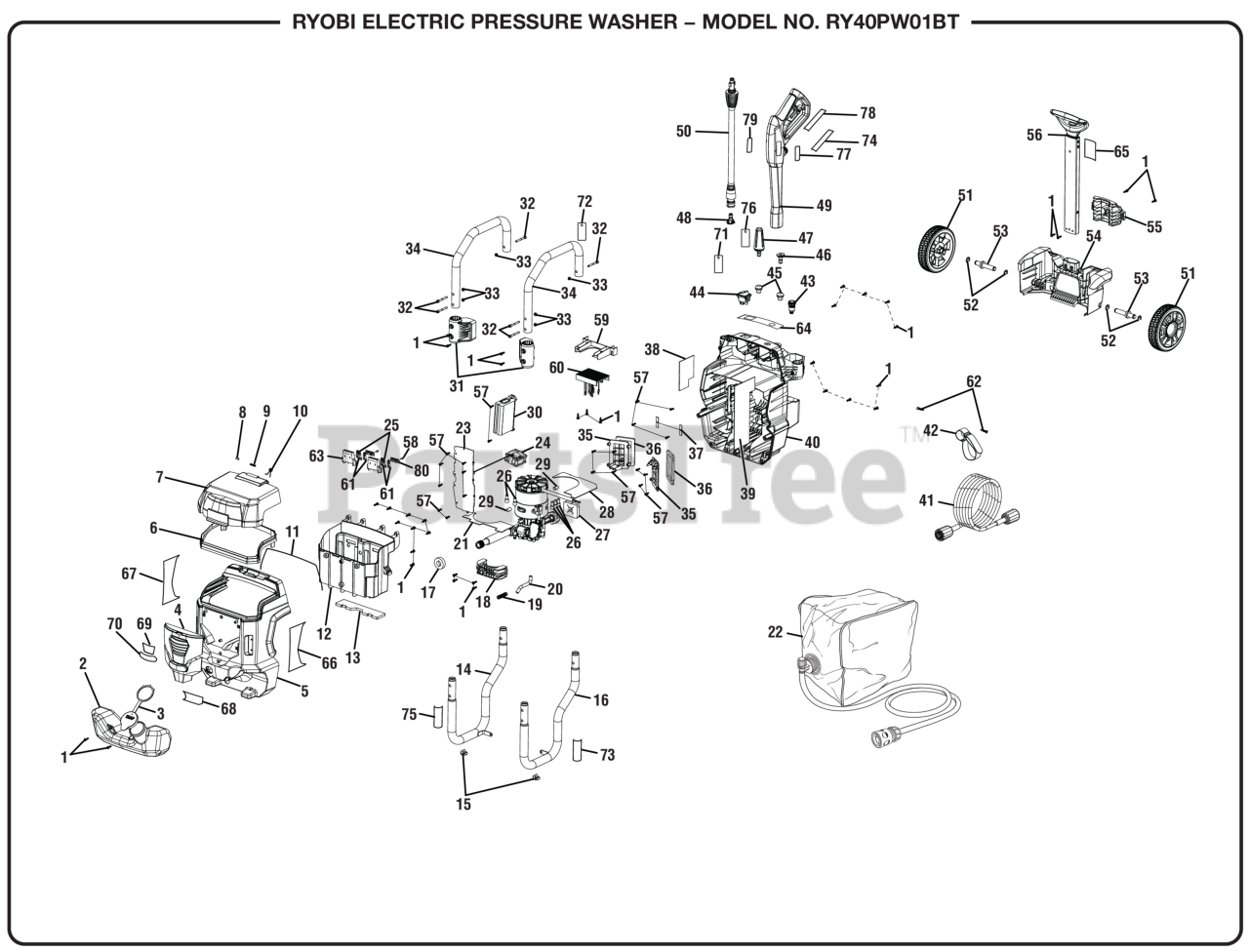

RY 40 PW01 BT (090079445) - Ryobi Pressure Washer, Electric, Rev 01 (2020-04) General Assembly Parts Diagram

Pressure Washer, Electric, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 580875022

Soap Tank

$11.99

$

Usually ships in 3-7 days

0

3

Homelite 310650004

Detergent Tank Cap

$2.99

$

In Stock, only 3 left!

0

4

Homelite 522032018

Decorative Cover

$17.99

$

Usually ships in 3-7 days

0

5

Homelite 522032015

Front Housing

$40.99

$

Usually ships in 3-7 days

0

6

Homelite 561383033

Battery Cover Rubber Seal

$15.99

$

Usually ships in 3-7 days

0

7

Homelite 522032016

Battery Cover

$21.99

$

Usually ships in 3-7 days

0

8

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

9

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

10

Homelite 679074002

Battery Cover Spring

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 561383034

Front Housing Rubber Seal

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 522032017

Battery Tray

$20.99

$

Usually ships in 3-7 days

0

13

Homelite 980414019

Battery Foam Tray Waterproof Cover

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 308412045

Lower Frame (Right)

$17.99

$

Usually ships in 3-7 days

0

15

Homelite 561383031

Rubber Foot

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 308412044

Lower Frame (Left)

$17.99

$

Usually ships in 3-7 days

0

17

Homelite 980414016

Outlet Tube Cover Foam

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 522038014

Pump Bracket

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 678857020

Detergent Tank Spring (Compression Spring

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 561399015

Siphon Tube

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 518790030

Air Front Sheet

$4.49

$

Usually ships in 3-7 days

0

22

Homelite 310358002

Water Bag Assembly

$42.99

$

Usually ships in 3-7 days

0

23

Homelite 518790028

Air Way Cover

$4.49

$

Usually ships in 3-7 days

0

24

Homelite 890025003

Control Board Cooling Fan

$34.99

$

Usually ships in 3-7 days

0

25

Homelite 638991001

STAMPING I BATTERY CONTACT PLATE TERMINA

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 870601002

Close-End Connector

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 980414017

Inlet Tube Cover

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 518790029

Air-Separation Sheet

$4.49

$

Usually ships in 3-7 days

0

29

Homelite 570570002

Shock Absorbing Bushing

$

$

Not available

30

Homelite 280579005

40V DC Controller

$223.99

$

Usually ships in 3-7 days

0

31

Homelite 522032019

Frame Holder

$4.99

$

Usually ships in 3-7 days

0

32

Homelite 660454009

Bolt (M5 x 42 mm)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 678509001

Lock Nut (M5 x 0.8 mm)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 638221013

Frame

$11.99

$

Usually ships in 3-7 days

0

35

Homelite 522038017

Corner Cover

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 980414018

Cover Sealing Foam

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 638700042

Metal Plate

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 518790032

Water Block Sheet (Right)

$3.99

$

Usually ships in 3-7 days

0

39

Homelite 518790031

Water Block Sheet (Left)

$4.49

$

Usually ships in 3-7 days

0

40

Homelite 522032014

Rear Housing

$51.99

$

Usually ships in 3-7 days

0

41

Homelite 308835065

Hose (25 ft.) [PS141913]

$46.99

$

Usually ships in 3-7 days

0

42

Homelite 310801007

Hook and Loop Strap

$

$

Not available

43

Homelite 760504023

Boost Button

$34.99

$

Usually ships in 3-7 days

0

44

Homelite 760504024

Power Switch

$10.99

$

Usually ships in 3-7 days

0

45

Homelite 561383021

Nozzle Grommet

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 308698033

15 Deg Nozzle

$7.49

$

Usually ships in 3-7 days

0

47

Homelite 308311014

Turbo Nozzle

$

$

Not available

48

Homelite 308706013

Soap Nozzle (Blue)

$1.99

$

In Stock, Qty 5

0

49

Homelite 308760059

Trigger Handle Assembly

$

$

Not available

50

Homelite 308494075

Spray Wand Assembly

$22.99

$

Usually ships in 3-7 days

0

51

Homelite 311253006

6 in. Wheel

$16.99

$

Usually ships in 3-7 days

0

52

Homelite 678895008

Retaining Ring

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 620599032

Wheel Axle (D12.7 x 76)

$5.49

$

Usually ships in 3-7 days

0

54

Homelite 522032020

Wheel Base Bracket

$13.99

$

Usually ships in 3-7 days

0

55

Homelite 522032021

Holder Cover

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 308790085

Retractable Handle Assembly

$55.99

$

Usually ships in 3-7 days

0

57

Homelite 660925012

SCREW, ST3.5X12, PAN HEAD

$

$

Not available

58

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

59

Homelite 527932029

Control Board Bracket

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 280865002

Control Board Assembly

$164.99

$

Usually ships in 3-7 days

0

61

Homelite 638991004

Contact Plate Terminal

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 661403021

Screw (M4 x 25.4 mm, Flat Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 525692003

Battery Contact Holder

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 940851560

On/Off Label

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 940851561

Starting Instructions Label

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 940851562

Warning Label (Eng)

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 940851563

Warning Label (Fr)

$1.99

$

Usually ships in 3-7 days

0

68

Homelite 940851564

Performance Label

$1.49

$

Usually ships in 3-7 days

0

69

Homelite 940851565

40V Label

$1.99

$

Usually ships in 3-7 days

0

70

Homelite 940851566

Brushless Logo Label

$1.49

$

Usually ships in 3-7 days

0

71

Homelite 940851567

Battery Notice Label

$1.99

$

Usually ships in 3-7 days

0

72

Homelite 918016552

Spanish Hangtag

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 940851568

Detergent Label

$1.99

$

Usually ships in 3-7 days

0

74

Homelite 940904013

Trigger Handle Data Label

$1.99

$

Usually ships in 3-7 days

0

75

Homelite 941486008

Inquires Label (Ryobi)

$1.99

$

Usually ships in 3-7 days

0

76

Homelite 961039007

Nozzle Hangtag (PS141913)

$1.99

$

Usually ships in 3-7 days

0

77

Homelite 940324040

Trigger Handle Warning Label (English)

$1.99

$

Usually ships in 3-7 days

0

78

Homelite 940324024

Trigger Handle Warning Label (French/Spanish)
(Superseded to 940654228)

$2.99

$

Usually ships in 3-7 days

0

79

Homelite 940786053

Trigger Handle Label (Logo Label)

$

$

Not available

80

Homelite 525651003

Battery Cover Connector

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000822

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 995000823

Quick Reference Guide

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 988000841

Operator's Manual, OP40501

Note: Not Shown

$

$

Not available
