RY 4 CSS VNM (095432112) - Ryobi String Trimmer, 30cc, Rev 04 (2022-08) FIGURE D Parts Diagram

String Trimmer, 30cc, Rev 04

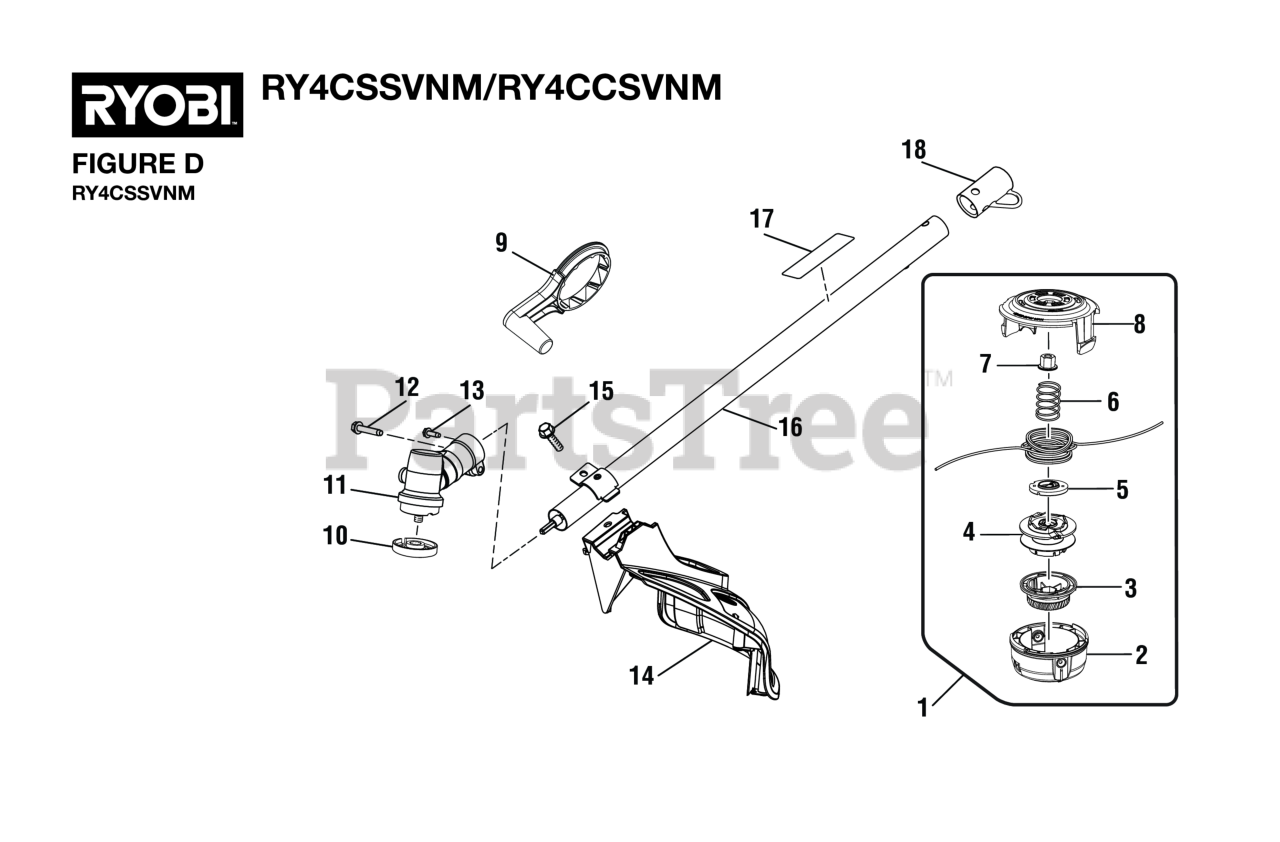

FIGURE D Parts Diagram

  • Title

1

Homelite 311759014

Trimmer Head Assembly (.095)

Note: (Inc. Key Nos. 2-8)

$28.99

$

In Stock, only 1 left!

0

2

Homelite 530366001

Lower Housing

$8.49

$

In Stock, only 2 left!

0

3

Homelite 530455002

Bump Knob (Green)

$4.49

$

In Stock, Qty 9

0

4

Homelite 530670001

Spool Assembly

$2.99

$

In Stock, Qty 14

0

5

Homelite 529803001

String Guide

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

7

Homelite 662568002

Hex Nut (M8, Left Hand Threads)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 530001004

Upper Housing

$4.49

$

In Stock, only 2 left!

0

9

Homelite 532048003

Crank Handle

$1.99

$

In Stock, only 3 left!

0

10

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

11

Homelite 308210009

Gear Case Assembly

$48.99

$

In Stock, only 1 left!

0

12

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

13

Homelite 660736001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

14

Homelite 308473004

Grass Deflector Assembly
(Superseded to 308473006)

Note: (Inc. Key No. 15)

$11.99

$

In Stock, only 1 left!

0

15

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

16

Homelite 205372001

Straight Shaft Assembly (Inc. Key Nos. 17-18)

Note: (Inc. Key Nos. 17-18)

$42.99

$

Usually ships in 3-7 days

0

17

Homelite 940657165

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 518019004

Hanger Cap

$1.99

$

In Stock, Qty 6

0
