RY 4 CSS (090432040) - Ryobi String Trimmer, 30cc, Rev 01 (2020-09) FIGURE A Parts Diagram

String Trimmer, 30cc, Rev 01

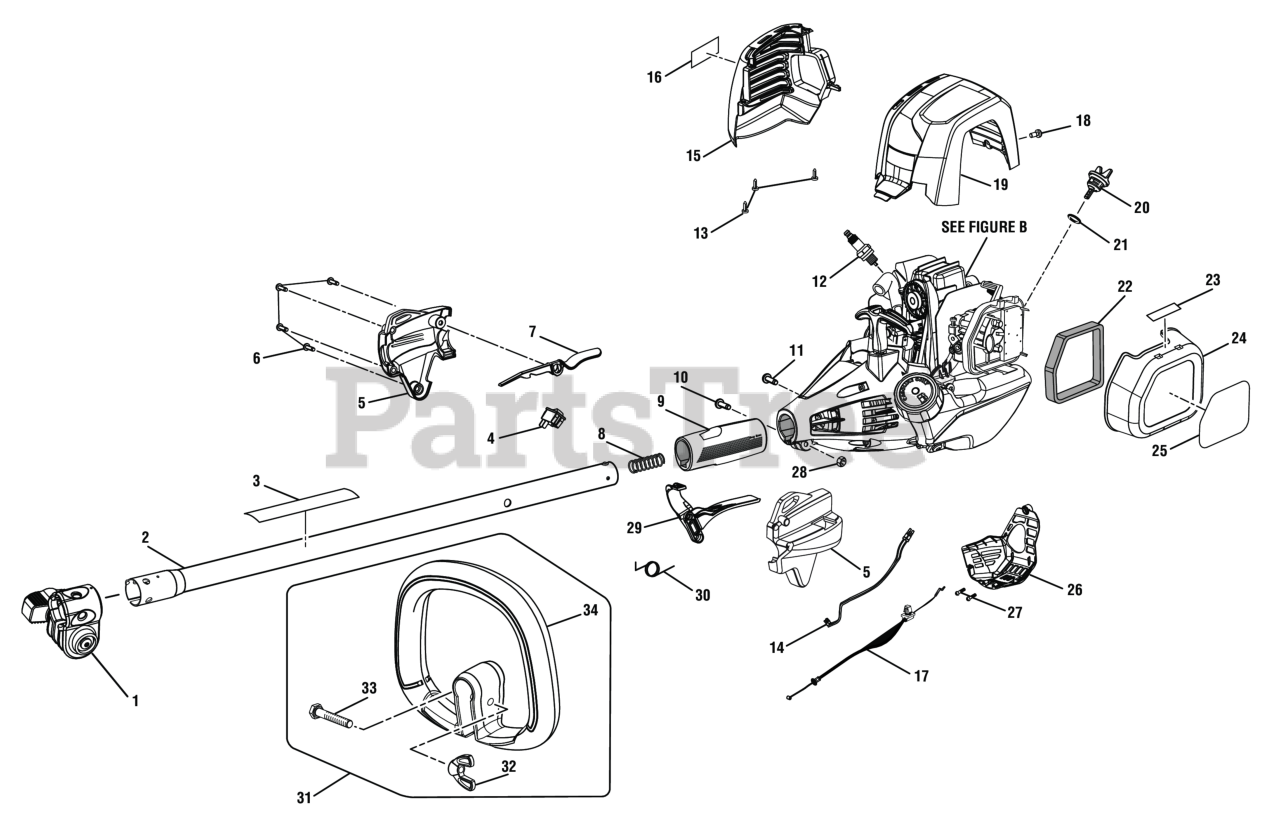

FIGURE A Parts Diagram

  • Title

1

Homelite 315386001

Boom Clamp Assembly

$19.99

$

In Stock, only 1 left!

0

2

Homelite 205370001

Upper Boom Assembly (Inc. Key Nos. 1-2)

$41.99

$

Usually ships in 3-7 days

0

3

Homelite 940657164

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

5

Homelite 310831005

Control Handle Assembly (Inc. Key No. 6)

$9.49

$

In Stock, only 1 left!

0

6

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 8

0

7

Homelite 518695009

Trigger Lock

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 690140011

COMPRESSION SPRING
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

9

Homelite 570234010

Rear Handle Grip

$4.99

$

In Stock, only 3 left!

0

10

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.99

$

In Stock, only 1 left!

0

11

Homelite 660925011

Screw (M4 x 8 mm, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 3 left!

0

12

Homelite 870301002

Spark Plug (Champion RY4C)

Note: Standard Hardware Item - May Be Purchased Locally

$8.49

$

In Stock, only 1 left!

0

13

Homelite 660466002

Screw (M4 x 12 mm, T20 Torx Truss Hd.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 308431006

Lead Assembly

$7.99

$

Usually ships in 3-7 days

0

15

Homelite 311551001

Muffler Housing (Inc. Key No. 16)

$8.49

$

Usually ships in 3-7 days

0

16

Homelite 940654088

Warning Label (Combustion)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308842018

Throttle Cable

$4.49

$

In Stock, only 2 left!

0

18

Homelite 660510008

Shoulder Screw (M4 x 11 mm, T25 Torx Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

19

Homelite 518142003

Top Cover

$9.49

$

Usually ships in 3-7 days

0

20

Homelite 310302001

Oil Cap/Dipstick (Incl. key no. 12)

$3.99

$

Usually ships in 3-7 days

0

21

Homelite 570400001

O-Ring

$1.99

$

In Stock, only 3 left!

0

22

Homelite 901723001

Air Filter

$1.99

$

In Stock, only 4 left!

0

23

Homelite 940647090

Choke Label

$1.99

$

In Stock, only 1 left!

0

24

Homelite 311550001

Air Filter Cover

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 940686173

Starting Label

$1.99

$

In Stock, Qty 5

0

26

Homelite 518548001

CE Cover (Bottom Cover)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite T660619001

Screw (#6-19 x 1/2 in., Phillips Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.99

$

In Stock, Qty 6

0

29

Homelite 518696020

Trigger

$1.99

$

In Stock, only 4 left!

0

30

Homelite 690694002

Torsion Spring (Throttle Trigger)

$1.99

$

In Stock, only 4 left!

0

31

Homelite 308991004

Front Handle Assembly

$39.99

$

Usually ships in 3-7 days

0

32

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

33

Homelite 660643008

Screw (1/4-20 x 40 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 527648001

Front Handle

$40.99

$

Usually ships in 3-7 days

0

Homelite 998000031

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
