RY 4 CPH (090432034) - Ryobi String Trimmer, 30cc, Rev 01 (2019-01) Figure B Parts Diagram

String Trimmer, 30cc, Rev 01

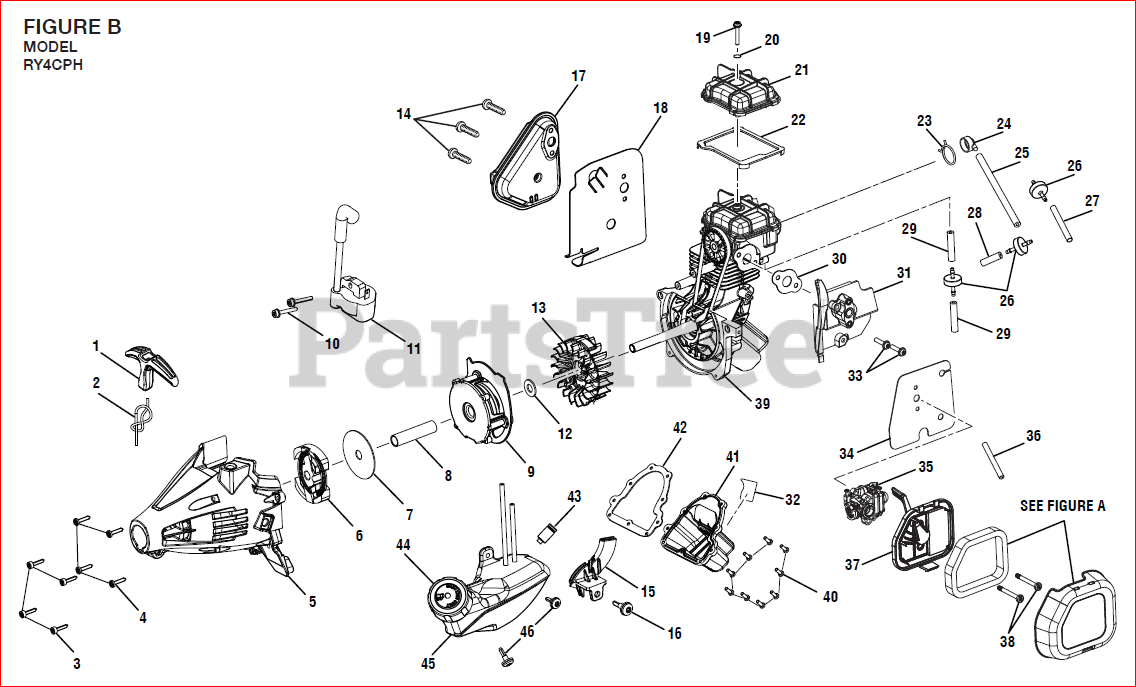

Figure B Parts Diagram

  • Title

1

Homelite 525485001

Pulley Handle

$1.99

$

In Stock, only 4 left!

0

2

Homelite 900849002

STARTER ROPE 42 (PKG)

$1.99

$

In Stock, Qty 5

0

3

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 7

0

4

Homelite 660970001

Screw w/Washer (M4 x 16 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 310304001

Starter Housing Assembly

$32.99

$

Usually ships in 3-7 days

0

6

Homelite 300960002

CLUTCH ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

7

Homelite 638090001

Washer (ID9.63 x OD50.75 x 1.10t)

$1.99

$

In Stock, only 4 left!

0

8

Homelite 638284002

Spacer Tube

$

$

Not available

9

Homelite 310305001

Starter Housing Assembly

$

$

Not available

10

Homelite 660968001

Screw w/Washer (M4 x 19 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 309263002

Ignition Module

$29.99

$

In Stock, only 2 left!

0

12

Homelite 650017001

Washer (ID9.75 x OD20 x 1.6t)
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

13

Homelite 309011001

Flywheel Assembly

$25.99

$

Usually ships in 3-7 days

0

14

Homelite 661143001

Screw (M5 x 38 mm, T25 Torx Truss Hd.)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 526450001

Throttle Cable Guide

$1.99

$

In Stock, only 2 left!

0

16

Homelite 660970008

Shoulder Screw (M4 x 19 mm, T25 Torx Truss Hd.)

$

$

Not available

17

Homelite 309320002

Muffler Assembly

$12.99

$

Usually ships in 3-7 days

0

18

Homelite 901702001

Muffler Gasket
(Superseded to 901702002)

$3.49

$

Usually ships in 3-7 days

0

19

Homelite 660780002

Screw (M4 x 27 mm Total, w/14 mm Threaded)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 570400002

O-Ring

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 640306001

Cam Cover

$6.49

$

Usually ships in 3-7 days

0

22

Homelite 901705003

Cam Cover Gasket

$2.99

$

Usually ships in 3-7 days

0

23

Homelite 678850001

Wire Clamp

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 570401002

Breather Fitting

$3.49

$

Usually ships in 3-7 days

0

25

Homelite 570710015

Breather Hose (120 mm)

$3.99

$

In Stock, only 1 left!

0

26

Homelite 308826002

Check Valve

$4.49

$

In Stock, only 2 left!

0

27

Homelite 901666003

Shield Sleeve (M6 x 50 mm)

$3.49

$

In Stock, only 1 left!

0

28

Homelite 570710002

Breather Hose (24 mm)

$3.49

$

In Stock, only 4 left!

0

29

Homelite 570710003

Breather Hose (34 mm, Crankcase)

$3.99

$

In Stock, only 2 left!

0

30

Homelite 901657003

Heat Dam Gasket

$1.99

$

In Stock, Qty 5

0

31

Homelite 531999001

(Superseded to 525031001)

$

$

Not available

32

Homelite 940680023

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 660629003

Screw (M5 x 23 mm, T25 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

34

Homelite 900809013

Heat Shield w/Gasket (Carburetor)

$2.49

$

In Stock, only 1 left!

0

35

Homelite 309375002

Carburetor

$

$

Not available

36

Homelite 570710004

Breather Hose (50 mm)

$3.99

$

In Stock, Qty 6

0

37

Homelite 308398009

Air Box Base Assembly
(Superseded to 308398005)

$6.99

$

In Stock, only 3 left!

0

38

Homelite 660454015

Screw (M5 x 44 mm,T25 Torx Hd. Carburetor)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 309962032

$

$

Not available

40

Homelite 660925003

Screw (M4 x 12 mm, T20 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 340205001

Oil Pan (Inc. Key No. 47)

$4.99

$

Usually ships in 3-7 days

0

42

Homelite 570709002

Oil Pan Gasket

$7.49

$

Usually ships in 3-7 days

0

43

Homelite 310976001

Fuel Filter

$

$

Not available

44

Homelite 310816017

Fuel Cap Assembly

$13.99

$

Usually ships in 3-7 days

0

45

Homelite 310585012

Fuel Tank w/Cap (Inc. Key Nos. 43-44)

$

$

Not available

46

Homelite 660970002

Shoulder Screw w/Washer (M4 x 14 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

Homelite 120900188

High Altitude Kit

$11.99

$

Usually ships in 3-7 days

0
