RY 39506 (090137053) - Ryobi Hedge Trimmer Figure C Parts Diagram

Hedge Trimmer

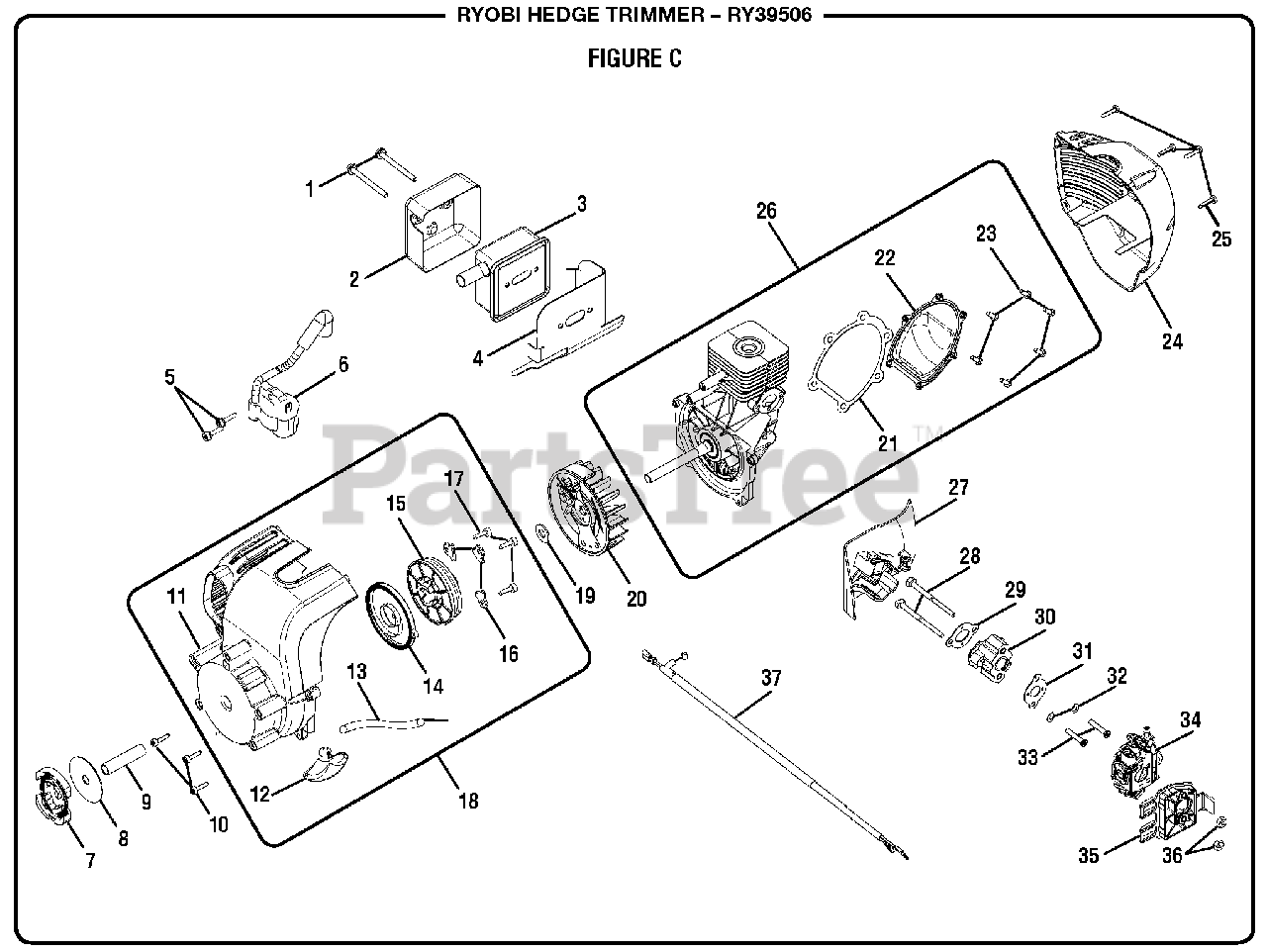

Figure C Parts Diagram

  • Title

1

Homelite 660653008

Screw (12-24 x 52 mm)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 638442002

Heat Shield (Muffler)

$

$

Not available

3

Homelite 308990039

Muffler Assembly

$30.99

$

Usually ships in 3-7 days

0

4

Homelite 901452008

Muffler Gasket

$1.99

$

In Stock, only 1 left!

0

5

Homelite 660968001

Screw (M4 x 19 mm)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 850108031

Ignition Module

$31.99

$

Usually ships in 3-7 days

0

7

Homelite 300960007

Clutch Assembly

$9.49

$

Usually ships in 3-7 days

0

8

Homelite 638090001

Washer

$1.99

$

In Stock, only 4 left!

0

9

Homelite 638284002

Spacer Tube

$

$

Not available

10

Homelite 660970001

Screw (M4 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

11

Homelite 308980020

Lower Housing w/Label

$9.49

$

Usually ships in 3-7 days

0

12

Homelite 518820001

Starter Grip

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 900849002

Starter Rope

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 638033001

Spring & Container Assembly

$5.49

$

In Stock, only 4 left!

0

15

Homelite 521519002

Starter Pulley

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

17

Homelite 660967001

Screw (M4 x 14 mm)

$1.99

$

In Stock, only 1 left!

0

18

Homelite 308981007

Lower Housing Start Assembly

Note: (Inc. Key Nos. 11-17)

$

$

Not available

19

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

20

Homelite 308811007

Flywheel Assembly

$29.99

$

Usually ships in 3-7 days

0

21

Homelite 901550003

Crankcase Cover Gasket

$1.99

$

In Stock, only 4 left!

0

22

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$6.49

$

Usually ships in 3-7 days

0

23

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 518907001

Upper Housing

$3.99

$

Usually ships in 3-7 days

0

25

Homelite 660466001

Screw (M4 x 18 mm)

$1.99

$

In Stock, Qty 7

0

26

Homelite 309960014

Short Block Assembly

Note: (Inc. Key Nos. 21-23)

$60.99

$

Usually ships in 3-7 days

0

27

Homelite 518916003

Baffle Plate

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 660927007

Screw (M5 x 62 mm)

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 901551001

Intake Gasket

$1.99

$

In Stock, only 3 left!

0

30

Homelite 518920001

Heat Dam

$4.99

$

In Stock, only 2 left!

0

31

Homelite 901552002

Heat Dam Gasket

$

$

Not available

32

Homelite 638659002

Washer

$1.99

$

In Stock, only 2 left!

0

33

Homelite 660927003

Screw (M5 x 25 mm)

$1.99

$

In Stock, Qty 10

0

34

Homelite 308054089

Carburetor

$

$

Not available

35

Homelite 525106001

Air Box Base

$5.49

$

In Stock, Qty 5

0

36

Homelite 678509001

Lock Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 309998010

Throttle Cable And Lead Wire Assembly

$9.99

$

Usually ships in 3-7 days

0
