RY 39500 - Ryobi Hedge Trimmer, 26cc Figure C Parts Diagram

Hedge Trimmer, 26cc

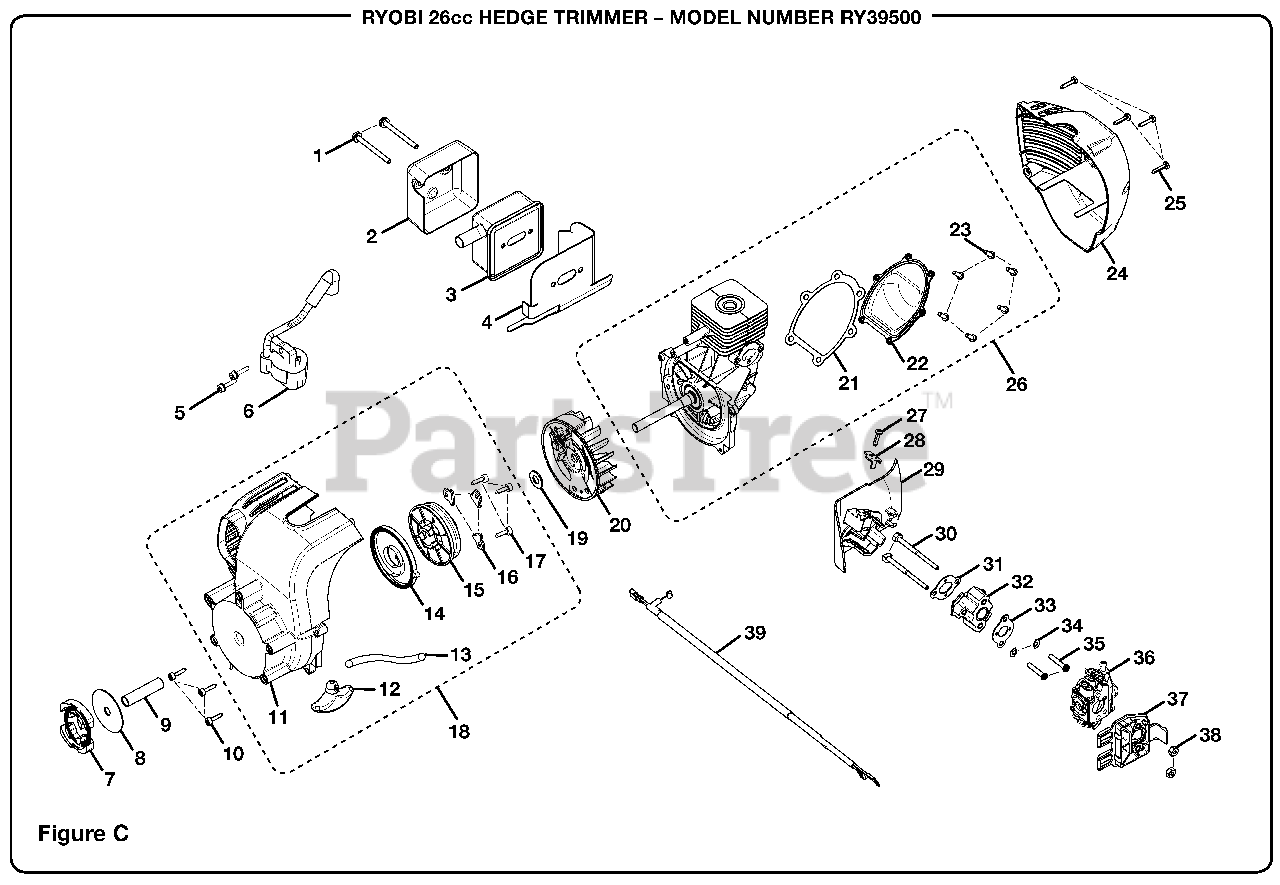

Figure C Parts Diagram

  • Title

1

Homelite 660638003

Screw
(Superseded to PS03999)

Note: (10-24 x 2-1/8 in.) Purchase locally

$

$

Not available

2

Homelite 638442002

Heat Shield

Note: (Muffler)

$

$

Not available

3

Homelite 308990017

Muffler Assembly

$

$

Not available

4

Homelite 901452008

Muffler Gasket

$1.99

$

In Stock, only 1 left!

0

5

Homelite 660968001

Screw

Note: (M4 x 19 mm) Purchase locally

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 850108002

Ignition Module

$30.99

$

In Stock, only 1 left!

0

7

Homelite 300960017

Clutch Assembly

$

$

Currently unavailable

8

Homelite 638090001

Washer

$1.99

$

In Stock, only 4 left!

0

9

Homelite 638284002

Spacer Tube

$

$

Not available

10

Homelite 660970001

Screw

Note: (M4 x 16 mm) Purchase locally

$1.99

$

In Stock, only 1 left!

0

11

Homelite 308980003

Lower Housing
(Superseded to 308980020)

$9.49

$

Usually ships in 3-7 days

0

12

Homelite 518820001

Starter Grip

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 900849002

Starter Rope

$1.99

$

In Stock, only 1 left!

0

14

Homelite 638033001

Spring & Container Assembly

$5.49

$

Usually ships in 3-7 days

0

15

Homelite 518501001

Starter Pulley

$1.99

$

In Stock, Qty 6

0

16

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

17

Homelite 660967001

Screw

Note: (M4 x 14 mm) Purchase locally

$1.99

$

In Stock, only 1 left!

0

18

Homelite 308981007

Lower Housing Start Assembly

Note: (Inc. Key Nos. 11-17)

$

$

Not available

19

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

20

Homelite 308674001

Flywheel Assembly

$15.99

$

Usually ships in 3-7 days

0

21

Homelite 901550001

Crankcase Cover Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$6.49

$

Usually ships in 3-7 days

0

23

Homelite 660925003

Screw

Note: (M4 x 12 mm) Purchase locally

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 518907001

Upper Housing

$3.99

$

Usually ships in 3-7 days

0

25

Homelite 660466001

Screw

Note: (M4 x 18 mm) Purchase locally

$1.99

$

In Stock, Qty 7

0

26

Homelite 309960003

Short Block Assembly

Note: (Inc. Key Nos. 21-23)

$61.99

$

In Stock, only 1 left!

0

27

Homelite 660734001

Screw

Note: (M4 x 16 mm) Purchase locally

$1.99

$

In Stock, only 3 left!

0

28

Homelite 638133004

Clip Throttle Cable

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 518916001

Baffle Plate

$1.99

$

In Stock, only 1 left!

0

30

Homelite 660927004

Screw

Note: (M5 x 25 mm) Purchase locally

$1.49

$

In Stock, only 1 left!

0

31

Homelite 901551001

Intake Gasket

$1.99

$

In Stock, Qty 5

0

32

Homelite 518920001

Heat Dam

$4.99

$

Usually ships in 3-7 days

0

33

Homelite 901552002

Heat Dam Gasket

$1.49

$

In Stock, only 3 left!

0

34

Homelite 638659002

Washer

Note: Purchase locally

$1.99

$

In Stock, only 2 left!

0

35

Homelite 660927003

Screw

Note: (M5 x 58 mm) Purchase locally

$1.99

$

In Stock, Qty 10

0

36

Homelite 308054013

Carburetor

$

$

Not available

37

Homelite 518766001

Air Box Base

$

$

Not available

38

Homelite 678027001

Hex Nut
(Superseded to 81208)

Note: (10-24) Purchase locally

$

$

Not available

39

Homelite 309998001

Throttle Cable And Lead Wire Assembly

$8.99

$

Usually ships in 3-7 days

0
