RY 3818 (090382001) - Ryobi Chainsaw, 38cc, Rev 06 (2018-10) FIGURE B Parts Diagram

Chainsaw, 38cc, Rev 06

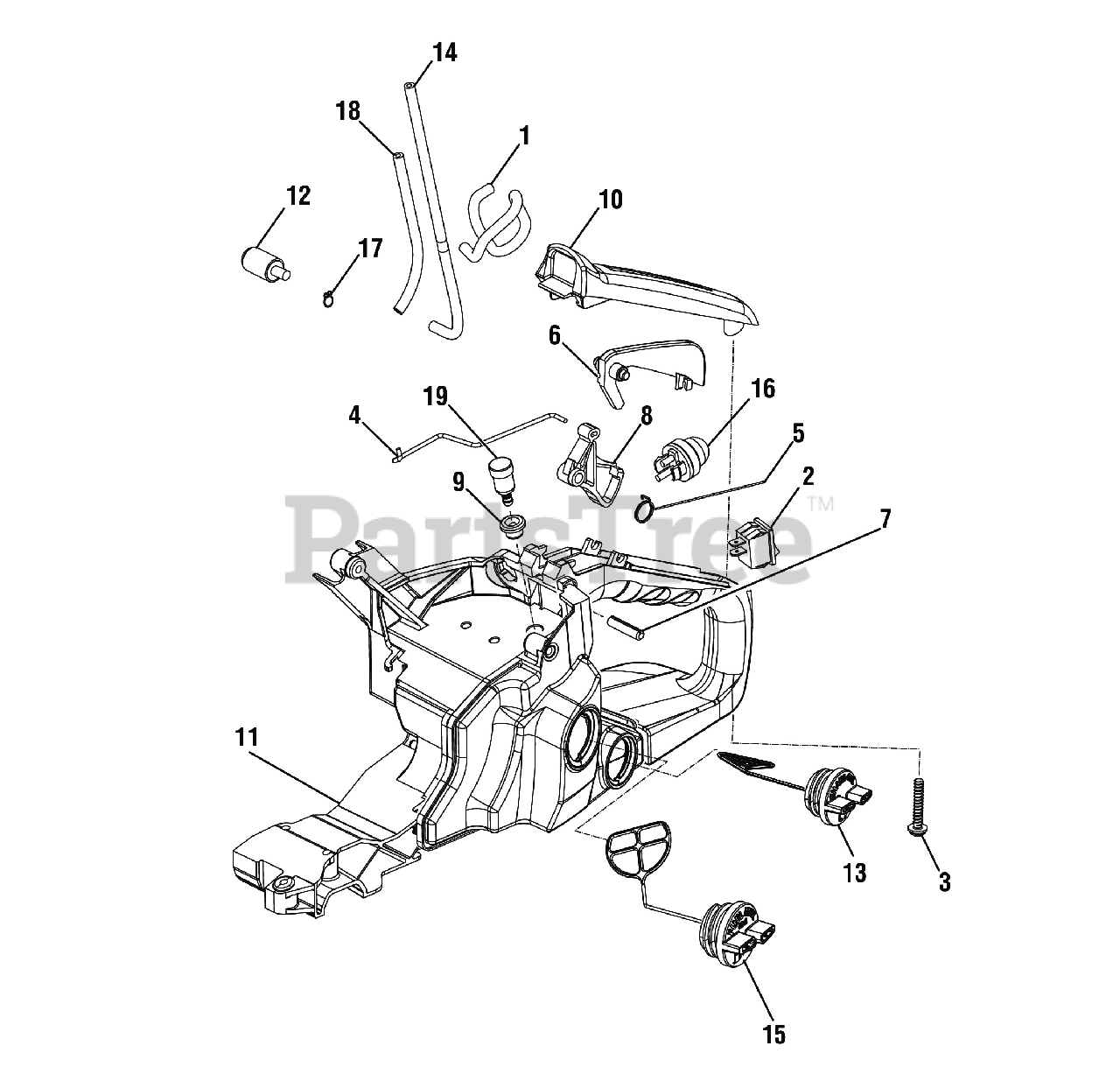

FIGURE B Parts Diagram

  • Title

1

Homelite 570373019

Fuel Hose (Primer Assembly to Carburetor, 160 mm)

$5.49

$

In Stock, only 1 left!

0

2

Homelite 760961009

Switch.

$5.49

$

Usually ships in 3-7 days

0

3

Homelite 660918002

Screw (M5 x 27 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 638295001

Throttle Rod.

$1.99

$

In Stock, Qty 5

0

5

Homelite 678325001

Throttle Spring

$1.99

$

In Stock, only 4 left!

0

6

Homelite 563968003

Hose (Oil Pump Outlet)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 638296001

Spring Pin

$1.99

$

In Stock, Qty 5

0

8

Homelite 518466004

Throttle Trigger

$1.99

$

In Stock, Qty 5

0

9

Homelite 561424001

Grommet

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 518429001

Grip Cover

$1.99

$

In Stock, Qty 5

0

11

Homelite 308550008

Rear Handle Assembly

$31.99

$

Usually ships in 3-7 days

0

12

Homelite 300759005

Fuel Filter Assembly

$9.99

$

In Stock, only 1 left!

0

13

Homelite 308612006

Oil Cap Assembly

$5.99

$

In Stock, only 2 left!

0

14

Homelite 562967003

LP-1500 Tubing (205.00 mm)

$5.49

$

In Stock, Qty 7

0

15

Homelite 308611005

Fuel Cap Assembly

$6.99

$

In Stock, only 2 left!

0

16

Homelite 300780002

Primer Bulb Assembly
(Superseded to 01183)

$

$

Not available

17

Homelite 690699001

CLIP-HOSE (ID 4.9)
(Superseded to 6969901)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 570373017

Fuel Hose (Primer Assembly to Tank, 153 mm)

$5.49

$

In Stock, only 2 left!

0

19

Homelite 308583001

Fuel Breather Assembly

$7.49

$

In Stock, only 1 left!

0
