RY 38 BP (090337002) - Ryobi Backpack Blower, Rev 03 (2021-12) FIGURE D Parts Diagram

Backpack Blower, Rev 03

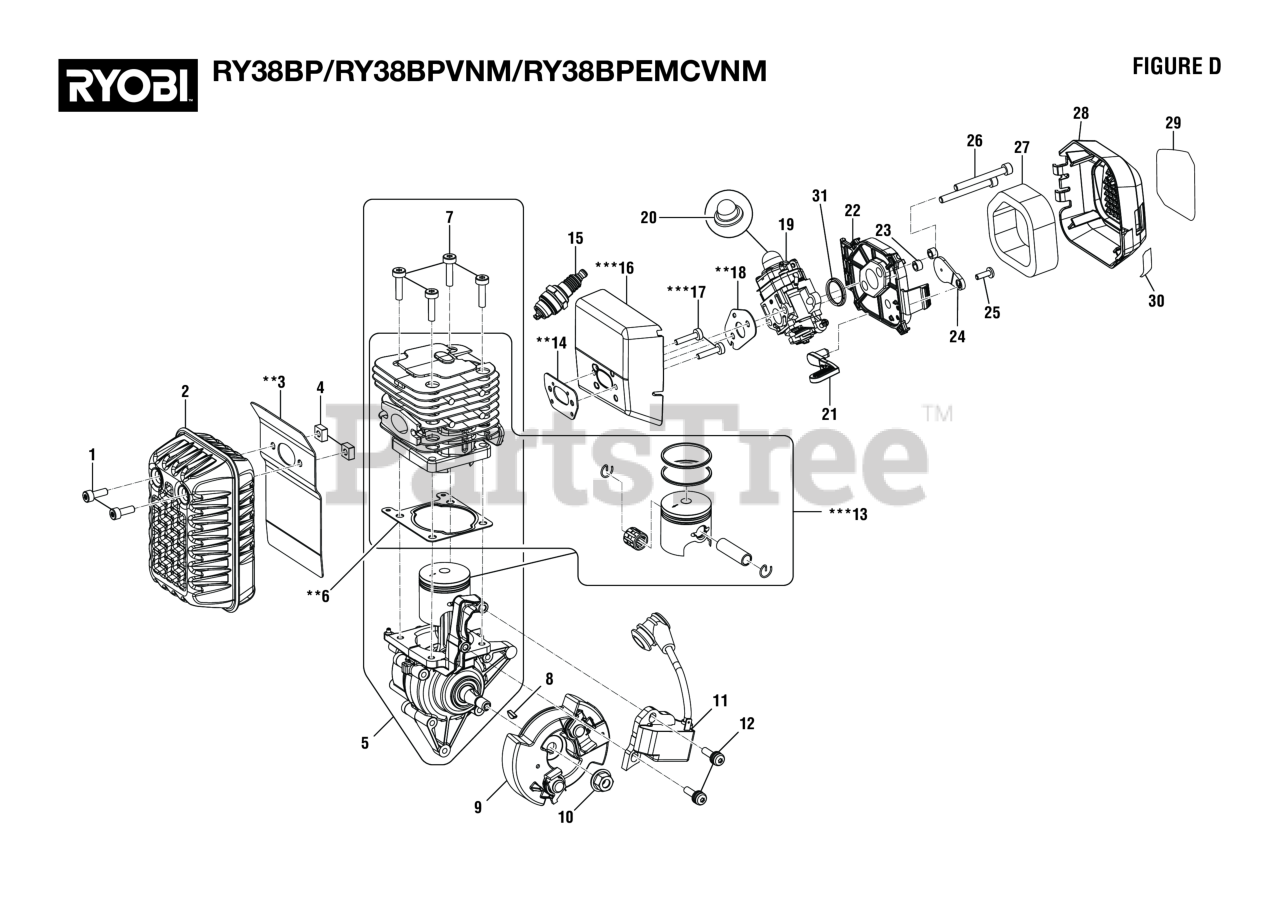

FIGURE D Parts Diagram

  • Title

1

Homelite 661600001

Bolt (M5 x 14 mm)

$1.99

$

In Stock, only 4 left!

0

2

Homelite 300748062

Muffler Assembly

$

$

Not available

3

Homelite 639243005

Exhaust Gasket

Note: Non-Reuseable Parts

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 662805001

Square Nut (M5)

$

$

Currently unavailable

5

Homelite 309893010

Short Block Assembly

$153.99

$

Usually ships in 3-7 days

0

6

Homelite 903036003

Cylinder Gasket

Note: Non-Reuseable Parts

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 660613003

Cap Screw (M5 x 20 mm, T25 Torx Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 690688001

WOODRUFF KEY (10 mm X 3 mm)
(Superseded to 983784006)

$

$

Not available

9

Homelite 314620001

Flywheel Assembly

Note: (Inc. Key No. 8)

$26.99

$

In Stock, only 1 left!

0

10

Homelite 690689001

Flange Nut (M8, Flywheel)
(Superseded to 6968901)

$

$

Not available

11

Homelite 309266005

Ignition Module

$39.99

$

In Stock, only 1 left!

0

12

Homelite 660344001

Cap Screw w/Washer (M5 x 16 mm, T25 Torx Soc. Hd.)
(Superseded to 6634401)

$

$

Not available

13

Homelite 314621001

Top End Engine Kit

Note: Keys 13, 16, & 17 Must Be Changed Together

$61.99

$

Usually ships in 3-7 days

0

14

Homelite 903279003

Gasket (Heat Dam to Cylinder)

Note: Non-Reuseable Parts

$

$

Not available

15

Homelite 870174002

Spark Plug (Champion RCJ6Y)
(Superseded to 870170001)

Note: Standard Hardware Item - May Be Purchased Locally

$10.99

$

Usually ships in 3-7 days

0

16

Homelite 534914001

Heat Dam

Note: Keys 13, 16, & 17 Must Be Changed Together

$9.49

$

In Stock, only 1 left!

0

17

Homelite 661889006

Screw (M5 x 25 mm, T25 Torx Pan Hd.)

Note: Keys 13, 16, & 17 Must Be Changed Together

$1.99

$

Usually ships in 0 days

0

18

Homelite 900711015

Gasket Carb-Heat Dam

Note: Non-Reuseable Parts

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 308054129

Carburetor Assembly

Note: (Inc. Key No. 24 & 31)

$48.99

$

Usually ships in 3-7 days

0

20

Homelite 561635002

Purge Bulb

$1.99

$

In Stock, only 2 left!

0

21

Homelite 591442002

Choke Lever

$1.99

$

In Stock, only 4 left!

0

22

Homelite 527989002

Air Box Base

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 678515015

Washer (ID5.8 x OD11.5 x 1.7t)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 590946009

Choke Plate

$1.99

$

Usually ships in 0 days

0

25

Homelite 660345001

Screw (M4 x 12 mm, Slotted Recessed Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

26

Homelite 660347003

Cap Screw (M5 x 45 mm, T25 Torx Soc. Hd.)

$1.99

$

In Stock, Qty 5

0

27

Homelite 560873001

Air Filter (Element)
(Superseded to 5687301)

$

$

Not available

28

Homelite 314622001

Air Box Cover w/Labels

Note: (Inc. Key No. 28-29)

$7.99

$

Usually ships in 3-7 days

0

29

Homelite 941657016

Starting Instructions Label

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 941657014

Choke Label

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 566033001

O-Ring

$

$

Currently unavailable

Homelite 120900309

High Altitude Kit

Note: Not Shown

$13.99

$

Usually ships in 3-7 days

0
