RY 38 BP (090337001) - Ryobi Backpack Blower, Rev 03 (2021-07) FIGURE C Parts Diagram

Backpack Blower, Rev 03

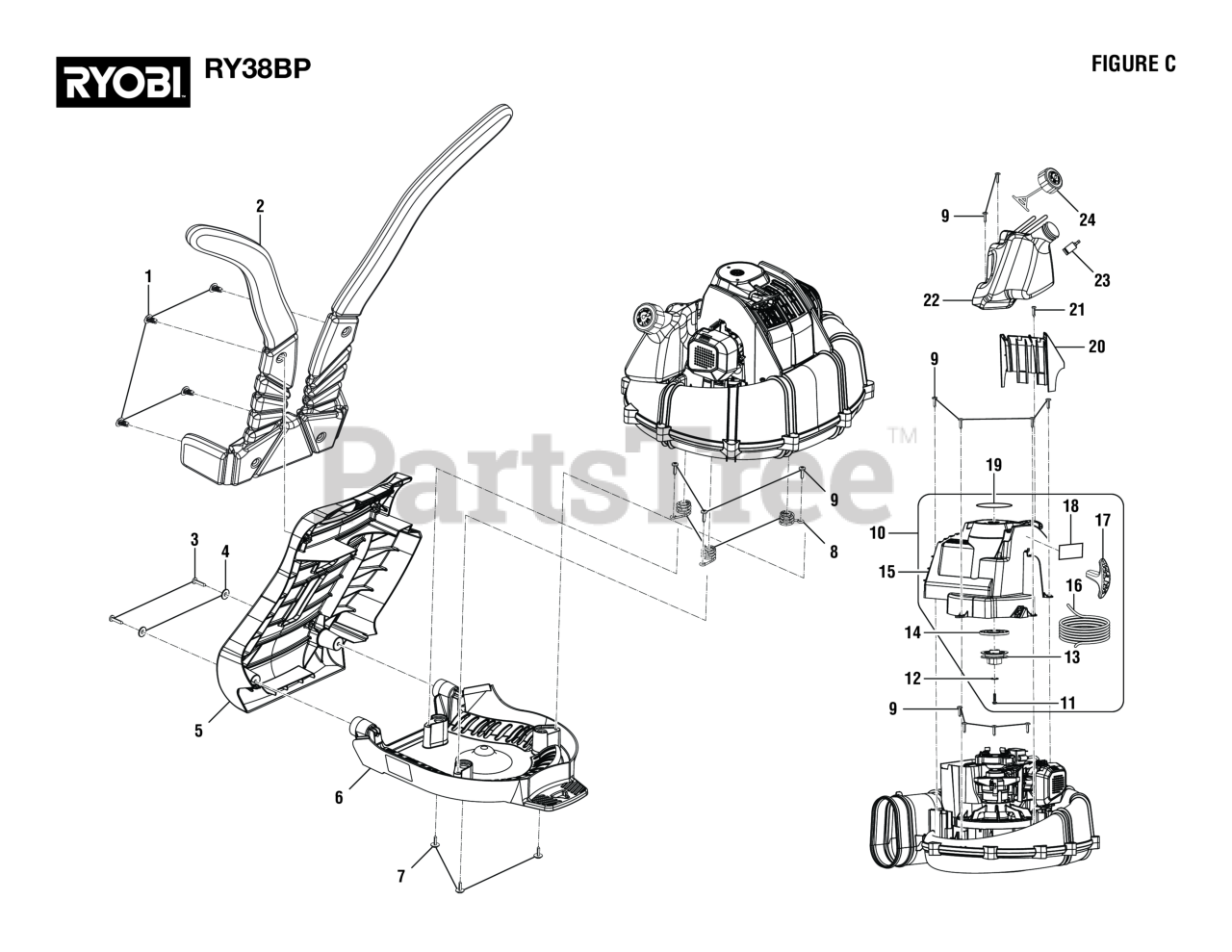

FIGURE C Parts Diagram

  • Title

1

Homelite 525644002

Harness Snap Fastener

$1.99

$

In Stock, only 2 left!

0

2

Homelite 901588003

Strap

$74.99

$

Usually ships in 3-7 days

0

3

Homelite 660618002

SCREW (10-14 X 1 in.)
(Superseded to 82589)

$2.99

$

In Stock, Qty 8

0

4

Homelite 678587001

Washer (OD16 x ID6.8 x 1.5t)

$1.99

$

In Stock, only 2 left!

0

5

Homelite 534931001

Upper Frame

$31.99

$

Usually ships in 3-7 days

0

6

Homelite 534932001

Lower Frame

$

$

Not available

7

Homelite 660626006

Screw (10-14 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 679950001

Spring

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Pan Hd. T.F.)

$1.99

$

In Stock, Qty 5

0

10

Homelite 314618001

Engine Housing and Starter Assembly

Note: (Inc. Key Nos. 11-19)

$53.99

$

Usually ships in 3-7 days

0

11

Homelite 660918004

Screw (M5 x 14 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 678333001

Washer (16OD x 5.3ID x 1.0t)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 518438003

Starter Pulley

$

$

Not available

14

Homelite 308066001

SPRING & CONTAINER

$4.49

$

In Stock, only 1 left!

0

15

Homelite 314619001

Engine Housing w/Labels

Note: (Inc. Key Nos. 18-19)

$33.99

$

Usually ships in 3-7 days

0

16

Homelite 900849002

STARTER ROPE 42 (PKG)

$1.99

$

In Stock, only 1 left!

0

17

Homelite 525485001

Pulley Handle

$1.99

$

In Stock, only 4 left!

0

18

Homelite 941657015

Mix Ratio Label

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 941705027

Logo Label

$1.99

$

Usually ships in 0 days

0

20

Homelite 534936001

Spark Plug Cover

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 660629002

Screw (#10-14 x 3/4 in, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 313783001

Fuel Tank Assembly w/Fuel Lines

Note: (Inc. Key No. 23-24)

$39.99

$

Usually ships in 3-7 days

0

23

Homelite 310976001

Fuel Filter

$

$

Not available

24

Homelite 310816015

Fuel Cap Assembly (Inc. Tether)

$13.99

$

Usually ships in 3-7 days

0
