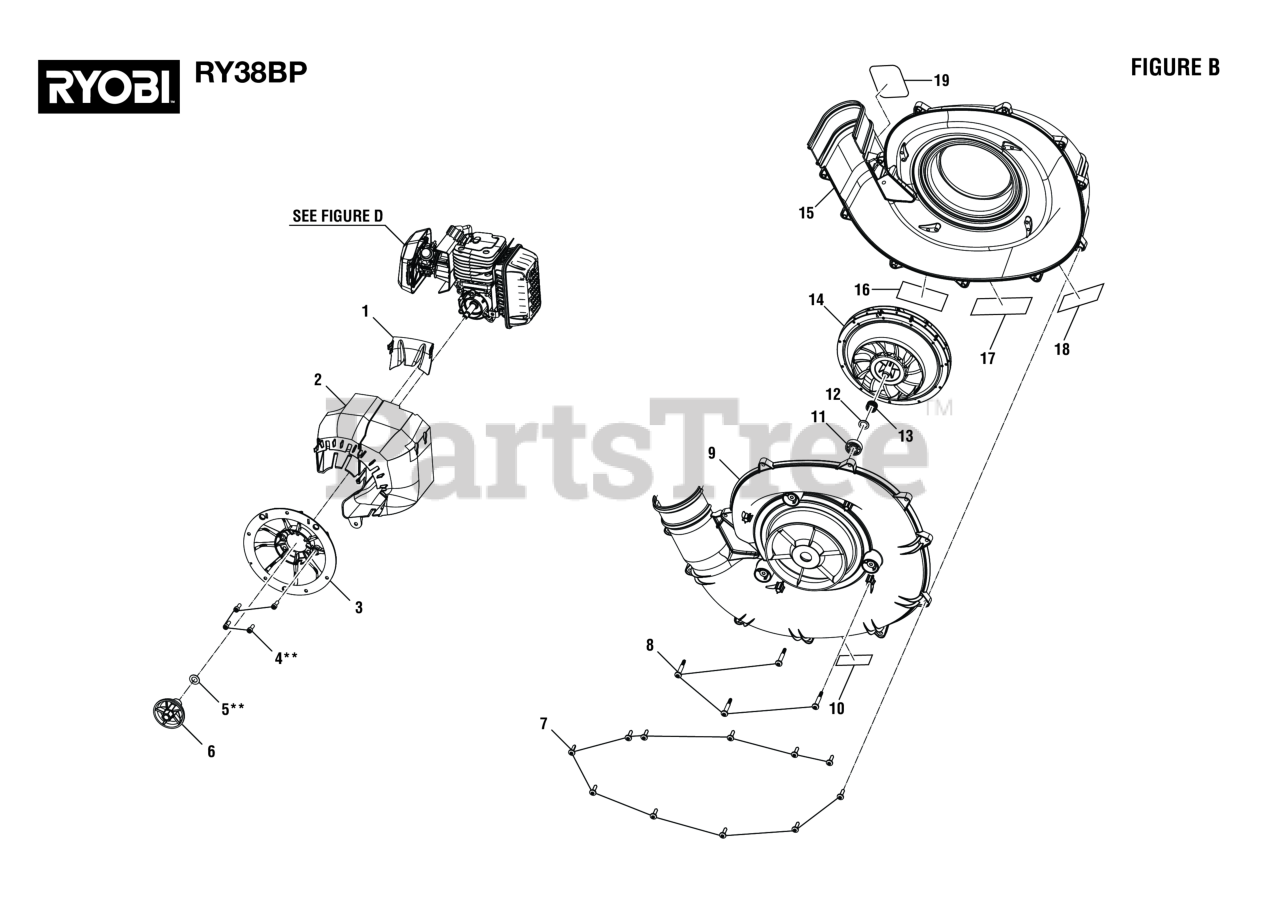

RY 38 BP (090337001) - Ryobi Backpack Blower, Rev 03 (2021-07) FIGURE B Parts Diagram

Backpack Blower, Rev 03

FIGURE B Parts Diagram

  • Title

1

Homelite 536124001

Engine Air Guide

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 314614001

Engine Air Duct

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 643397001

Engine Mount

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 661600001

Bolt (M5 x 14 mm)

Note: Non-Reuseable Parts

$1.99

$

In Stock, only 4 left!

0

5

Homelite 638289001

Washer (Oil Pump Drive Gear)

Note: Non-Reuseable Parts

$1.99

$

In Stock, only 2 left!

0

6

Homelite 314615001

Fan Drive Coupler

$10.99

$

In Stock, only 1 left!

0

7

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Pan Hd. T.F.)

$1.99

$

In Stock, Qty 5

0

8

Homelite 660466003

Shoulder Screw (M5 x 40 mm, T25 Torx Truss Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 314616001

Outer Volute w/Bearing and Label

Note: (Inc. Key No. 10-11)

$41.99

$

In Stock, only 1 left!

0

10

Homelite 941705029

Hair Ingestion Warning Label

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 690697001

Ball Bearing (6001-zz)

$3.49

$

In Stock, only 1 left!

0

12

Homelite 637311001

Washer (OD18 x ID12.15 x 1.5t)

$1.99

$

In Stock, only 3 left!

0

13

Homelite 637049002

Wave Spring

$5.49

$

In Stock, only 1 left!

0

14

Homelite 313723001

Fan Assembly

$80.99

$

In Stock, only 1 left!

0

15

Homelite 314617001

Inner Volute w/Labels

Note: (Inc Key Nos. 16-19)

$63.99

$

Usually ships in 3-7 days

0

16

Homelite 941015028

MPH Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 941705025

Ryobi Logo Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 941015029

CFM Label

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 941657012

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0
