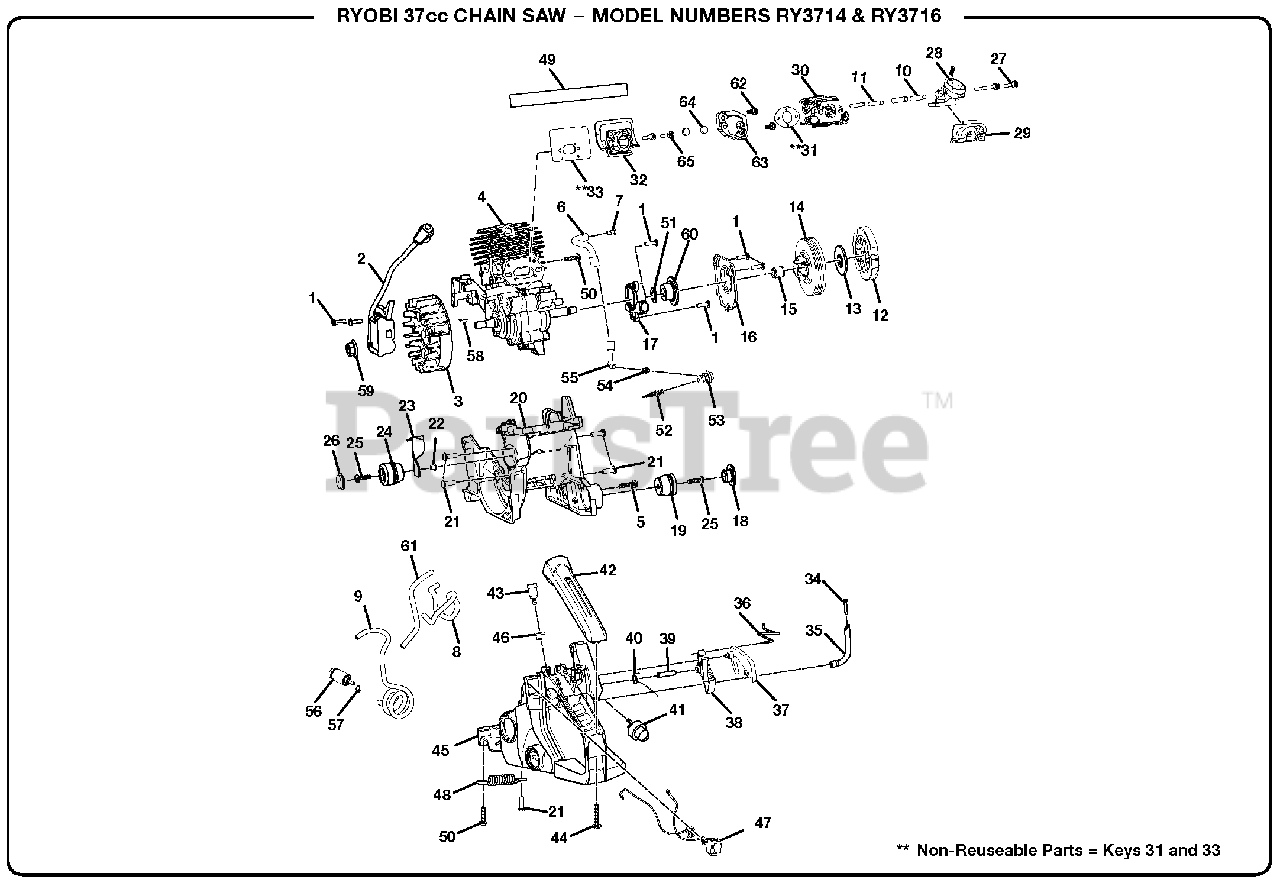

RY 3716 (090180506) - Ryobi Chainsaw, 37cc, Rev 01 (2018-04) General Assembly (Part 2) Parts Diagram

Chainsaw, 37cc, Rev 01

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 660916003

Screw (M4 x 14 mm, T20 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 309266001

Ignition Assembly

$22.99

$

In Stock, only 1 left!

0

3

Homelite 309001001

Flywheel Assembly

$

$

Not available

4

Homelite 309893004

Short Block

Note: (Incl. Key Nos. 1-3, and 58-59)

$

$

Not available

5

Homelite 660918001

Screw (M5 x 19 mm, T25 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 563968002

Hose (Oil Pump Outlet)

$4.49

$

In Stock, only 1 left!

0

7

Homelite 518411001

Pin (Oil Pump Outlet)

$1.99

$

In Stock, Qty 5

0

8

Homelite 570373017

Fuel Hose (Primer Bulb to Tank, 153 mm)

$5.49

$

In Stock, only 2 left!

0

9

Homelite 562967003

Fuel Hose

$5.49

$

In Stock, Qty 7

0

10

Homelite 903166002

Fiberglass Sleeve

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 528789002

Plastic Tube (Carburetor Screw, 28 mm)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 310535001

Clutch Assembly

$10.99

$

Usually ships in 3-7 days

0

13

Homelite 678313001

Plate for Clutch Assembly

$1.99

$

In Stock, only 2 left!

0

14

Homelite 309418001

Drum

$13.99

$

In Stock, only 2 left!

0

15

Homelite 681933001

Bearing

$2.49

$

In Stock, only 4 left!

0

16

Homelite 518414001

Oil Pump Cover

$1.99

$

In Stock, Qty 5

0

17

Homelite 309516001

Oil Pump

$9.99

$

In Stock, only 1 left!

0

18

Homelite 518434001

Damper Cap

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 561426001

Damper

$1.99

$

In Stock, only 3 left!

0

20

Homelite 518442006

Engine Case

$17.99

$

Usually ships in 3-7 days

0

21

Homelite 660917002

Screw (M5 x 14 mm, T25 Torx Hd.)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 678320001

Eyelet

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 901376001

Stopper

$1.99

$

In Stock, only 1 left!

0

24

Homelite 561428001

Damper

$1.99

$

In Stock, only 2 left!

0

25

Homelite 660918003

Screw (M5 x 16 mm, T25 Torx Hd.)

$1.99

$

In Stock, only 4 left!

0

26

Homelite 518435001

Damper Cap.

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 660921004

Bolt (M4 x 45 mm, T25 Torx Hd. Carburetor)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 518465001

Intake Manifold

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 518417001

Throttle Rod Grommet

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 309376002

Carburetor Assembly

$

$

Not available

31

Homelite 901379003

Gasket

Note: Non-Reuseable Parts = Keys 31 and 33

$1.99

$

In Stock, only 1 left!

0

32

Homelite 518864002

Heat Dam

$2.99

$

Usually ships in 3-7 days

0

33

Homelite 903037004

Heat Dam Gasket

Note: Non-Reuseable Parts = Keys 31 and 33

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 660919001

Screw

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 561451001

Breather Pipe

$6.49

$

Usually ships in 3-7 days

0

36

Homelite 638295001

Throttle Rod

$1.99

$

In Stock, Qty 5

0

37

Homelite 518428004

Safety Rock Arm

$1.99

$

In Stock, Qty 5

0

38

Homelite 518466004

Throttle Trigger

$1.99

$

In Stock, Qty 5

0

39

Homelite 638296001

Spring Pin

$1.99

$

In Stock, Qty 5

0

40

Homelite 678325001

Throttle Spring

$1.99

$

In Stock, only 4 left!

0

41

Homelite 300780002

Primer Assembly
(Superseded to 01183)

$

$

Not available

42

Homelite 518429001

Grip Cover

$1.99

$

In Stock, Qty 5

0

43

Homelite 308583001

Breather Assembly

$7.49

$

In Stock, only 1 left!

0

44

Homelite 660918002

Screw (M5 x 27 mm, T25 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 308550008

Rear Handle Assembly

$31.99

$

Usually ships in 3-7 days

0

46

Homelite 561425001

Breather Grommet

$1.99

$

In Stock, Qty 5

0

47

Homelite 760961003

Stop Switch Assembly

$6.49

$

Usually ships in 3-7 days

0

48

Homelite 678321001

Spring

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 900850003

Foam Seal.

$

$

Not available

50

Homelite 660918004

Screw (M5 x 19 mm, T25 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 638289001

Washer (Oil Pump Drive Gear)

$1.99

$

In Stock, only 2 left!

0

52

Homelite 678407001

Cone Spring

$1.99

$

In Stock, only 1 left!

0

53

Homelite 561421001

Grommet

$1.99

$

In Stock, only 4 left!

0

54

Homelite 518413001

Joint

$1.99

$

In Stock, Qty 5

0

55

Homelite 561449001

Rubber Pipe In Oil Pump

$1.99

$

In Stock, Qty 5

0

56

Homelite 300759005

Fuel Filter

$9.99

$

In Stock, only 1 left!

0

57

Homelite 690699001

Fuel Pipe Clip
(Superseded to 6969901)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 690688001

Woodruff Key
(Superseded to 983784006)

$

$

Not available

59

Homelite 690689001

Nut.
(Superseded to 6968901)

$

$

Not available

60

Homelite 518865001

Oil Pump Drive Gear

$2.49

$

In Stock, only 2 left!

0

61

Homelite 570373019

Fuel Hose (Primer Bulb to Carburetor, 160 mm)

$5.49

$

In Stock, only 1 left!

0

62

Homelite 662464001

Screw (M5 x 13 mm, T25 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 531333001

Intake Adapter (37cc)

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 903246001

Foam Pad

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 662395001

Screw (M4 x 19 mm, T25 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0
