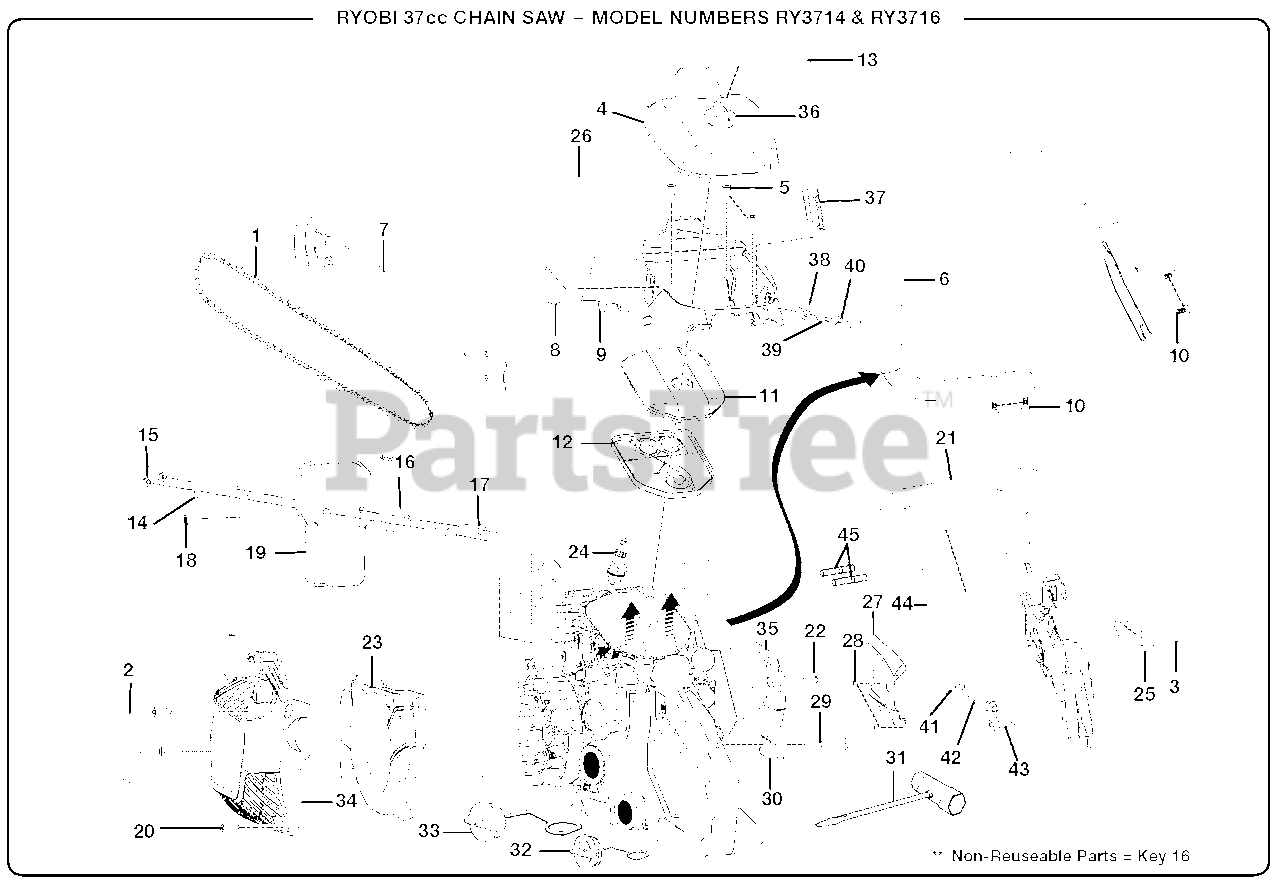

RY 3716 (090180506) - Ryobi Chainsaw, 37cc, Rev 01 (2018-04) General Assembly (Part 1) Parts Diagram

Chainsaw, 37cc, Rev 01

General Assembly (Part 1) Parts Diagram

  • Title
1

Homelite 901212004

14 in. Chain (RY3714, 52 Drive Link)

$

$

Not available

1

Homelite 901361002

16 in. Chain (RY3716, 56 Drive Link)

$38.99

$

In Stock, only 1 left!

0

2

Homelite 940705304

Recoil Housing Label (RY3714)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940705320

Recoil Housing Label (RY3716)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 940705305

Clutch Cover Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 518418006

Air Cleaner Cover

$

$

Not available

5

Homelite 660918001

Screw (M5 x 19 mm, T25 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 518691001

Front Handle

$25.99

$

In Stock, only 1 left!

0

7

Homelite 311482001

14 in. Guide Bar Assembly (RY3714)
(Superseded to 311752001)

$32.99

$

Usually ships in 3-7 days

0

7

Homelite 311482002

16 in. Guide Bar Assembly (RY3716)
(Superseded to 311752002)

$35.99

$

Usually ships in 3-7 days

0

8

Homelite 518427002

Grommet (Idle Adjust)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 518425006

Cylinder Cover

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 660918002

Screw (M5 x 27 mm, T25 Torx Hd.)

$1.99

$

In Stock, Qty 10

0

11

Homelite 518423002

Air Cleaner (Upper)

$3.99

$

In Stock, only 3 left!

0

12

Homelite 518421002

Air Cleaner (Lower)

$3.99

$

In Stock, only 2 left!

0

13

Homelite 940657181

Starting Label (RY3714)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 940657191

Starting Label (RY3716)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 638293004

Muffler Bracket

$1.99

$

In Stock, Qty 5

0

15

Homelite 678311001

Nut (Muffler)

$1.99

$

In Stock, Qty 5

0

16

Homelite 901380001

Gasket (Muffler)

Note: Non-Reusable Parts = Key 16

$1.99

$

In Stock, only 3 left!

0

17

Homelite 660915001

Bolt (Muffler, M5 x 62 mm)

$1.99

$

In Stock, Qty 5

0

18

Homelite 660917002

Screw (M5 x 14 mm, T25 Torx Hd.)

$1.99

$

In Stock, only 4 left!

0

19

Homelite 309377002

Muffler
(Superseded to 309377006)

$103.99

$

Usually ships in 3-7 days

0

20

Homelite 660637001

Screw (10-14 x 22 mm, T25 Torx Truss Hd.)
(Superseded to 82620)

$1.99

$

In Stock, Qty 6

0

21

Homelite 311466001

Clutch Cover Assembly

$

$

Not available

22

Homelite 660916001

Screw (M4 x 10 mm, T20 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

23

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 870174005

Spark Plug (Bosch WSR6F)
(Superseded to 870174002)

$10.99

$

Usually ships in 3-7 days

0

24

Homelite 870174002

Spark Plug (Torch L7RTC)
(Superseded to 870170001)

$10.99

$

Usually ships in 3-7 days

0

25

Homelite 678339003

Flange Nut (5/16-18)

$1.99

$

In Stock, only 2 left!

0

26

Homelite 940851095

Warning Label

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 638298001

Outer Guide Plate

$1.99

$

In Stock, only 3 left!

0

28

Homelite 660922001

Screw (M4 x 12mm, T20 Torx Hd.)

$1.99

$

In Stock, only 4 left!

0

29

Homelite T660931001

Screw (M5 x 33 mm, T25 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 631035004

Chain Guide

$1.99

$

In Stock, only 2 left!

0

31

Homelite 631055005

Combination Wrench

$5.99

$

Usually ships in 3-7 days

0

32

Homelite 308612006

Oil Cap Assembly

$5.99

$

In Stock, only 2 left!

0

33

Homelite 308611005

Fuel Cap Assembly

$6.99

$

In Stock, only 2 left!

0

34

Homelite 308542008

Starter Housing Assembly

$

$

Not available

35

Homelite 638309003

Inner Guide Plate

$3.49

$

Usually ships in 3-7 days

0

36

Homelite 518419004

Knob Cover

$1.99

$

In Stock, only 2 left!

0

37

Homelite 518426001

Cylinder Cap

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 518416001

Choke Rod Grommet

$1.49

$

In Stock, only 2 left!

0

39

Homelite 631034001

Pin
(Superseded to 08939)

$

$

Not available

40

Homelite 518415004

Choke Rod

$

$

Not available

41

Homelite 678327001

Adjusting Nut

$

$

Not available

42

Homelite 610623001

Adjusting Screw

$

$

Not available

43

Homelite 610624001

Adjusting Gear

$

$

Not available

44

Homelite 940851096

Chain Brake Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 660503006

Bar Stud (5/16-18 x 23.5 mm / 5/16-18 x 18 mm)

$1.99

$

In Stock, only 3 left!

0

Homelite 580438012

14 in. Scabbard (RY3714)

Note: Not shown

$3.99

$

In Stock, only 1 left!

0

Homelite 580699012

16 in. Scabbard (RY3716)

$5.49

$

Usually ships in 3-7 days

0

Homelite 308552005

Carrying Case

$

$

Not available

Homelite 991000499

Operator's Manual (960087109)

$

$
