RY 34421 - Ryobi String Trimmer, 30cc Figure C Parts Diagram

String Trimmer, 30cc

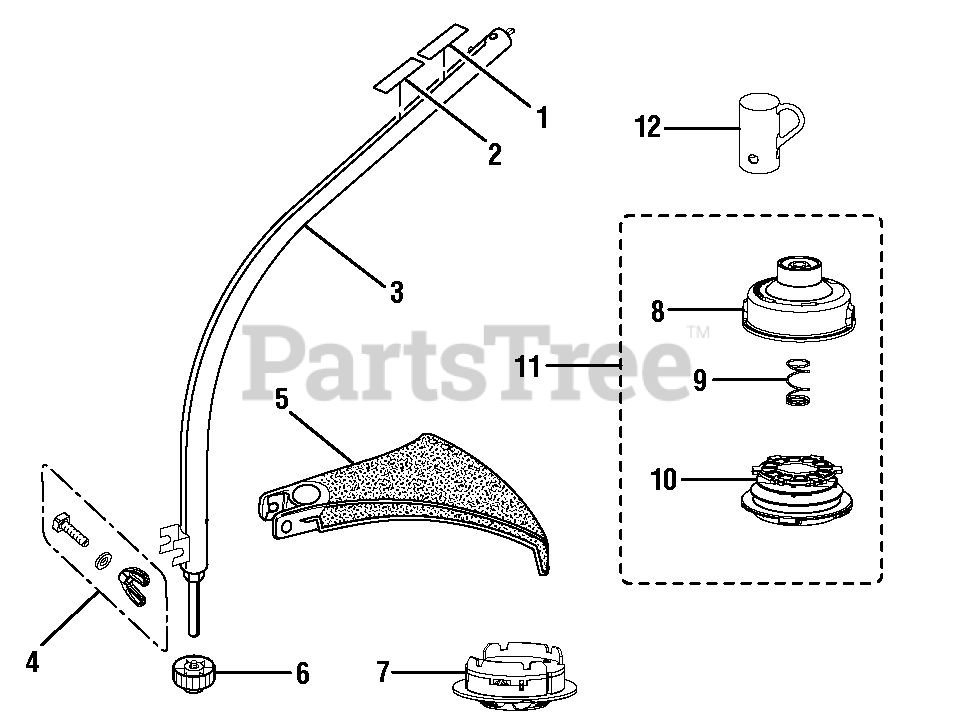

Figure C Parts Diagram

  • Title
1

Homelite 940726013

Expand-it Label

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 940230132

Warning Decal
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 308841002

Curved Shaft Assembly

$

$

Not available

4

Homelite 120642001

Fastener Kit
(Superseded to A09361)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 308052001

Grass Deflector
(Superseded to T308744001)

$

$

Not available

6

Homelite 308042002

Spool Retainer (Black)

$

$

Not available

7

Homelite 310734002

Dual Spool Insert

$9.49

$

Usually ships in 3-7 days

0

8

Homelite 310643001

Housing
(Superseded to 310643004)

$8.99

$

In Stock, only 1 left!

0

9

Homelite 678022001

Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

10

Homelite 310412001

Spool
(Superseded to 312223001)

$

$

Not available

11

Homelite 309562001

Reel Easy String Head Assembly
(Superseded to 309562007)

$

$

Not available

12

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0
