RY 34007 (090432017) - Ryobi String Trimmer Powerhead, 30cc Figure C - Model RY34447 Parts Diagram

String Trimmer Powerhead, 30cc

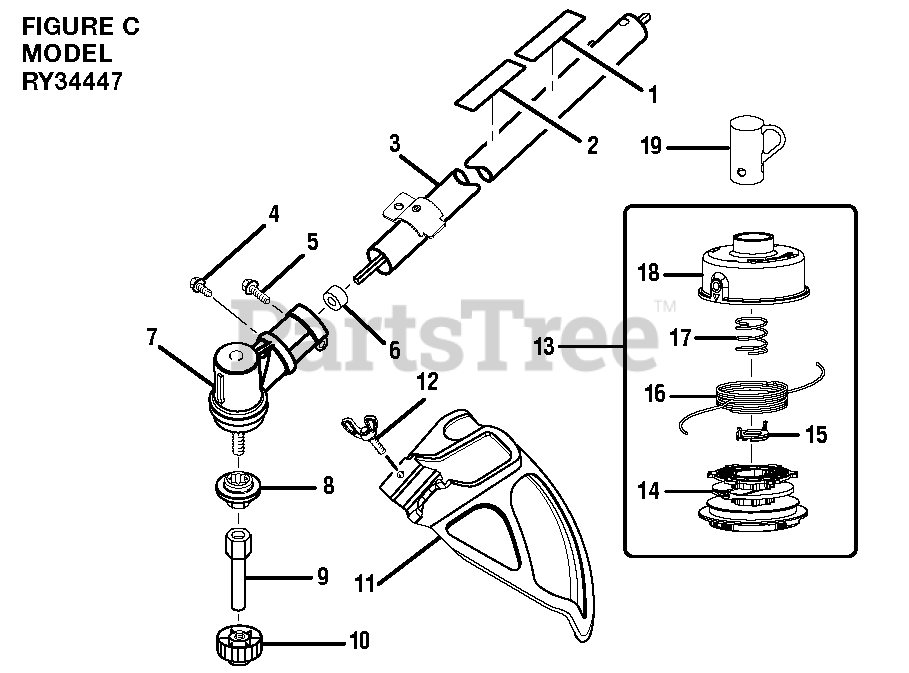

Figure C - Model RY34447 Parts Diagram

  • Title

1

Homelite 940726013

Logo Label

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 940657165

Warning Decal

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 308035047

Straight Shaft Assembly

Note: (Inc. Key Nos. 1-2 and 19)

$37.99

$

In Stock, only 1 left!

0

4

Homelite 660641001

Screw (10-24 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Hd.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

6

Homelite 518367001

Spacer

$1.99

$

In Stock, only 3 left!

0

7

Homelite 308210002

Gear Head
(Superseded to 308210009)

$48.99

$

In Stock, only 1 left!

0

8

Homelite 678011002

Flanged Washer

$

$

Not available

9

Homelite 678019002

Stringhead Adapter

$

$

Not available

10

Homelite 308042003

Spool Retainer (Red)

$7.49

$

In Stock, Qty 5

0

11

Homelite 308473001

Grass Deflector Assembly

Note: (Inc. Key No. 12)

$

$

Not available

12

Homelite 660886001

Wing Screw (1/4-20 x 1-1/4 in.)

$1.99

$

In Stock, Qty 5

0

13

Homelite 309562008

Reel Easy String Cutting Head Assembly

Note: (Inc. 14-18)

$

$

Not available

14

Homelite 527780001

Spool

$5.49

$

Usually ships in 3-7 days

0

15

Homelite 526939001

Spool Cover

$

$

Not available

16

Cutting Line (0.095 Dia.)

Note: Standard Hardware Item - May Be Purchased Locally

$

$

Not available

17

Homelite 679958001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 310643005

Main Housing

$3.49

$

In Stock, only 1 left!

0

19

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0
