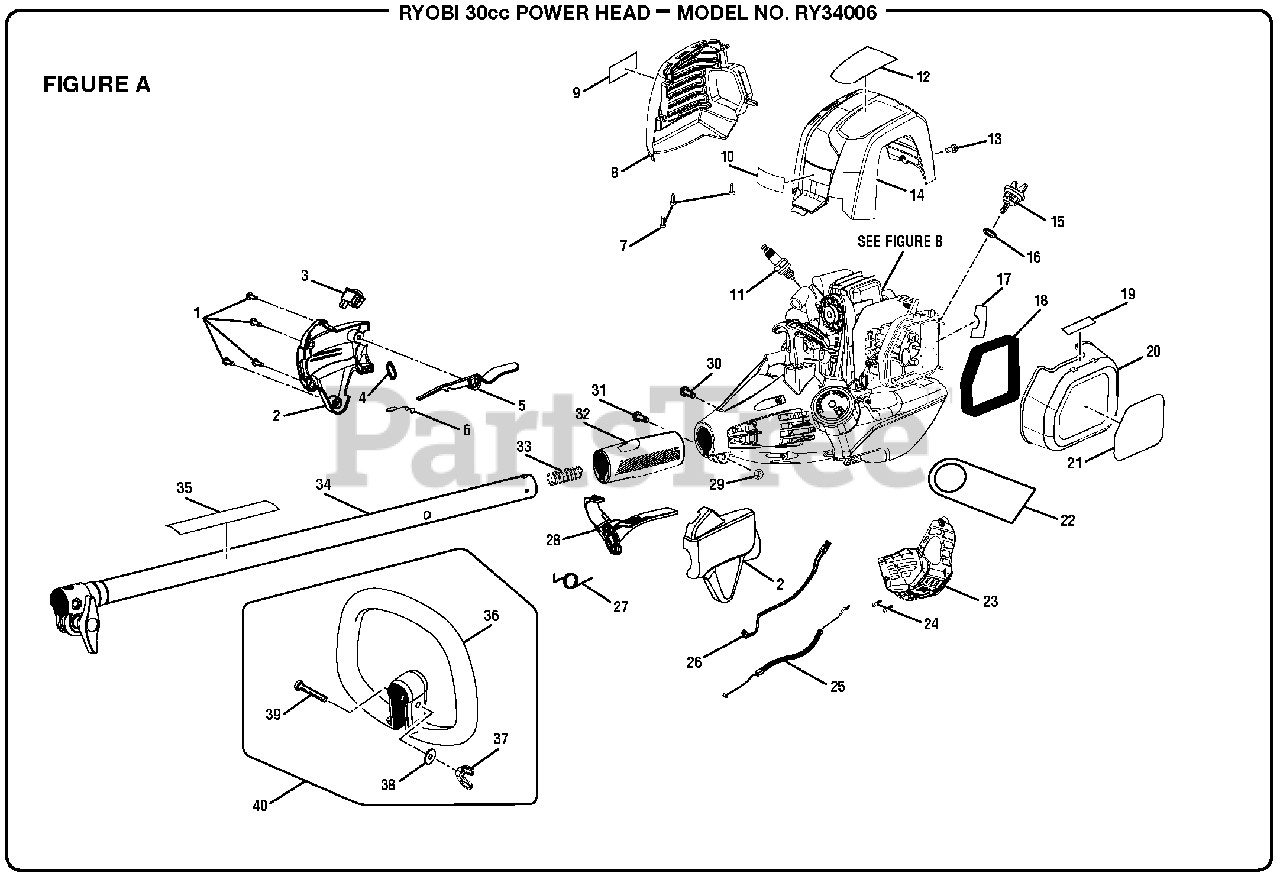

RY 34006 - Ryobi String Trimmer Powerhead, 30cc Figure A Parts Diagram

String Trimmer Powerhead, 30cc

Figure A Parts Diagram

  • Title

1

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

2

Homelite 120950026

Control Handle Assembly

$2.49

$

In Stock, only 1 left!

0

3

Homelite 760700002

Switch (Momentary Contact)
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

4

Homelite 638431001

Strap Hanger

$1.99

$

In Stock, only 2 left!

0

5

Homelite 518695002

Trigger Lock

$1.49

$

In Stock, only 1 left!

0

6

Homelite 678818001

Spring

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 660466002

Screw (M4 x 12 mm, T20 Truss Hd.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 518995001

Muffler Housing

$6.49

$

Usually ships in 3-7 days

0

9

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 940705020

Logo Label

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 870301002

Spark Plug (Champion RY4C)

Note: Standard Hardware Item - May Be Purchased Locally

$9.99

$

In Stock, only 1 left!

0

12

Homelite 940991037

X430 Label (RY34006)

$1.49

$

Usually ships in 3-7 days

0

Homelite 940991026

C430 Label (RY34426)

$1.99

$

Usually ships in 3-7 days

0

Homelite 940991027

S430 Label (RY34446)

$1.99

$

In Stock, only 4 left!

0

13

Homelite 660510006

Shoulder Screw (M4 x 11 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 4 left!

0

14

Homelite 518142003

Top Cover

$9.49

$

Usually ships in 3-7 days

0

15

Homelite 310302001

Oil Cap/Dipstick

Note: (Inc. Key No. 16)

$3.99

$

Usually ships in 3-7 days

0

16

Homelite 570400001

O-Ring

$1.99

$

In Stock, only 3 left!

0

17

Homelite 940680023

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 901723001

Air Filter

$1.99

$

In Stock, only 4 left!

0

19

Homelite 940216002

Choke Label

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 525016001

Air Filter Cover

$2.49

$

In Stock, only 3 left!

0

21

Homelite 940734067

Starting Label

$

$

Not available

22

Homelite 940971028

Oil Hang Tag

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 518548001

Bottom Cover

$2.99

$

Usually ships in 3-7 days

0

24

Homelite T660619001

Screw (#6-19 x 1/2 in., Phillips Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 308842007

Throttle Cable

$2.49

$

In Stock, Qty 8

0

26

Homelite 308431002

Lead Assembly

$

$

Not available

27

Homelite 690694002

Torsion Spring (Throttle Trigger)

$1.99

$

In Stock, only 4 left!

0

28

Homelite 518696002

Throttle Trigger

$

$

Not available

29

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.99

$

In Stock, Qty 6

0

30

Homelite 660634001

Screw (#8-16 x 5/16 in., T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, Qty 20+

0

31

Homelite 660697002

Bolt (M6 x 20 mm, T27 Torx Button Hd.)

$1.99

$

In Stock, only 1 left!

0

32

Homelite 570234002

Rear Handle
(Superseded to 570234010)

$4.99

$

In Stock, only 2 left!

0

33

Homelite 690140011

Compression Spring
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

34

Homelite 120950028

Upper Boom Assembly
(Superseded to 308470056)

Note: (Inc. Key No. 35)

$

$

Not available

35

Homelite 940657034

Warning Label

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 518738001

Front Handle

$

$

Not available

37

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

38

Homelite 678008001

Washer (ID7 x OD19 x 1-3/4t)

$1.99

$

In Stock, only 1 left!

0

39

Homelite 660643008

Screw (1/4-20 x 40 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 308991001

Front Handle Assembly

Note: (Inc. Key Nos. 36-39)

$

$

Not available

Homelite 990000200

Operator's Manual

$

$

Currently unavailable
