RY 30931 - Ryobi String Trimmer, 30cc Figure B Parts Diagram

String Trimmer, 30cc

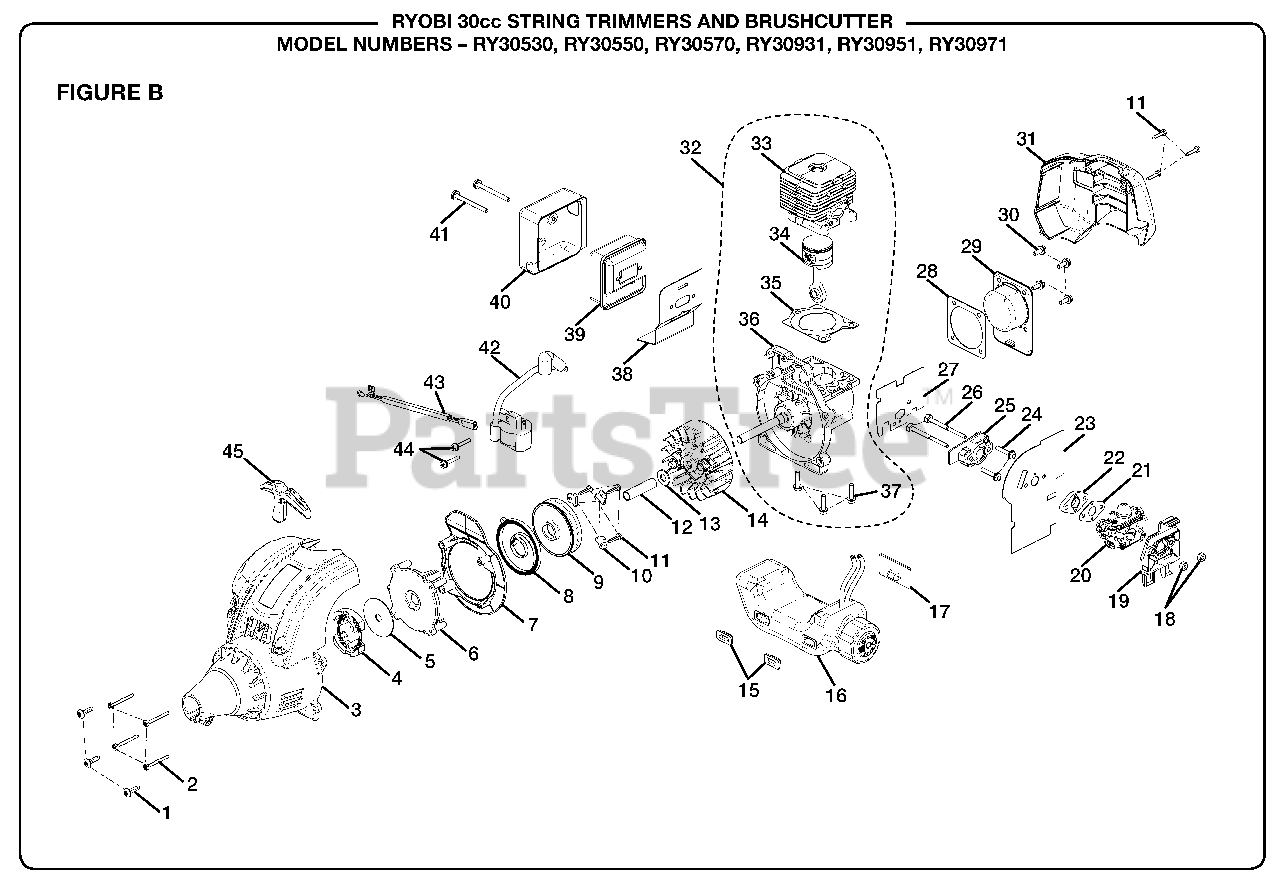

Figure B Parts Diagram

  • Title

1

Homelite 660630002

Screw
(Superseded to 82538)

Note: (10-24 x 3/4 in.) Purchase locally

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 661508001

Screw

Note: (M4 x 38 mm) Purchase locally

$1.99

$

Usually ships in 0 days

0

3

Homelite 308194005

Starter Housing Assembly

$

$

Not available

4

Homelite 300960002

Clutch Assembly

$10.99

$

In Stock, only 1 left!

0

5

Homelite 638090001

Washer

$1.99

$

In Stock, only 4 left!

0

6

Homelite 518134001

Starter Retaining

$

$

Not available

7

Homelite 518854001

Baffle Plate

$1.49

$

In Stock, only 3 left!

0

8

Homelite 638033001

Spring & Container

$5.49

$

Usually ships in 3-7 days

0

9

Homelite 308386001

Pulley Assembly
(Superseded to 308374001)

$

$

Not available

10

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

11

Homelite 660466001

Screw

Note: (M4 x 18 mm) Purchase locally

$1.99

$

In Stock, Qty 7

0

12

Homelite 638284003

Spacer

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

14

Homelite 308433004

Rotor Assembly

$14.99

$

Usually ships in 3-7 days

0

15

Homelite 570256001

Bumper
(Superseded to 98792)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308181008

Fuel Tank & Cap Assembly

$

$

Not available

17

Homelite 570549001

Bumper

$1.49

$

In Stock, only 1 left!

0

18

Homelite 678027001

Lock Nut
(Superseded to 81208)

Note: (10-24) Purchase locally

$

$

Not available

19

Homelite 518766001

Air Filter Base

$

$

Not available

20

Homelite 308054012

Carburetor Assembly
(Superseded to 308054013)

$

$

Not available

21

Homelite 900994004

Carburetor Gasket

$

$

Not available

22

Homelite 590456003

Spacer
(Superseded to 5945603)

$

$

Not available

23

Homelite 900740003

Carburetor Gasket

$1.49

$

In Stock, only 1 left!

0

24

Homelite 660662001

Screw
(Superseded to 093221)

Note: (10-24 x 1 in. Pan Hd.) Purchase locally

$

$

Not available

25

Homelite 518070001

Heat Dam

$

$

Not available

26

Homelite 660346002

Screw

Note: (10 x 2-1/2 in.) Purchase locally

$

$

Not available

27

Homelite 901657001

Heat Dam Gasket

$1.49

$

In Stock, only 2 left!

0

28

Homelite 900954001

Crankcase Gasket

$

$

Not available

29

Homelite 638031001

Crankcase Cover
(Superseded to PS02130)

$

$

Not available

30

Homelite 660664001

Pan Head Screw
(Superseded to PS01565)

Note: (10-24 x 14mm) Purchase locally

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 518775001

Rear Housing

$3.49

$

In Stock, only 1 left!

0

32

Homelite 308192008

Short Block Assembly

Note: (Inc. Key Nos. 33-37)

$

$

Not available

33

Homelite 640069002

Cylinder
(Superseded to 640069003)

$46.99

$

Usually ships in 3-7 days

0

34

Homelite 308023003

Piston w/Rod Assembly
(Superseded to 985872001)

$

$

Not available

35

Homelite 900953001

Cylinder Gasket

$

$

Not available

36

Homelite 308191008

Crankcase Assembly

$

$

Not available

37

Homelite 660342002

Screw

Note: (M5 x 0.8-20 mm) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 901452005

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 309316001

Muffler Assembly

$

$

Not available

40

Homelite 638481001

Heat Shield

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 660638003

Screw
(Superseded to PS03999)

Note: (10-24 x 2-1/8 in.) Purchase locally

$

$

Not available

42

Homelite 308389002

Ignition Module

$30.99

$

Usually ships in 3-7 days

0

43

Homelite 308863014

Electrical Wire Assembly

$

$

Not available

44

Homelite 660660001

Screw
(Superseded to 82540)

Note: (M4 x 25 mm) Purchase locally

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 511731001

Starter Grip
(Superseded to PS06114)

$

$

Not available
