RY 30931 - Ryobi String Trimmer, 30cc Figure A Parts Diagram

String Trimmer, 30cc

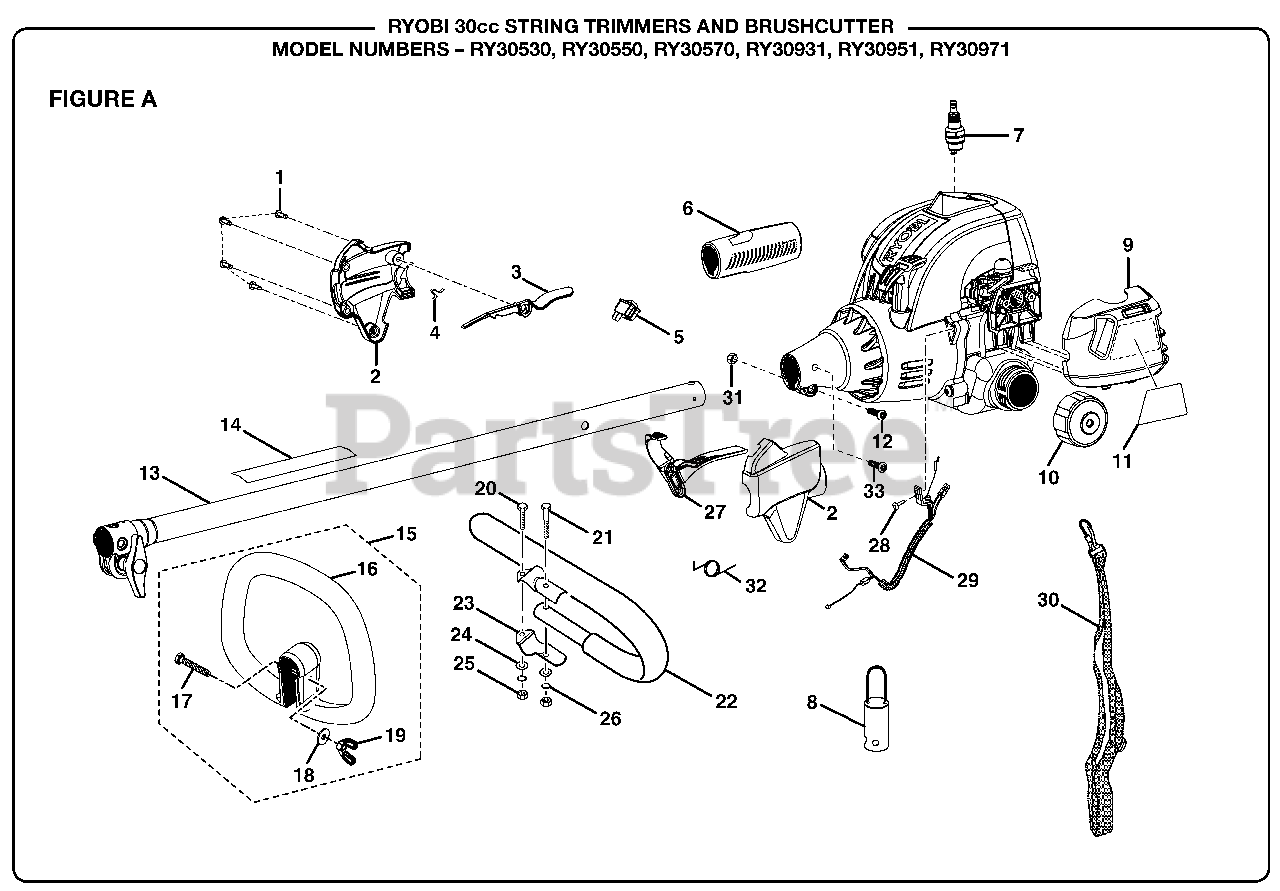

Figure A Parts Diagram

  • Title

1

Homelite 660563002

Screw

Note: (M4 x 20 mm) Purchase locally

$1.99

$

In Stock, only 4 left!

0

2

Homelite 308869002

Control Handle Assembly

$

$

Not available

3

Homelite 518695001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

4

Homelite 638431001

Strap Hanger

$1.99

$

In Stock, only 2 left!

0

5

Homelite 760700002

Switch
(Superseded to 760700001)

Note: (Momentary Contact)

$4.49

$

In Stock, only 1 left!

0

6

Homelite 570234002

Rear Handle
(Superseded to 570234010)

$4.99

$

In Stock, only 2 left!

0

7

Homelite 870174001

Spark Plug

Note: (Champion RCJ6Y) Purchase locally

$4.49

$

In Stock, Qty 20+

0

8

Homelite 518366001

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

9

Homelite 518777001

Air Box Cover

$1.99

$

In Stock, Qty 5

0

10

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

11

Homelite 940686026

Label
(Superseded to 940686150)

$1.49

$

In Stock, only 3 left!

0

12

Homelite 660697002

Bolt

Note: (M6 x 20 mm)

$1.99

$

In Stock, only 1 left!

0

13

Homelite 308470004

Upper Boom Assembly

$

$

Not available

14

Homelite 940230132

Warning Decal
(Superseded to 984032001)

Note: (CS30 and SS30)

$2.49

$

Usually ships in 3-7 days

0

Homelite 940627024

Warning Decal
(Superseded to 985165001)

Note: (BC30)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 308991001

Front Handle Assembly

Note: (CS30 and SS30)

$

$

Not available

16

Homelite 518738001

Front Handle

$

$

Not available

17

Homelite 660643008

Bolt

Note: (1/4-20 x 40 mm)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 678008001

Flat Washer

$1.99

$

In Stock, only 1 left!

0

19

Homelite 678246001

Wing Nut
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

20

Homelite 660643002

Bolt
(Superseded to 82496)

Note: (1/4-20 x 1 in. Hex Hd.) (BC30) Purchase locally

$

$

Not available

21

Homelite 660643001

Bolt

Note: (1/4-20 x 1-1/2 in. Hex Hd.) (BC30) Purchase locally

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 308046001

“J” Handle and Grip
(Superseded to A08130)

Note: (BC30)

$27.99

$

In Stock, only 1 left!

0

23

Homelite 638014001

Handle Bar Clamp
(Superseded to 00422)

Note: (BC30)

$1.49

$

In Stock, only 1 left!

0

24

Homelite 678013001

Washer

Note: (BC30)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 678016001

Hex Nut
(Superseded to 81242)

Note: (1/4-20) (BC30) Purchase locally

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 678012001

Lock Washer
(Superseded to 83009)

Note: (BC30)

$8.49

$

Usually ships in 3-7 days

0

27

Homelite 518696001

Throttle Trigger

$

$

Not available

28

Homelite 660616001

Screw

Note: (10-24 x 7/8 in.) Purchase locally

$

$

Not available

29

Homelite 308439003

Throttle and Lead Assembly

Note: (Inc. Key No. 5)

$

$

Not available

30

Homelite 308487001

Shoulder Harness

Note: (BC30)

$11.99

$

In Stock, only 1 left!

0

31

Homelite 678029002

Hex Nut

Note: (M6) Purchase locally

$1.99

$

In Stock, Qty 6

0

32

Homelite 690694002

Spring

$1.99

$

In Stock, only 4 left!

0

33

Homelite 660634001

Screw

Note: (8-16 x 5/16 in. Torx T.F.) Purchase locally

$1.99

$

In Stock, Qty 20+

0

Homelite 987000184

Operator's Manual

Note: (960703002)

$

$

Not available
