RY 30564 - Ryobi Brush Cutter, 30cc Figure B Parts Diagram

Brush Cutter, 30cc

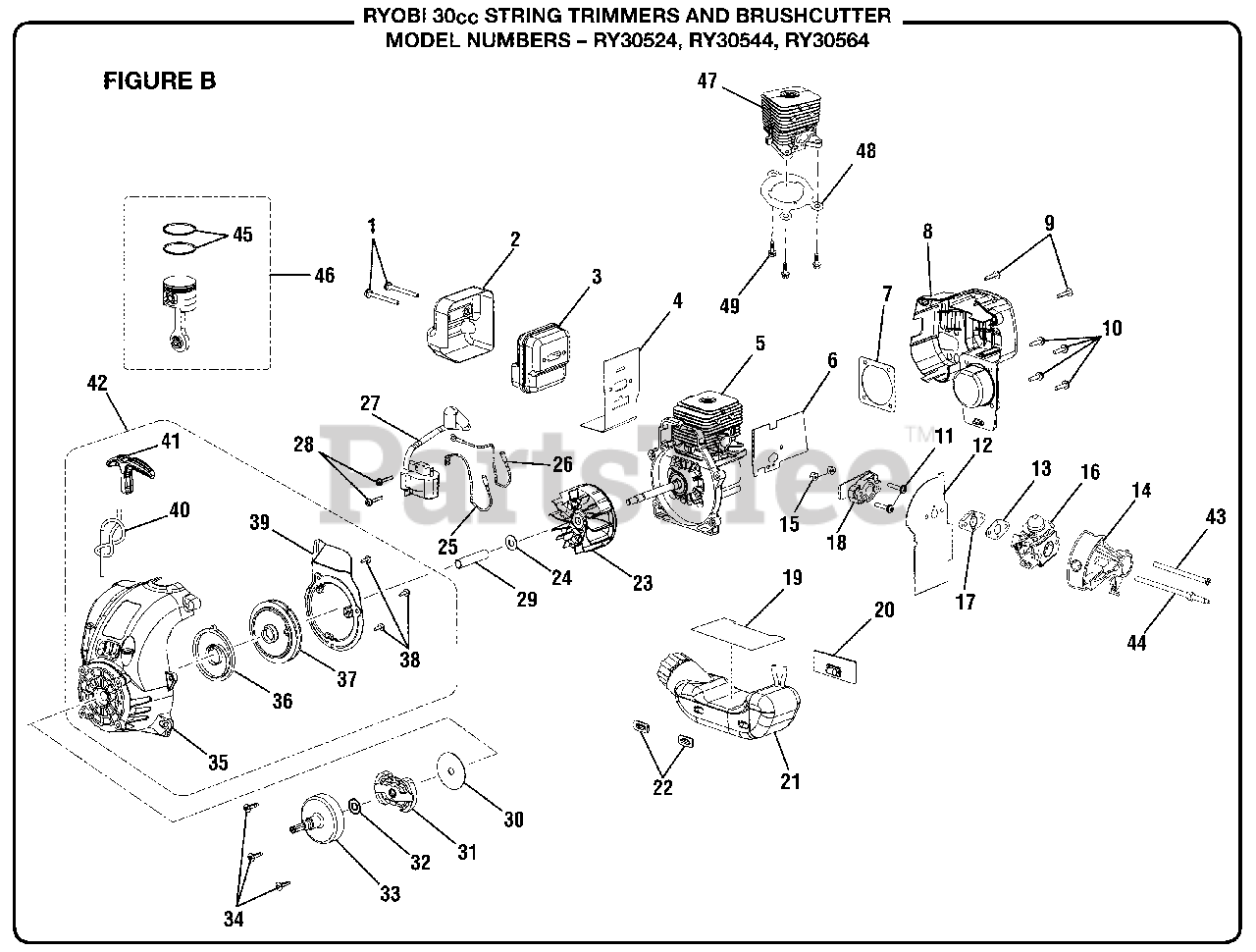

Figure B Parts Diagram

  • Title

1

Homelite 660638003

Screw (10-24 x 2-1/8 in Torx Tr Hd.)
(Superseded to PS03999)

Note: Purchase locally from retailer where unit was purchased.

$

$

Not available

2

Homelite 638094001

Heat Shield
(Superseded to 984743001)

$

$

Not available

3

Homelite 308092008

Muffler Assembly
(Superseded to 985869001)

$

$

Not available

4

Homelite 900994006

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 308192004

Short Block Assembly (30 cc)

Note: External Gaskets Not Included

$69.99

$

Usually ships in 3-7 days

0

6

Homelite 900994010

Intake Gasket
(Superseded to 985248001)

$

$

Not available

7

Homelite 900954001

Cover Gasket

$

$

Not available

8

Homelite 518107003

Rear Housing
(Superseded to 984829001)

$

$

Not available

9

Homelite 660674001

Screw (10-14 x 7/8 in Truss Hd T.f.)
(Superseded to 82537)

Note: Purchase locally from retailer where unit was purchased.

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 660638004

Screw w/Lock Washer (10-24 x 3/4 in Pan Hd Torx)
(Superseded to 984812001)

Note: Purchase locally from retailer where unit was purchased.

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 660662001

Screw (10-24 Pan Hd.)
(Superseded to 093221)

$

$

Not available

12

Homelite 900740002

Carburetor Gasket
(Superseded to 9074002)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 900994004

Carburetor Gasket (Non-strato)

$

$

Not available

14

Homelite 518498002

Roto-choke Base

$

$

Not available

15

Homelite 678536001

Nut (M5-0.8 x 5)

Note: Purchase locally from retailer where unit was purchased.

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 308054007

Carburetor Assembly

$36.99

$

In Stock, only 4 left!

0

17

Homelite 590456003

Spacer
(Superseded to 5945603)

$

$

Not available

18

Homelite 518070001

Heat Dam

$

$

Not available

19

Homelite 900999002

Tank Insulation Gasket

$1.49

$

In Stock, only 2 left!

0

20

Homelite 570549001

Rubber Bumper

$1.49

$

In Stock, only 1 left!

0

21

Homelite 308181005

Fuel Tank Assembly w/Cap

$

$

Not available

22

Homelite 570256001

Bumper
(Superseded to 98792)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 308433001

Rotor w/Pawls Assembly

$14.99

$

Usually ships in 3-7 days

0

24

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

25

Homelite 290222001

Lead w/Terminals
(Superseded to A06963)

$3.99

$

Usually ships in 3-7 days

0

26

Homelite 290223001

Lead w/Terminals
(Superseded to A06964)

$

$

Not available

27

Homelite 308389002

Ignition Module w/3 Sec Kill Switch

$30.99

$

Usually ships in 3-7 days

0

28

Homelite 660660001

Screw (8-32 Thd Forming)
(Superseded to 82540)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 638091003

Spacer Tube

$

$

Not available

30

Homelite 638090001

Washer (Pkg)

$1.99

$

In Stock, only 4 left!

0

31

Homelite 300960002

Clutch Assembly

$10.99

$

In Stock, only 1 left!

0

32

Homelite 678257001

Clutch Washer

$

$

Not available

33

Homelite 308177001

Drum and Connector

$

$

Not available

34

Homelite 660630002

Screw (10-24 x 3/4 in.)
(Superseded to 82538)

Note: Purchase locally from retailer where unit was purchased.

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 308436001

Starter Housing and Eyelet Assembly

$

$

Not available

36

Homelite 638033001

Spring and Container

$5.49

$

Usually ships in 3-7 days

0

37

Homelite 308374001

Starter Pulley Assembly
(Superseded to 308386001)

$

$

Not available

38

Homelite 660694001

Screw (Thread Forming)
(Superseded to 82543)

$

$

Not available

39

Homelite 638229001

Baffle/Isolator

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 900849002

Starter Rope 42 (Pkg)

$1.99

$

In Stock, only 1 left!

0

41

Homelite 511731001

Starter Grip
(Superseded to PS06114)

$

$

Not available

42

Homelite 308194004

Starter Housing Assembly

Note: Inc. key nos 35-41

$

$

Not available

43

Homelite 660454002

Bolt (M5-0.8 x 57)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 660453002

Double Sided Hex Bolt

$

$

Not available

45

Homelite 690161005

Piston Ring

$

$

Not available

46

Homelite 308023003

Piston w/Rod Assembly
(Superseded to 985872001)

$

$

Not available

47

Homelite 640069002

Cylinder, 30cc
(Superseded to 640069003)

$46.99

$

Usually ships in 3-7 days

0

48

Homelite 900953001

Cylinder Gasket

$

$

Not available

49

Homelite 660342002

Screw (M5 X 20 mm)

$1.49

$

Usually ships in 3-7 days

0
