RY 30562 - Ryobi Brush Cutter, 30cc Figure A Parts Diagram

Brush Cutter, 30cc

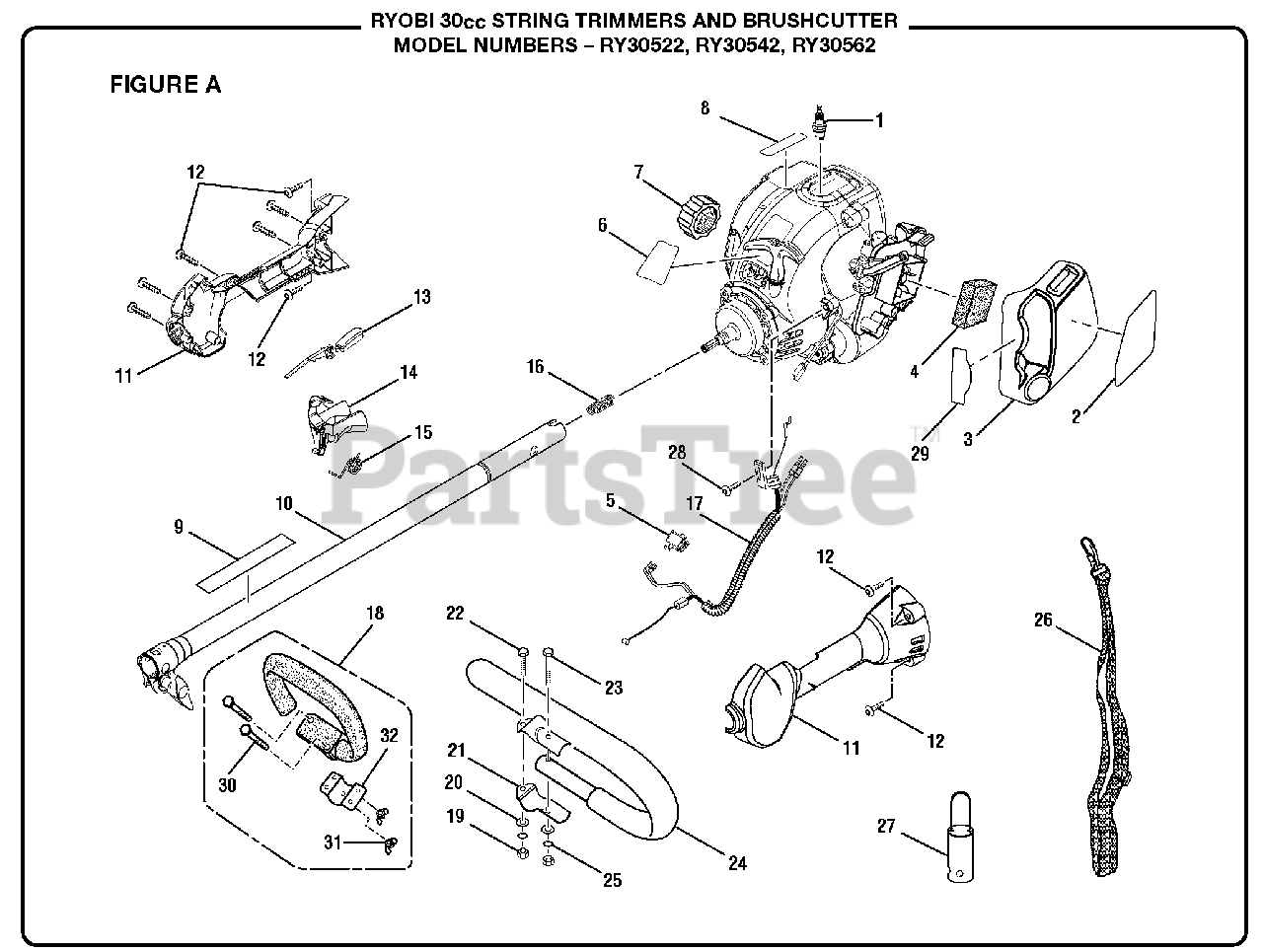

Figure A Parts Diagram

  • Title

1

Homelite 870174001

Spark Plug

Note: (Champion RCJ6Y), Purchase locally from retailer where unit was purchased.

$4.49

$

In Stock, Qty 20+

0

2

Homelite 940967004

Starting Label

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 518096001

Air Box Cover

$

$

Not available

4

Homelite 900952001

Air Filter Element
(Superseded to 98760)

$

$

Not available

5

Homelite 760363002

Switch (Momentary Contact)
(Superseded to PS02764)

$

$

Not available

6

Homelite 940627021

Model Label (CS30)
(Superseded to 985162001)

$2.49

$

Usually ships in 3-7 days

0

Homelite 940627022

Model Label (SS30)
(Superseded to 985163001)

$

$

Not available

Homelite 940627023

Model Label (BC30)
(Superseded to 985164001)

$

$

Not available

7

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

8

Homelite 940299600

Logo Plate
(Superseded to 985157001)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 940230132

Warning Decal (CS30 and SS30)
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

Homelite 940627027

Warning Decal (BC30)
(Superseded to 984102002)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 000998353

Upper Boom Assembly (CS0 and SS30)

$

$

Not available

Homelite 000998354

Upper Boom Assembly (BC30)

$

$

Not available

11

Homelite 000998236

Control Handle Assembly

$

$

Not available

12

Homelite 660618002

Screw (10-14 x 1 in.)
(Superseded to 82589)

Note: Purchase locally from retailer where unit was purchased.

$2.99

$

In Stock, Qty 7

0

13

Homelite 518011002

Trigger Lock
(Superseded to PS06258)

$

$

Not available

14

Homelite 518012002

Trigger
(Superseded to PS06259)

$

$

Not available

15

Homelite 678021001

Torsion Spring
(Superseded to PS01718)

$2.49

$

In Stock, only 2 left!

0

16

Homelite 678252001

Compression Spring

$

$

Not available

17

Homelite 308439001

Throttle and Lead Assembly

$

$

Not available

18

Homelite 308472001

Front Handle Assembly (CS0 and SS30)

$

$

Not available

19

Homelite 678016001

Hex Nut (1/4-20) (BC30)
(Superseded to 81242)

Note: Purchase locally from retailer where unit was purchased.

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 678013001

Washer (BC30)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 638014001

Handle Bar Clamp (BC30)
(Superseded to 00422)

$1.49

$

In Stock, only 1 left!

0

22

Homelite 660643002

Bolt (1/4-20 x 1 in.Hex Hd.) (BC30)
(Superseded to 82496)

Note: Purchase locally from retailer where unit was purchased.

$

$

Not available

23

Homelite 660643001

Bolt (1/4-20 x 1-1/2 in.Hex Hd.) (BC30)

Note: Purchase locally from retailer where unit was purchased.

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 308046001

"J" Handle and Grip (BC30)
(Superseded to A08130)

$27.99

$

In Stock, only 1 left!

0

25

Homelite 678012001

Lock Washer (BC30)
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

26

Homelite 308487001

Shoulder Strap (BC30)

$11.99

$

In Stock, only 1 left!

0

27

Homelite 518019001

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

28

Homelite 660616001

Screw (10-24 x 7/8 in.)

Note: Purchase locally from retailer where unit was purchased.

$

$

Not available

29

Homelite 940330006

Choke Label

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 660881001

Bolt (M5 x 30 mm Hex Hd.) (CS0 and SS30)

Note: Purchase locally from retailer where unit was purchased.

$

$

Not available

31

Homelite 678256001

Wing Nut (M5)

Note: Purchase locally from retailer where unit was purchased.

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 638008001

Handle Bar Clamp (CS30 and SS30)
(Superseded to 984251001)

$10.99

$

Usually ships in 3-7 days

0

Homelite 987000079

Operator's Manual

$

$

Not available
