RY 30550 - Ryobi String Trimmer, 30cc Figure C Parts Diagram

String Trimmer, 30cc

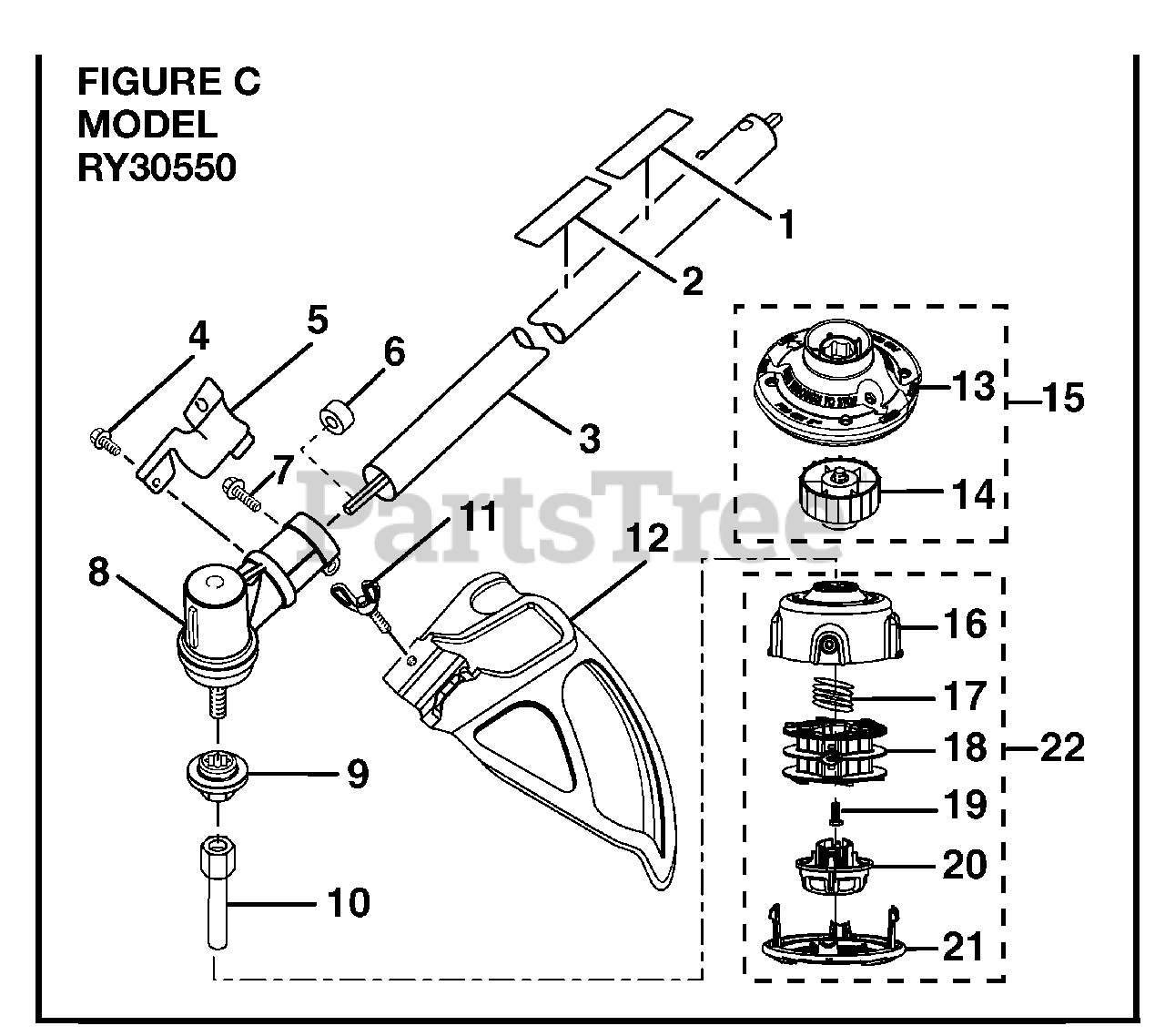

Figure C Parts Diagram

  • Title

1

Homelite 940627024

Expand-it Label
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940230132

Warning Decal
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 308035011

Straight Shaft Assembly

$13.99

$

Usually ships in 3-7 days

0

4

Homelite 660736001

Screw
(Superseded to 983774003)

Note: (10-24 x 5/8 in.)

$2.49

$

In Stock, Qty 5

0

5

Homelite 638125001

Clamp
(Superseded to PS04420)

$4.99

$

In Stock, only 2 left!

0

6

Homelite 518367001

Spacer

$1.99

$

In Stock, only 3 left!

0

7

Homelite 660642001

Screw
(Superseded to 983381007)

Note: (1/4-20 x 1-1/4 in.)

$2.49

$

In Stock, Qty 5

0

8

Homelite 308210002

Gear Head
(Superseded to 308210009)

$48.99

$

In Stock, only 1 left!

0

9

Homelite 678011002

Flanged Washer

$

$

Not available

10

Homelite 678019001

Arbor

$4.49

$

In Stock, only 1 left!

0

11

Homelite 660886001

Wing Screw

Note: (1/4-20 x 1-1/4 in.)

$1.99

$

In Stock, Qty 5

0

12

Homelite 308473001

Grass Deflector Assembly

$

$

Not available

13

Homelite 308925001

Pro Cut II String Head

$

$

Not available

14

Homelite 308042003

Spool Retainer

Note: (Red)

$7.49

$

In Stock, Qty 5

0

15

Homelite 120950011

Pro Cut II String Head Assembly

$

$

Not available

16

Homelite 518800001

Housing
(Superseded to 308827002)

$15.99

$

Usually ships in 3-7 days

0

17

Homelite 678749001

Spring

$1.99

$

In Stock, Qty 20+

0

18

Homelite 308924001

Spool

$

$

Not available

19

Homelite 660649001

Bolt

Note: (5/16-18 x 1/2 in. LH)

$1.99

$

In Stock, only 1 left!

0

20

Homelite 518803001

Knob

$2.49

$

In Stock, only 1 left!

0

21

Homelite 518804001

Cover

$3.99

$

In Stock, only 2 left!

0

22

Homelite 120950010

Reel Easy String Head Assembly

$

$

Not available
