RY 30530 - Ryobi String Trimmer, 30cc Figure C Parts Diagram

String Trimmer, 30cc

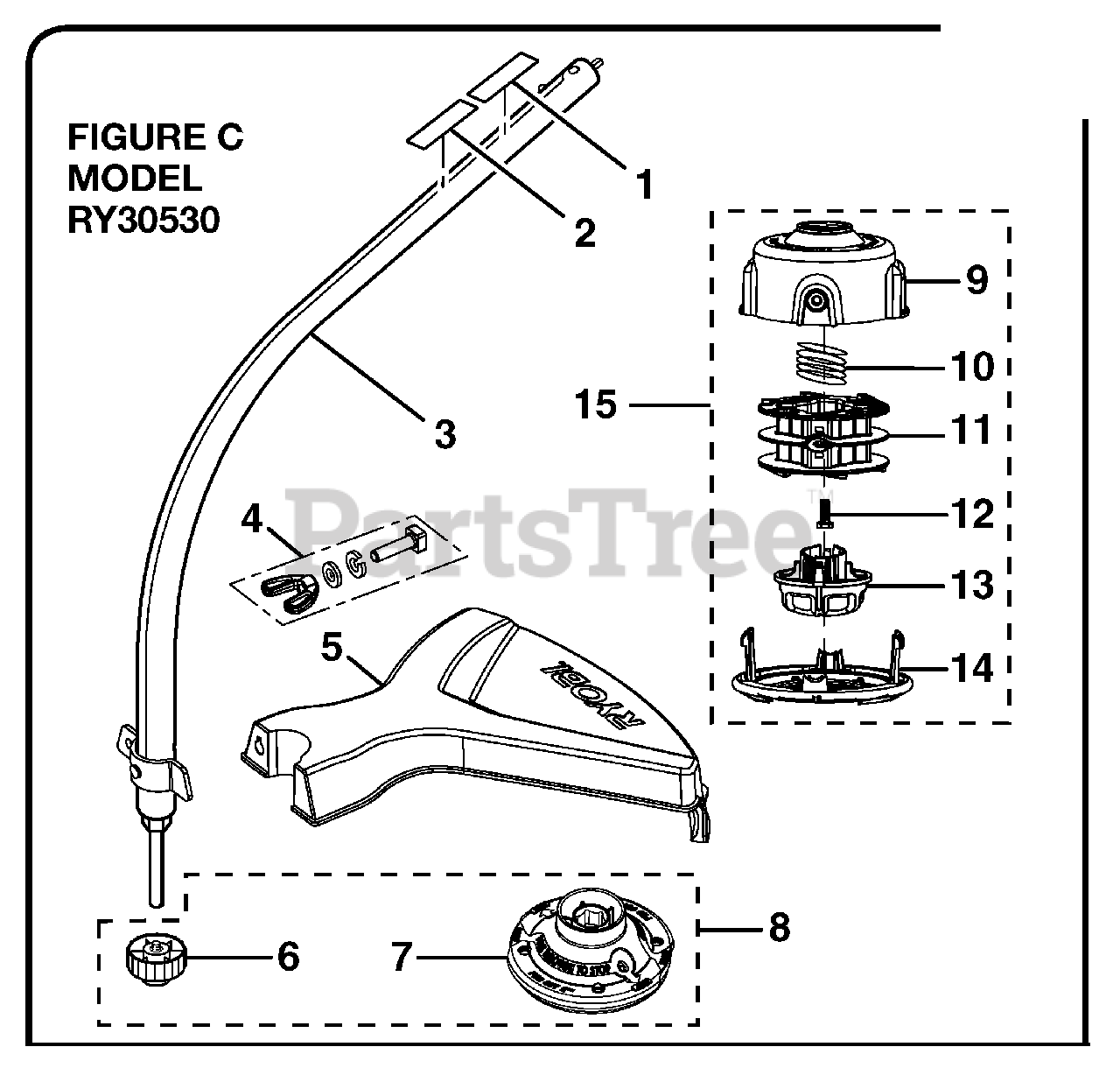

Figure C Parts Diagram

  • Title

1

Homelite 940627024

Expand-it Label
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940230132

Warning Decal
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 308038010

Curved Shaft Assembly

$

$

Not available

4

Homelite 120642001

Fastener Kit
(Superseded to A09361)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 308052001

Grass Deflector
(Superseded to T308744001)

$

$

Not available

6

Homelite 308042002

Spool Retainer

Note: (Black)

$

$

Not available

7

Homelite 308925001

Pro Cut II String Head

$

$

Not available

8

Homelite 120950011

Pro Cut II String Head Assembly

$

$

Not available

9

Homelite 518800001

Housing
(Superseded to 308827002)

$15.99

$

Usually ships in 3-7 days

0

10

Homelite 678749001

Spring

$1.99

$

In Stock, Qty 20+

0

11

Homelite 308924001

Spool

$

$

Not available

12

Homelite 660650001

Bolt

Note: (5/16-18 x 1/2 in.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 518803001

Knob

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 518804001

Cover

$3.99

$

In Stock, only 1 left!

0

15

Homelite 120950010

Reel Easy String Head Assembly

$

$

Not available
